Embedded Fresnel Lens for Smart Home Sensors
| Production Name | Fresnel lens |
| Material | PMMA |
| Focus | 2%@10.6um |
| Dimension Tolerance | +0/-0.2m |
| Center Thickness Tolerance | 0.1mm |
| Centration | 3' |
| Surface Quality | 60/40 |
| Clear Aperture | >90% |

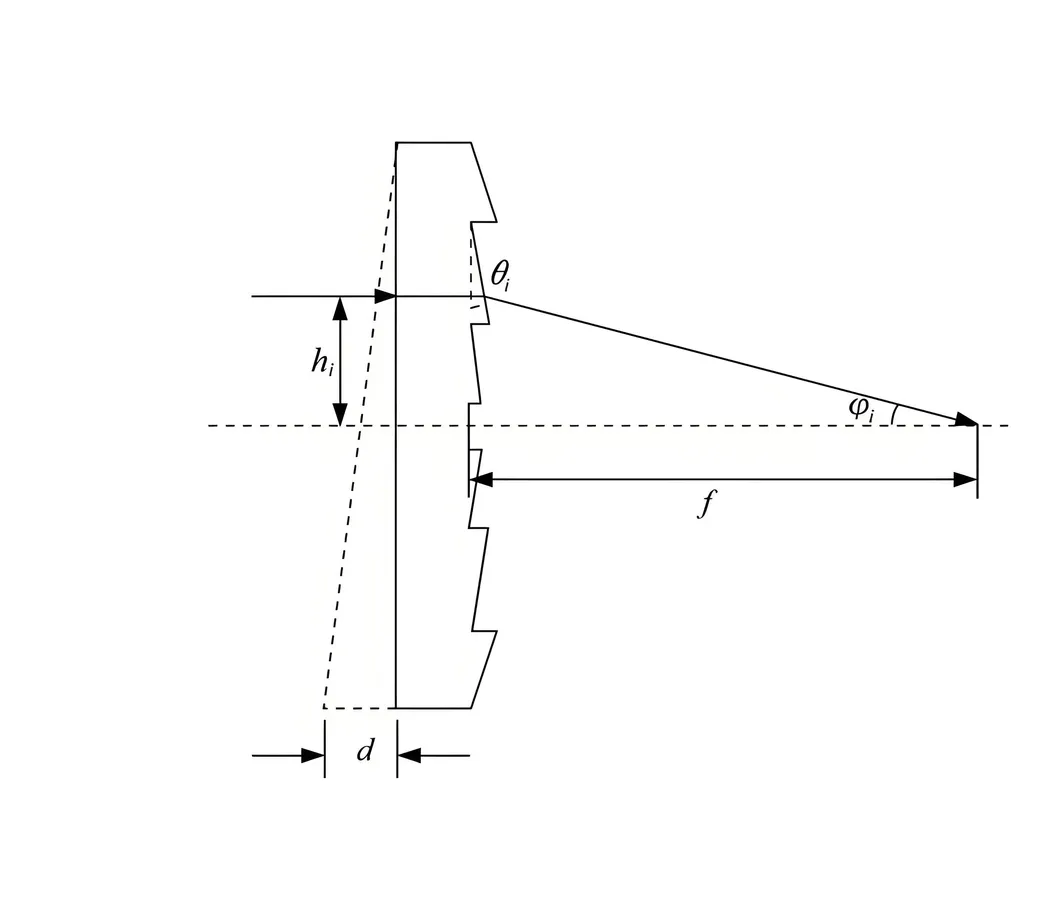

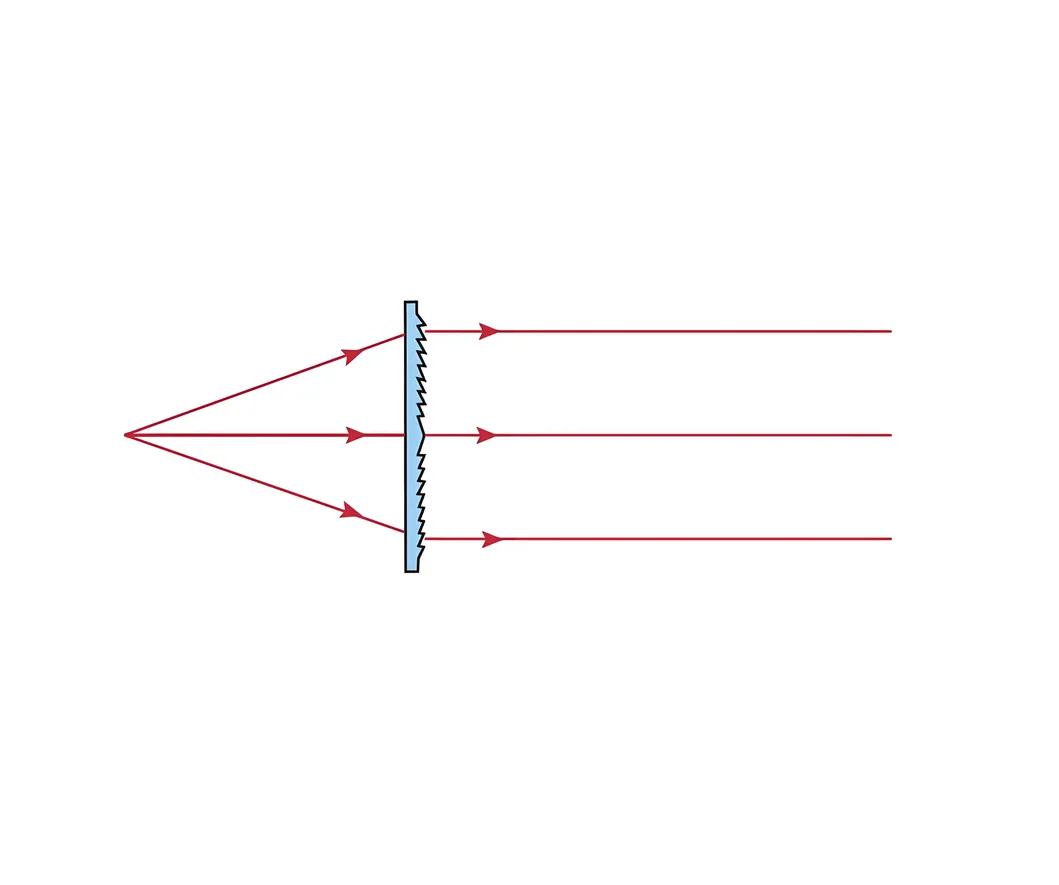

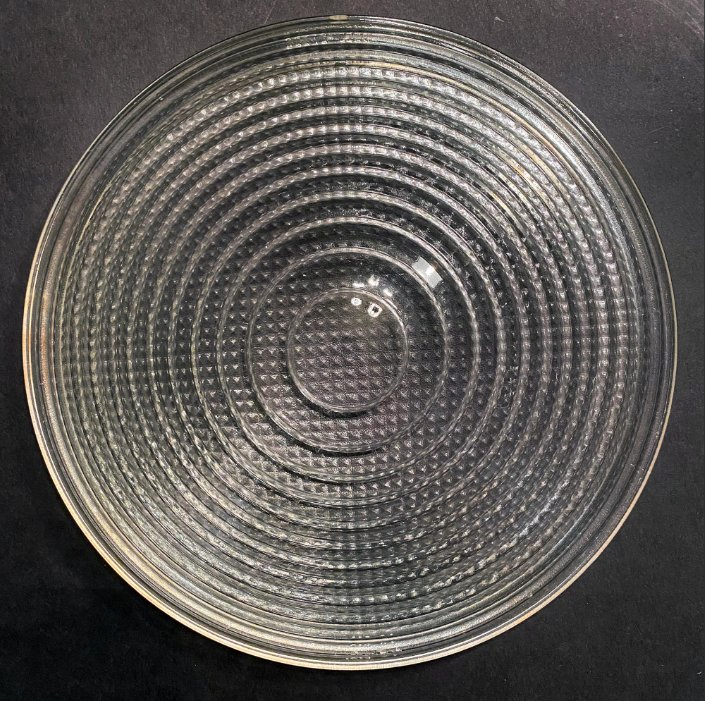

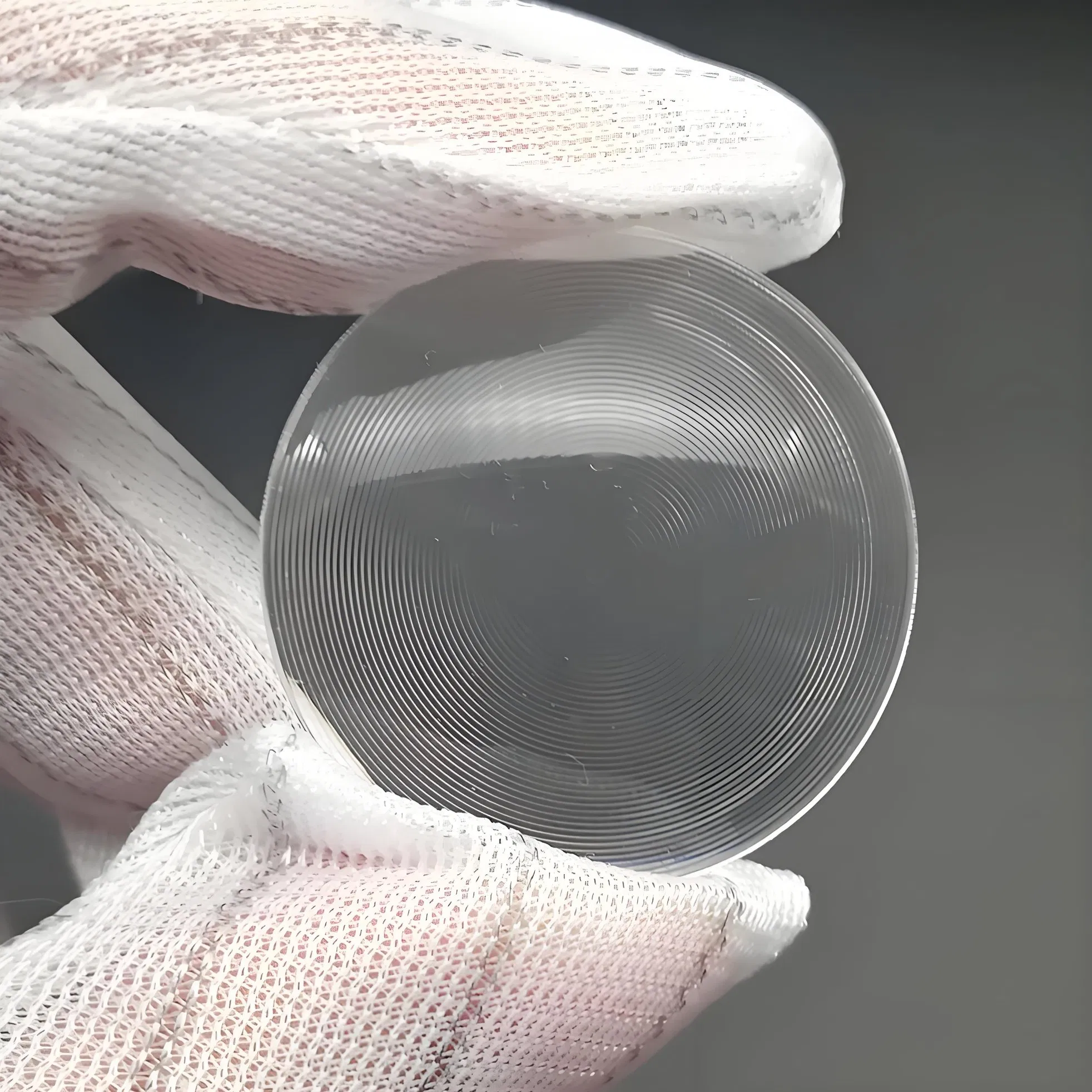

Fresnel lens (Fresnel lens), also known as threaded lens, is mostly a thin sheet made of polyolefin material. The surface of the lens is smooth on one side, and the other side is engraved with concentric circles from small to large. Its texture is designed according to the requirements of relative sensitivity and receiving angle by utilizing the interference of light. A high-quality lens features large area, thin thickness (mostly around 1mm), and long detection distance. It is much more cost-effective than ordinary convex lenses for applications such as slide projectors, infrared detectors, and sensors.
The production team consists of technical experts with years of industry experience, capable of customizing various optical components based on detailed requirements, drawings, or samples. The manufacturing process adheres to ISO9001 quality systems using advanced production and testing equipment to ensure precision for both small batch and mass production needs.
Frequently Asked Questions
1. What materials are used for these Fresnel lenses?
The lenses are primarily manufactured using high-quality PMMA (Acrylic) or polyolefin materials, and can also be produced in glass depending on the application.
2. What is the light transmittance of the Fresnel lens?
The lenses offer a high transmittance rate between 90% and 95%, ensuring excellent optical performance.
3. Can the lenses be customized to specific dimensions?
Yes, we provide full customization for diameter (ranging from 2-250mm), focal length, and coating based on your specific drawings or samples.
4. What is the minimum order quantity (MOQ)?
The minimum order quantity is 1 unit, catering to both prototyping and mass production needs.
5. What is the typical lead time for orders?
Stock products are typically dispatched within 5 days. For custom orders, the lead time depends on the quantity and technical specifications.
6. Do you offer a warranty on your optical products?
Yes, we provide a quality guarantee. If any quality issues arise, we offer timely solutions including reworking or providing replacements at our cost.
