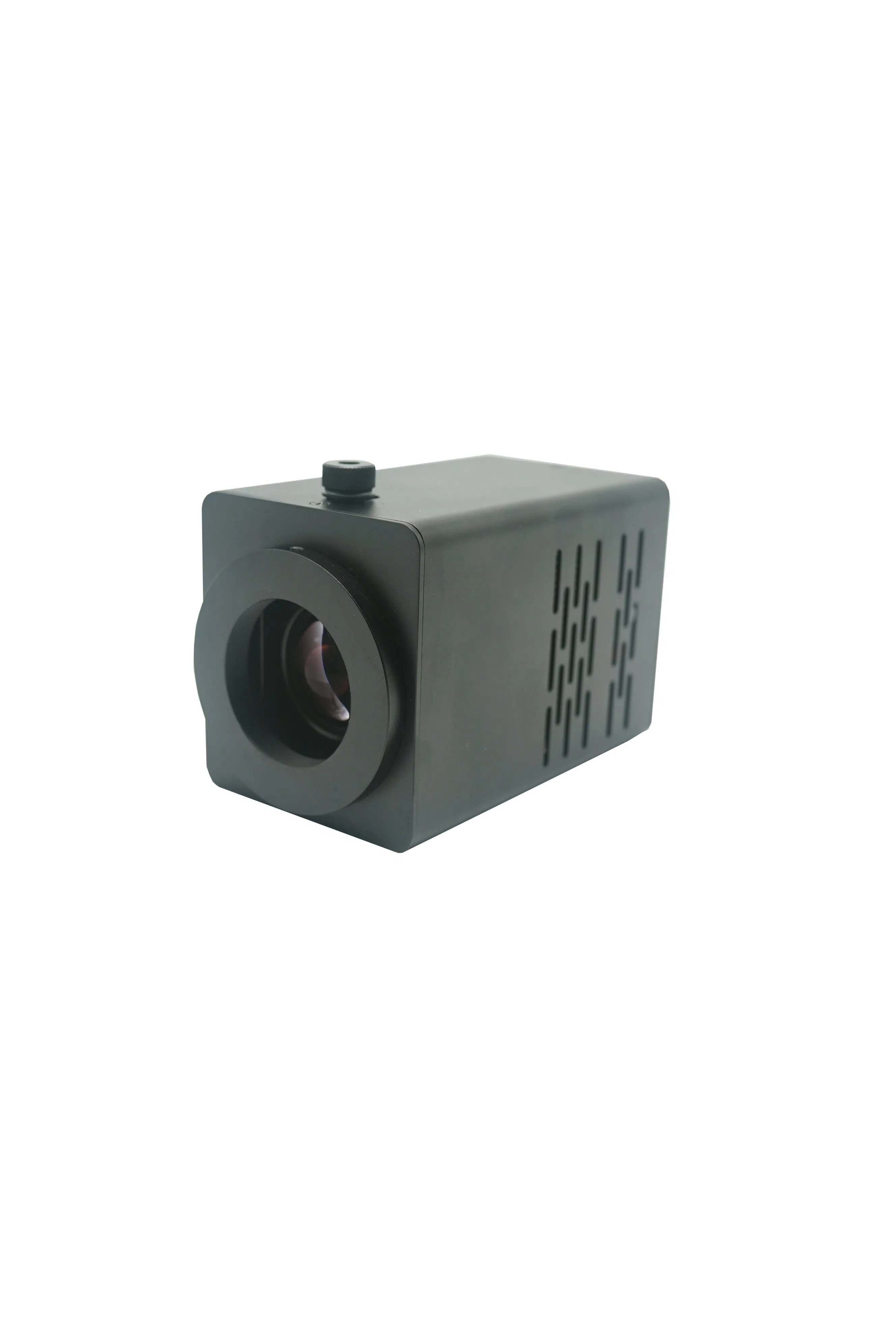

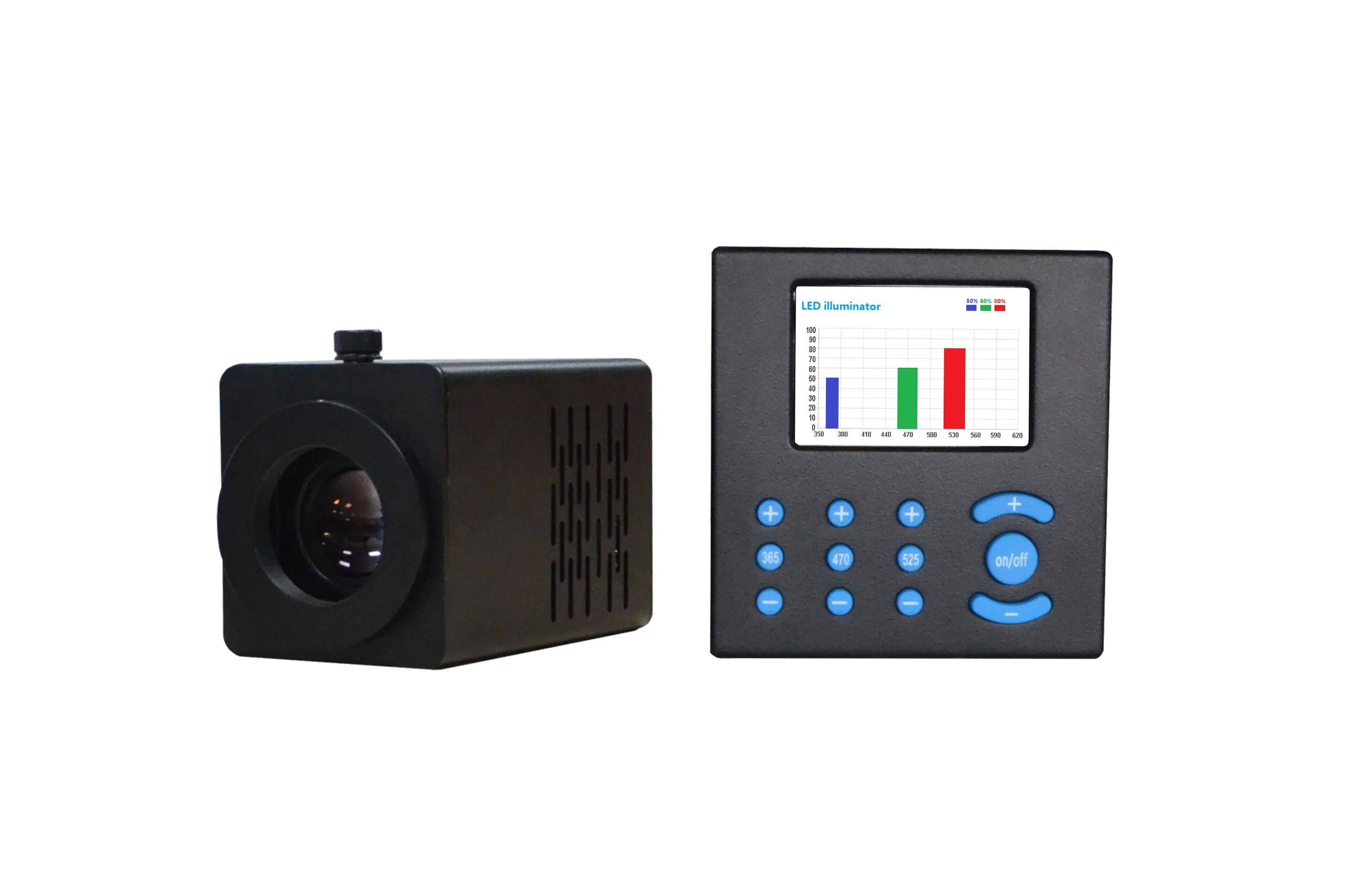

Biological Microscope LED Fluorescence Lighting Unit
Biological Microscope LED Fluorescence Lighting Unit
Biological Microscope LED Fluorescence Lighting Unit
Biological Microscope LED Fluorescence Lighting Unit
Biological Microscope LED Fluorescence Lighting Unit
1 / 5
Biological Microscope LED Fluorescence Lighting Unit
Biological Microscope LED Fluorescence Lighting Unit
Biological Microscope LED Fluorescence Lighting Unit
Biological Microscope LED Fluorescence Lighting Unit
Biological Microscope LED Fluorescence Lighting Unit

Biological Microscope LED Fluorescence Lighting Unit

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
IS3P
Structure
Desktop
Material
Aluminum
Certification
CE
Application
School, Hospital, Lab
Size
142×95×85mm
Weight
6kg
Channel
3-9
Wavelengths
360-1100nm
Screen Size
7 Inch
LED Life Time
20,000 hours
Product Description
Fluorescent Microscopy Light Source

Revolutionize your microscopy with advanced LED illumination technology. This unit is designed to be compatible with Nikon, Olympus, and Zeiss systems, providing a powerful and efficient alternative to traditional arc lamps.

Biological Microscope LED Fluorescence Lighting Unit
Key Features
  • Exceeds the brightness of standard 100W lamps
  • Cool light output protects sensitive samples
  • Instant ON/OFF - No warm-up or cool-down required
  • Adjustable light output (0 - 100%)
  • Easy installation and maintenance-free operation
  • Utilizes heat absorbing filters from Schott for optimal performance
  • Compatible with filter blocks optimized for various wavelengths
  • Seamless integration with computer control (RS-232)
Product Parameters
Parameter Specification

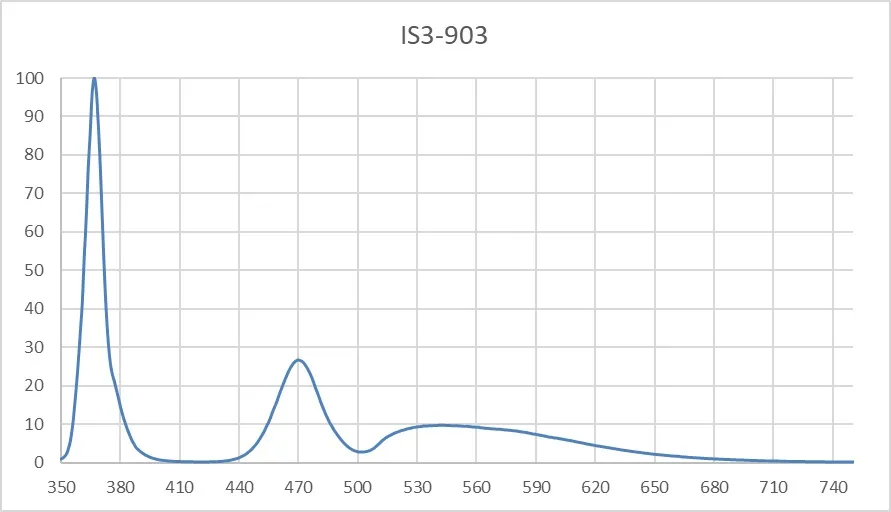

Wavelength Range330-780nm (450-490; 510-575; 330-380 nm)
External Power SupplyUniversal input 110-240V, 50/60Hz
Power ConsumptionMax 50W (Standby 0.5W)
Cooling SystemPassive cooling system with fan
MaterialAnodized aluminium
LED Life Time20,000+ hours
Response Time1ms (LED ON/OFF)
Control MethodRS-232 / Manual
Dimensions (Lamp)122×95×85mm

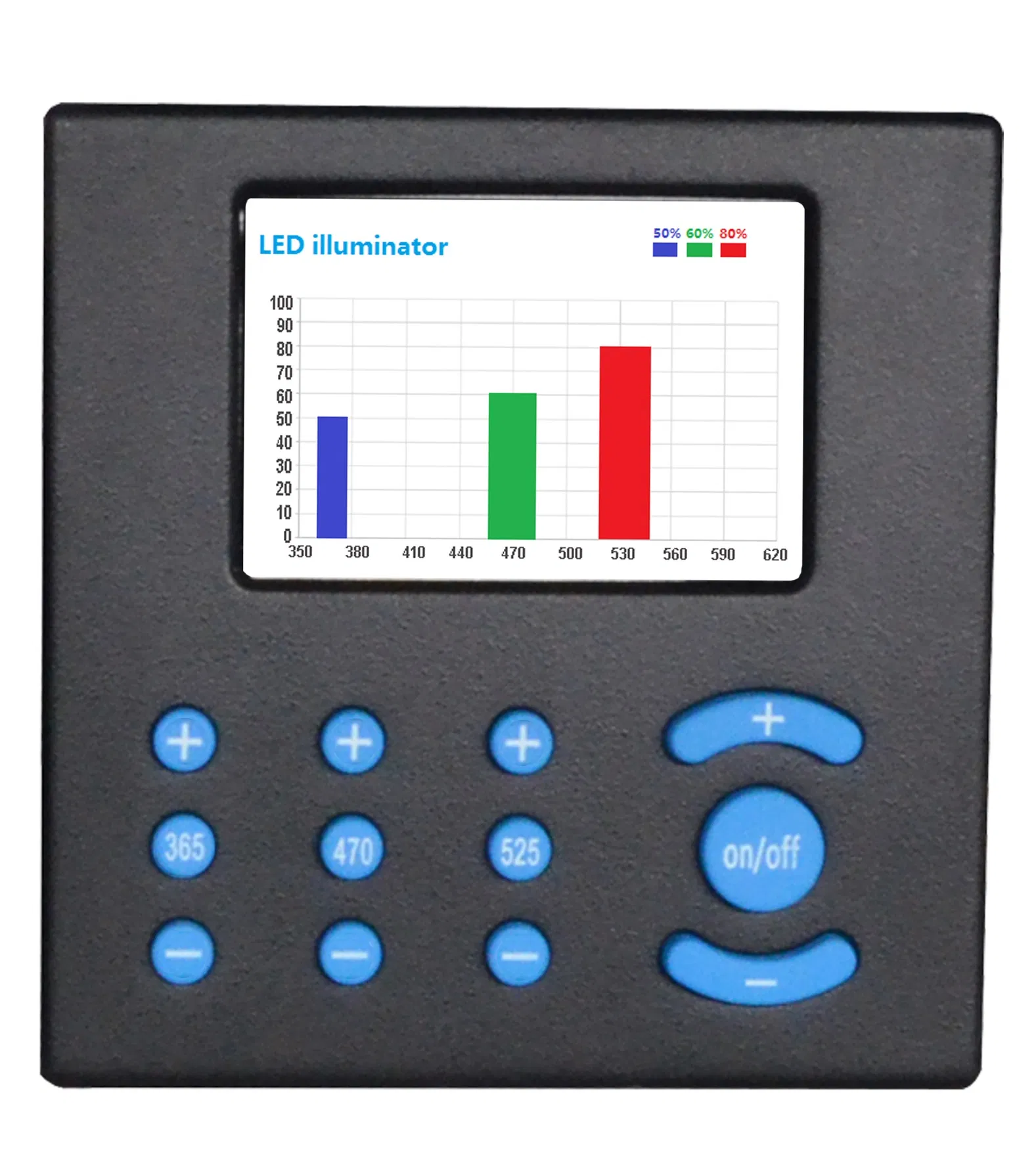

Dimensions (Touch Pad)130×126×20mm
Performance Benefits
  • Long-lasting: LED illumination lasts 20,000 to 50,000 hours, eliminating frequent bulb replacements.
  • Cost-Effective: Reduced energy consumption and zero maintenance costs compared to arc bulbs.
  • Superior Quality: Experience high image quality and reduced quenching of fluorescent dyes.
  • Efficiency: Instant start allows for immediate data collection and digital documentation.
Detailed Photos

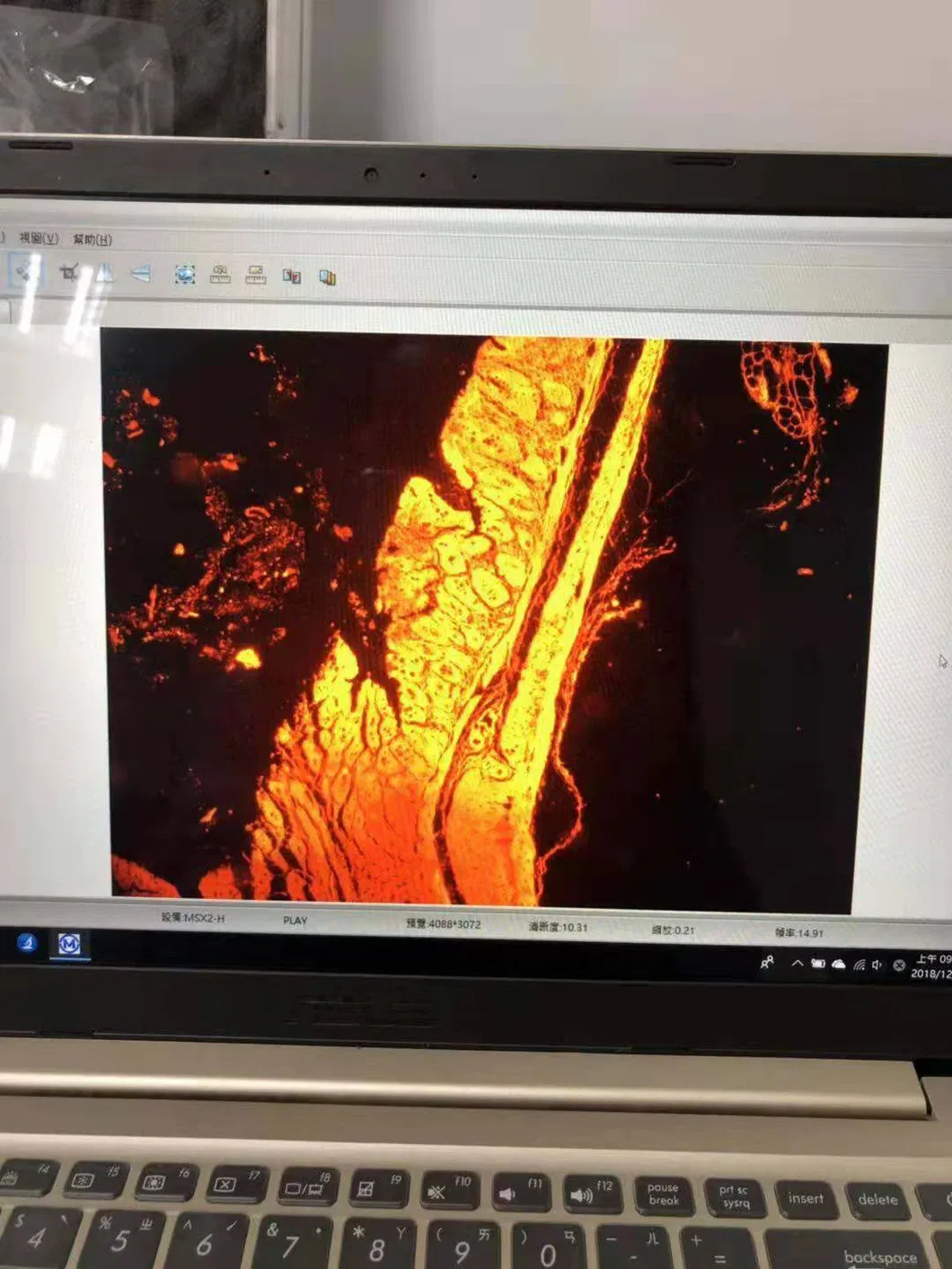

Microscope Detail 1
Microscope Detail 2

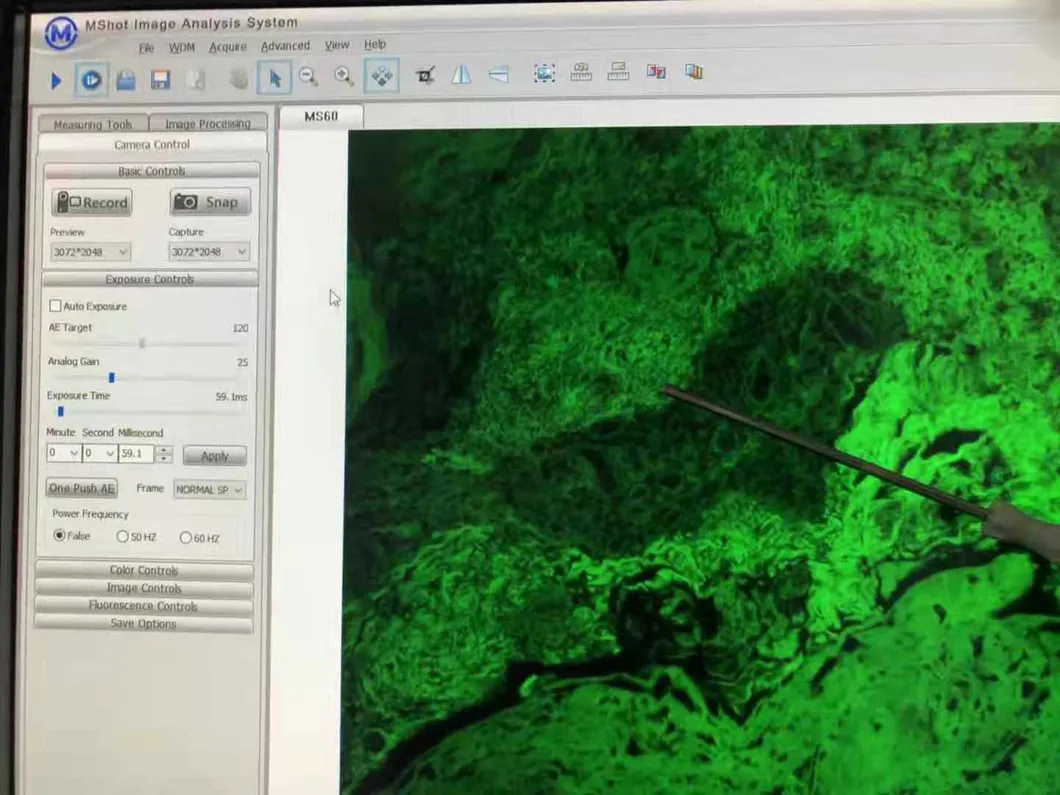

Microscope Detail 3
Microscope Detail 4
Microscope Detail 5
Microscope Detail 6

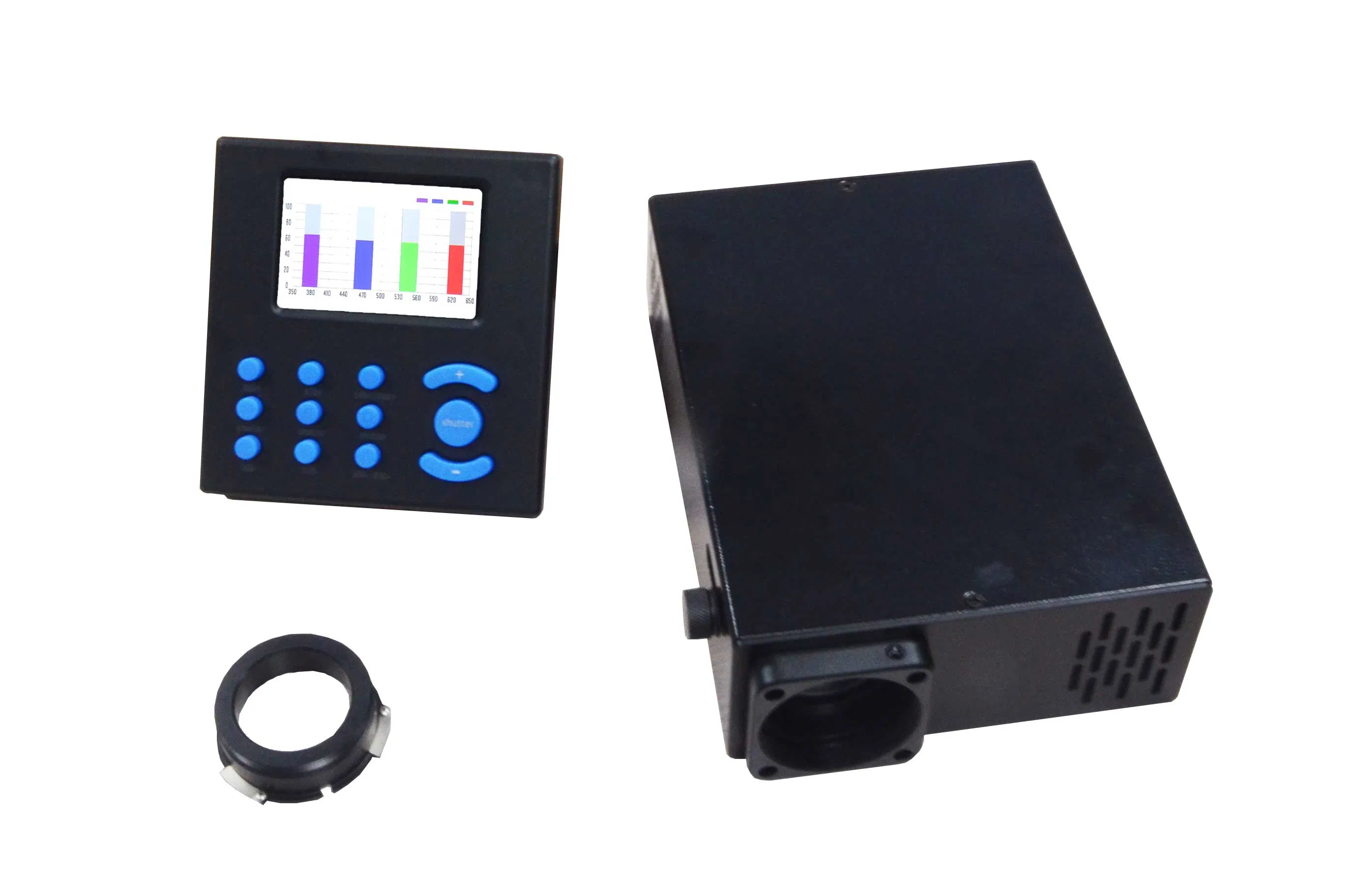

Component View

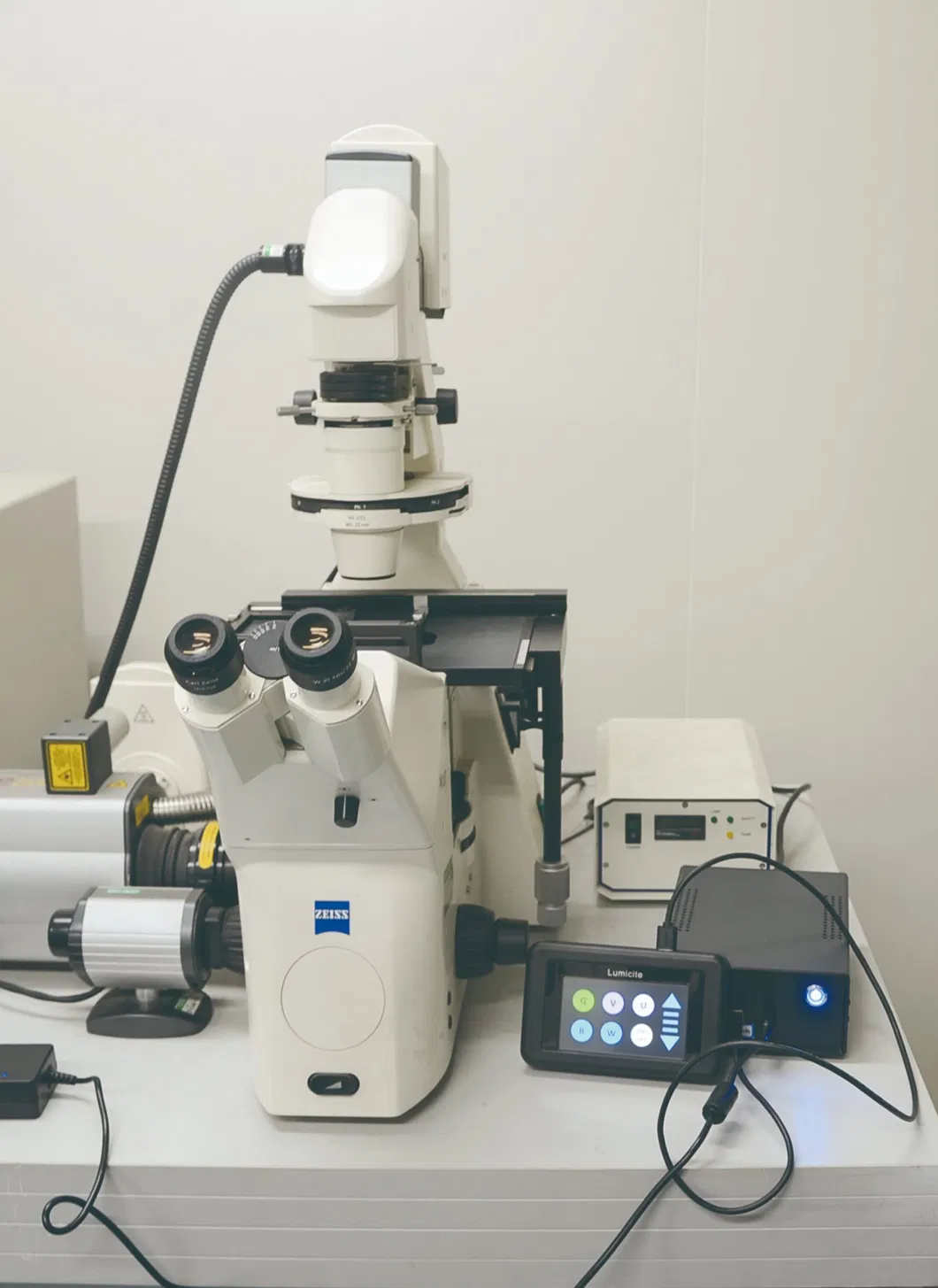

Detailed Component 1
Detailed Component 2

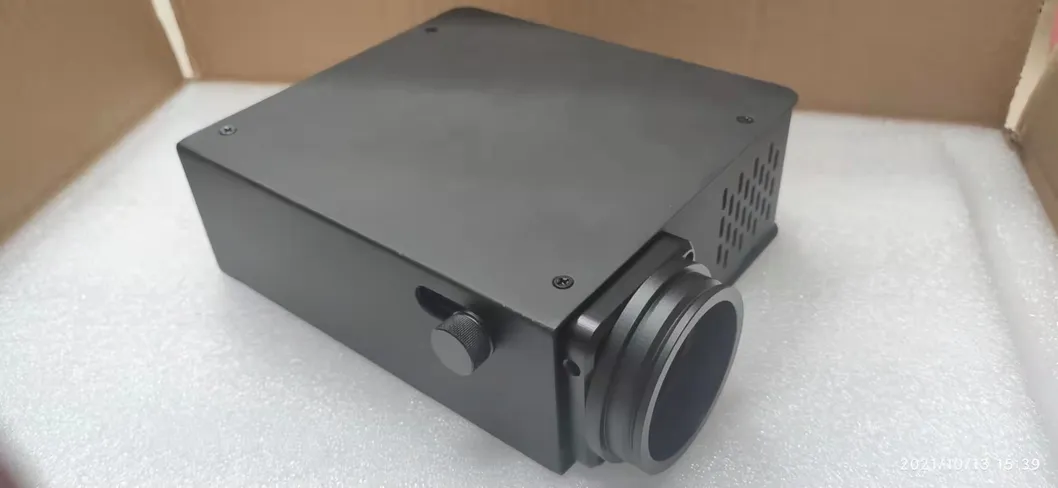

Detailed Component 3
Frequently Asked Questions
How long does the LED light source last?
The LED illumination system is designed for longevity, providing over 20,000 to 50,000 hours of stable performance, which significantly exceeds traditional mercury lamps.
Is there any warm-up time required before use?
No, one of the primary benefits of this LED system is the instant ON/OFF capability. You can begin your observations immediately without any warm-up or cool-down cycles.
Which microscope brands are compatible with this illuminator?
The light source is designed to be compatible with major professional brands, including Nikon, Olympus, and Zeiss fluorescent microscopes.
How many color channels can the device support?
The system is highly versatile and can support a maximum of 9 channels in a single device, allowing for multi-wavelength fluorescence studies.
Can the brightness be adjusted?
Yes, the brightness can be continuously adjusted from 0% to 100%. This helps in reducing the "fading" of fluorescent dyes and managing sample temperature.
What kind of cooling system does the unit use?
The unit features a specialized passive cooling system equipped with a fan to ensure the aluminum housing remains at a safe operating temperature during extended use.
