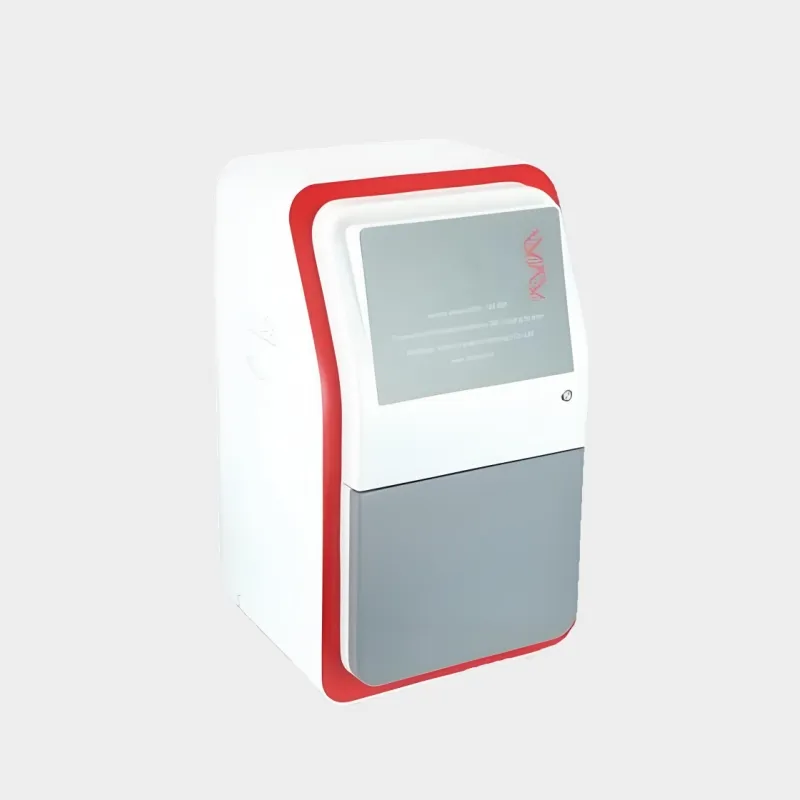

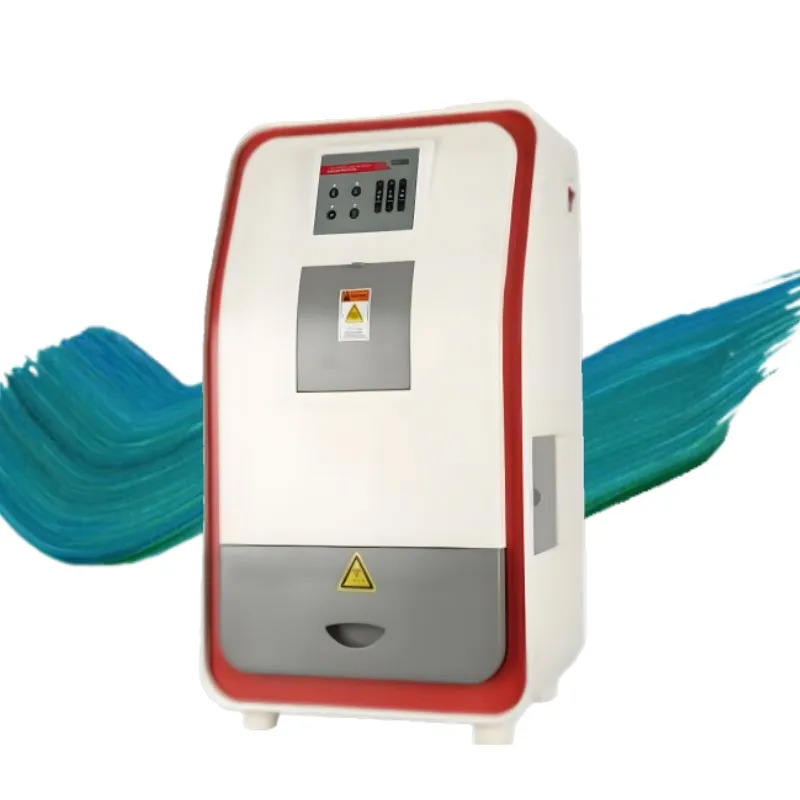

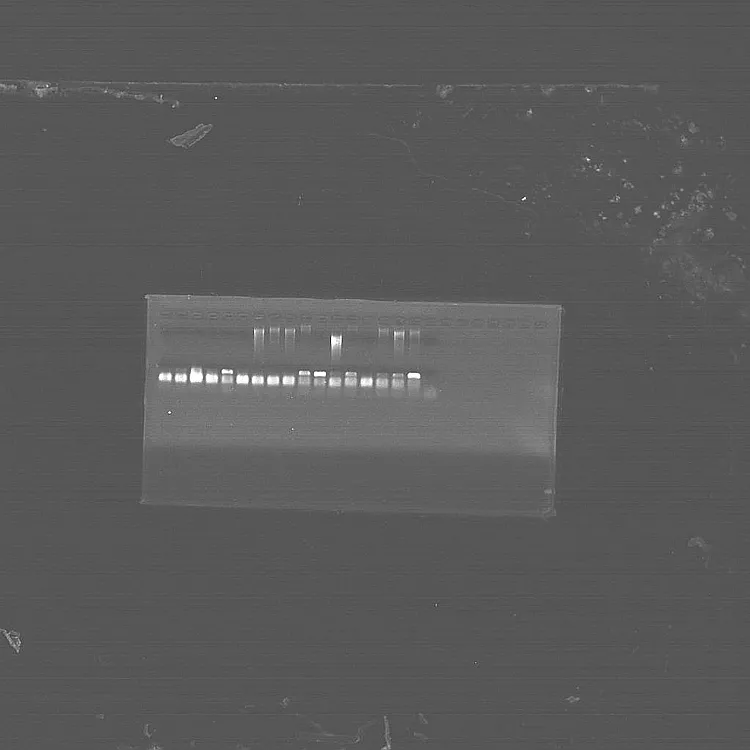

The AY-K3900 is a full-automatic multi-function imaging system integrating gel imaging, chemiluminescence and bioluminescence imaging. Equipped with a white light transmission plate, it is specifically designed for the detection and analysis of digital images of protein and DNA samples in gel and membrane environments.

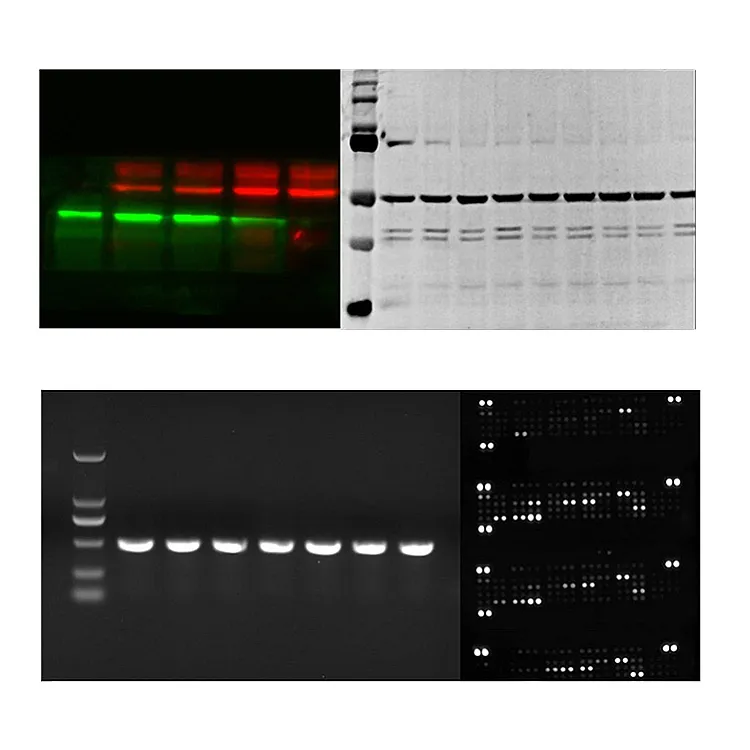

The system features a deep-cooling CCD to eliminate background noise and an ultra-large aperture lens (F/0.95 or optional F/0.8) to collect weak signals. It supports a wide range of detection including ultraviolet, red, green, blue fluorescence and white light imaging.
| CCD Chips | Sony ICX695, 4/3 inch, 2750*2200 (6.05 million pixels) |
| Dynamic Range | 4.8OD, 16bit grey scales (0-65535) |
| Pixel Size | 5.4um * 5.4um |
| Pixel Binning | 1*1, 2*2, 3*3, 4*4, 6*6, 8*8 |
| Cooling Temp | -45ºC absolute |
| Quantum Efficiency | QE: >75% |
| Lens | F/0.95 |
| Light Source | 300nm Trans UV, 254nm/365nm reflection UV |
| Transmission Area | UV 200*200mm |
| Sensitivity | Mini 0.01ng EB chromosome DNA |
| Dark Current | <0.0005e-/pixel/sec |
| Filter Wheel | 5 position, Standard F590/535/605/699nm |
