Portable LED Fluorescence Biological Microscope Trinocular Fluorescent Microscope
Portable LED Fluorescence Biological Microscope Trinocular Fluorescent Microscope
Portable LED Fluorescence Biological Microscope Trinocular Fluorescent Microscope
Portable LED Fluorescence Biological Microscope Trinocular Fluorescent Microscope
Portable LED Fluorescence Biological Microscope Trinocular Fluorescent Microscope
1 / 5
Portable LED Fluorescence Biological Microscope Trinocular Fluorescent Microscope
Portable LED Fluorescence Biological Microscope Trinocular Fluorescent Microscope
Portable LED Fluorescence Biological Microscope Trinocular Fluorescent Microscope
Portable LED Fluorescence Biological Microscope Trinocular Fluorescent Microscope
Portable LED Fluorescence Biological Microscope Trinocular Fluorescent Microscope

Portable LED Fluorescence Biological Microscope Trinocular Fluorescent Microscope

Magnification: >1000X
Type: Biological
Number of Cylinder: ≥Three
Send Inquiry

Product Description

Overview

Model NO.
MS-FM2000
Mobility
Desktop
Stereoscopic Effect
Stereoscopic Effect
Light Source
Infrared
Shape
Rectangular Prism
Usage
Research
Principle
Optics (Phase Contrast)
Specification
390*310*640mm
Production Capacity
1000PCS/Year
HS Code
9018193010

Product Description

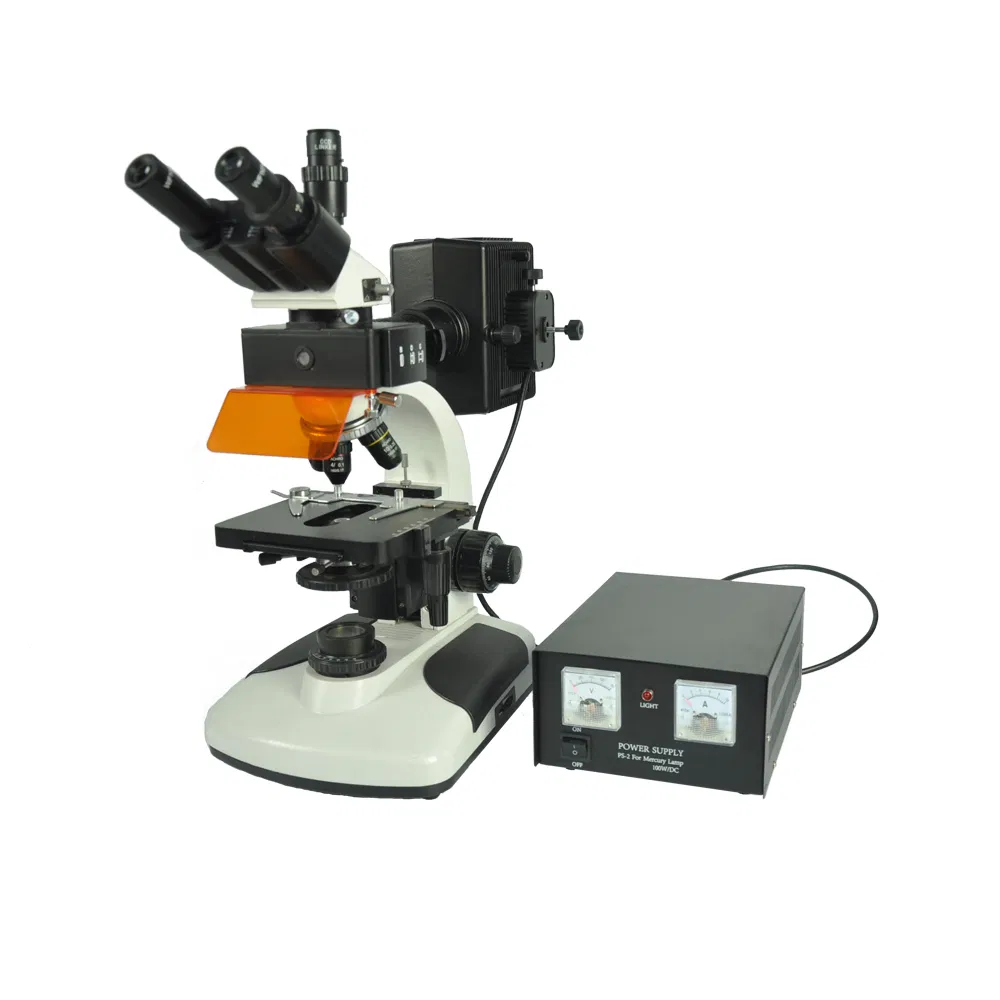

Fluorescence Biological Microscope

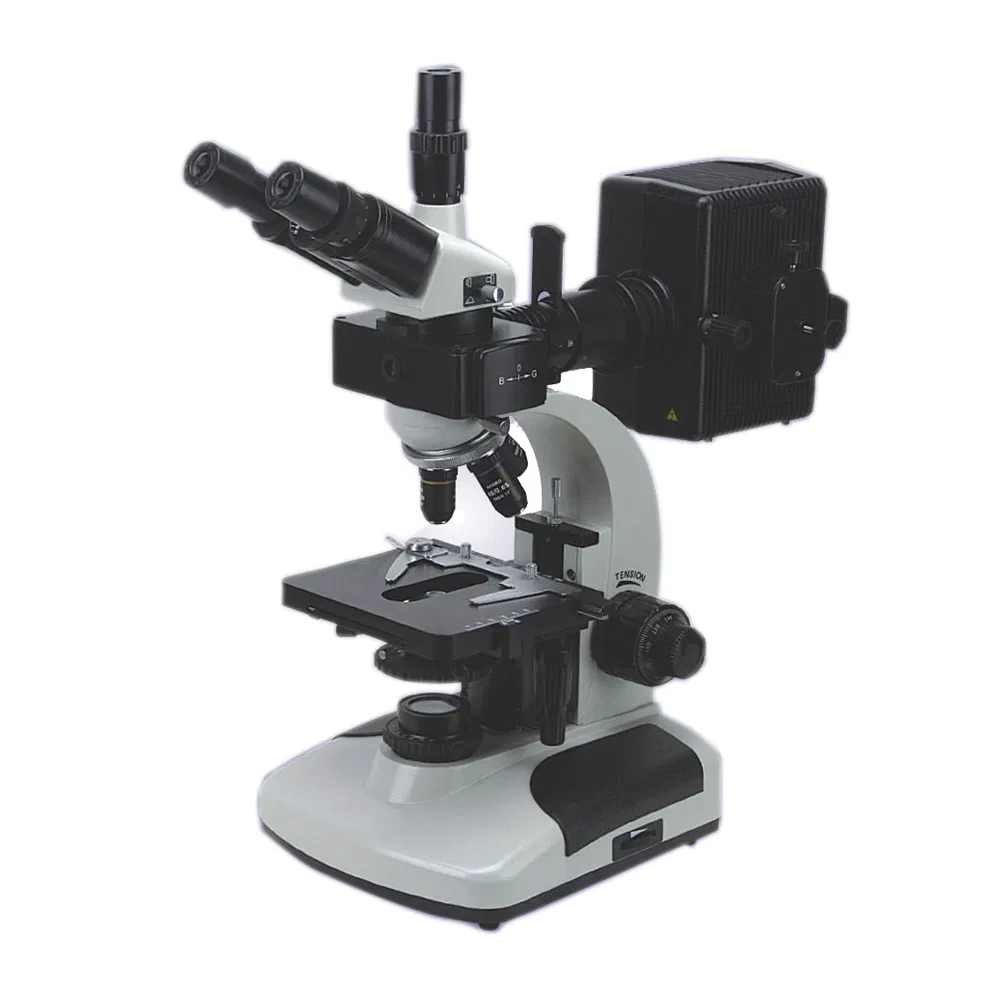

Trinocular Fluorescent Microscope
LED Fluorescence Microscope Detail

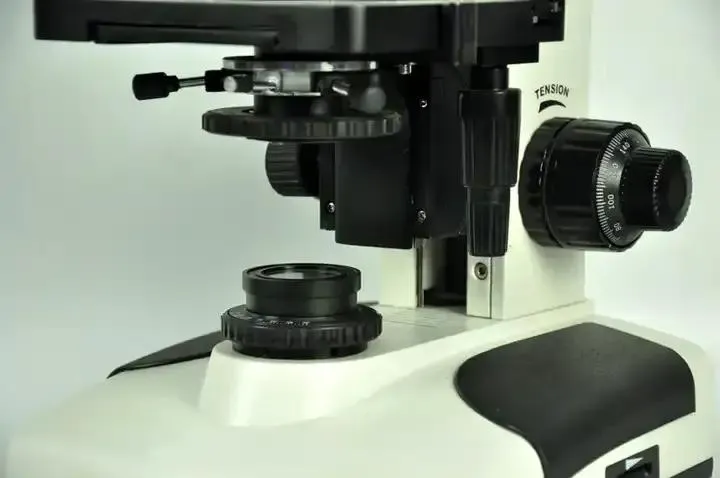

Fluorescent Microscope Components

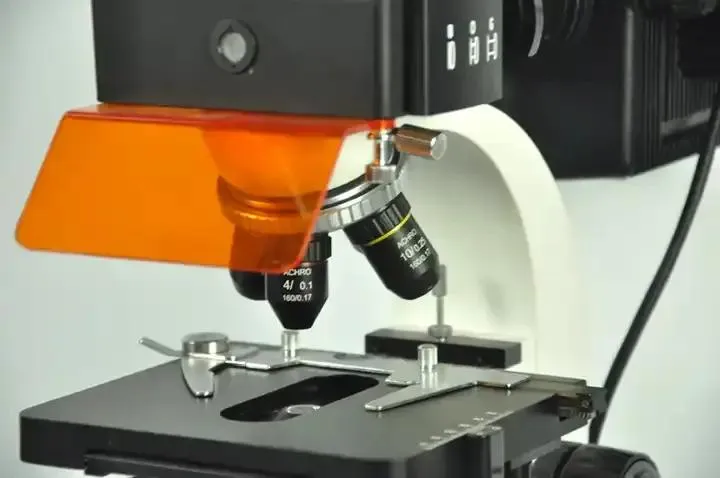

Microscope Observation View

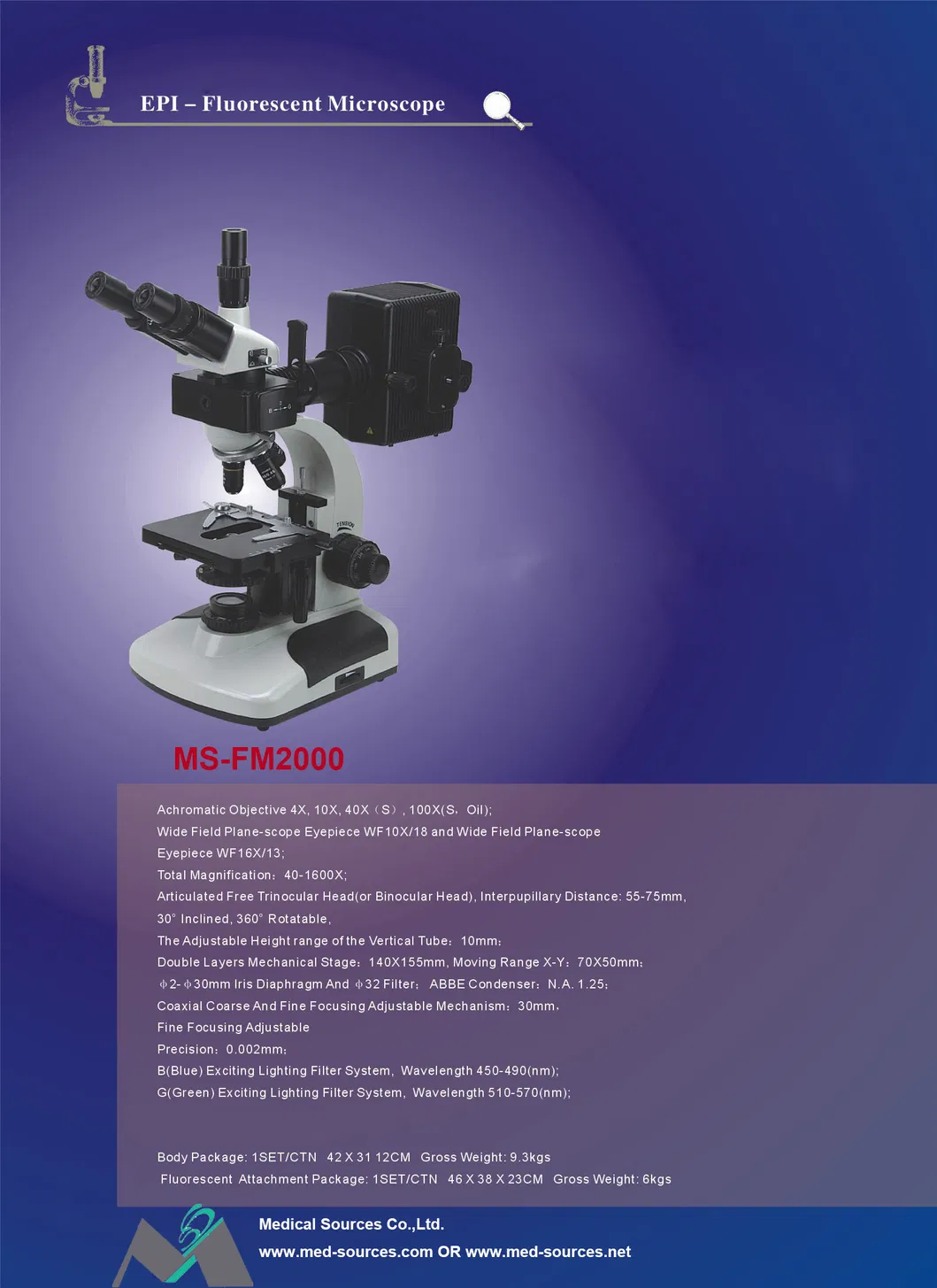

Fluorescent Attachment Details

Product Parameters

Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)
Eyepieces: Wide Field Plane-scope WF10X/18 and WF16X/13
Total Magnification: 40-1600X
Viewing Head: Articulated Free Trinocular, 30° Inclined, 360° Rotatable
Interpupillary Distance: 55-75mm
Mechanical Stage: Double Layers 140X155mm, Moving Range X-Y: 70X50mm
Focusing: Coaxial Coarse and Fine Adjustable Mechanism (Precision 0.002mm)
B(Blue) Exciting Filter: Wavelength 450-490(nm)
G(Green) Exciting Filter: Wavelength 510-570(nm)
Product nameFluorescent Microscope
ApplicationHospital Education Laboratory
EyepieceWF10X/18mm
Objectives4X, 10X, 40X(s), 100X(s, oil)
Viewing HeadArticulated Free Trinocular head

Frequently Asked Questions

What is the maximum magnification of the MS-FM2000?
The microscope offers a total magnification range from 40X up to 1600X, using its high-quality achromatic objectives and wide-field eyepieces.
What types of fluorescent filters are included?
It comes with two exciting lighting filter systems: Blue (B) with a wavelength of 450-490nm and Green (G) with a wavelength of 510-570nm.
Is the viewing head adjustable for comfortable use?
Yes, it features an articulated free trinocular head that is 30° inclined and 360° rotatable, with an adjustable interpupillary distance of 55-75mm.
What are the primary applications for this model?
The MS-FM2000 is designed for research, hospital settings, educational purposes, and professional laboratory environments.
What is the precision of the fine focusing mechanism?
The coaxial coarse and fine focusing mechanism features an extremely high precision of 0.002mm for sharp imaging.
Does it support mechanical specimen movement?
Yes, it is equipped with a double-layer mechanical stage (140x155mm) with an X-Y moving range of 70x50mm for precise slide positioning.
