📋 Basic Specification
Operating Voltage
AC100-277V
LED Chips
Lumileds 5050SMD / CREE 3535

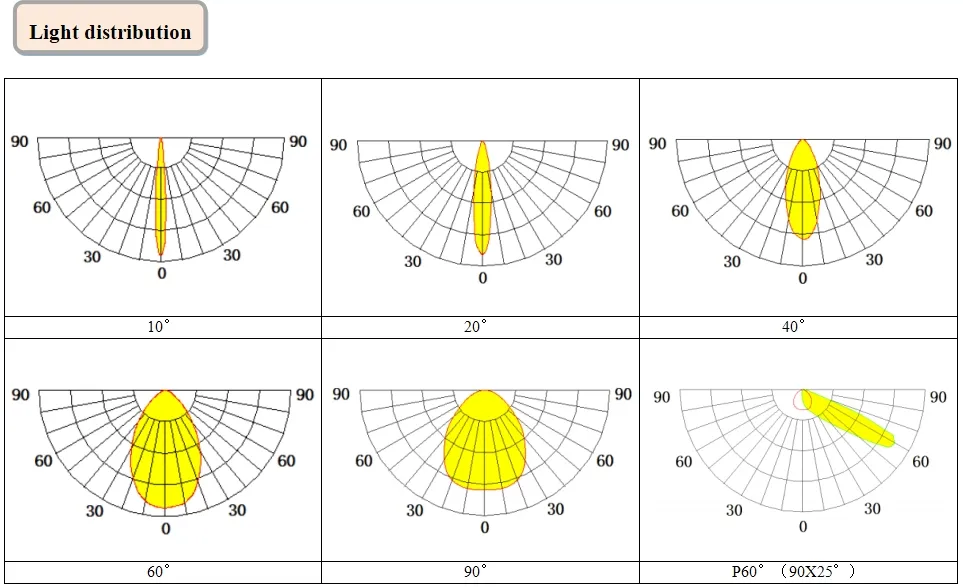

Beam Angle
10°/15°/20°/40°/60°/90°
Certification
CE, RoHS, ETL, FCC, CB, ENEC, SAA
💡 Product Features & Details

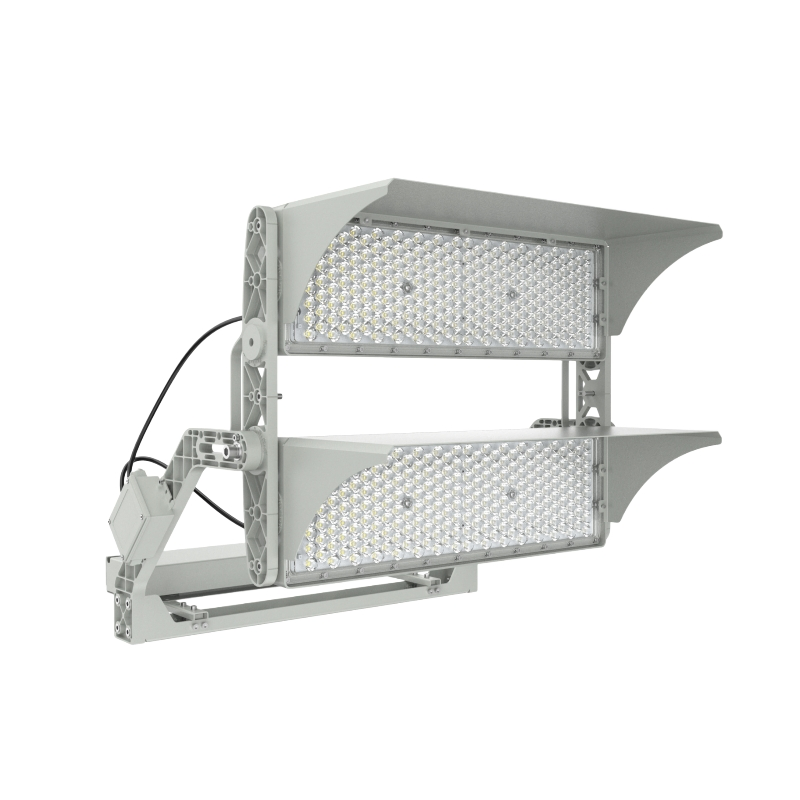

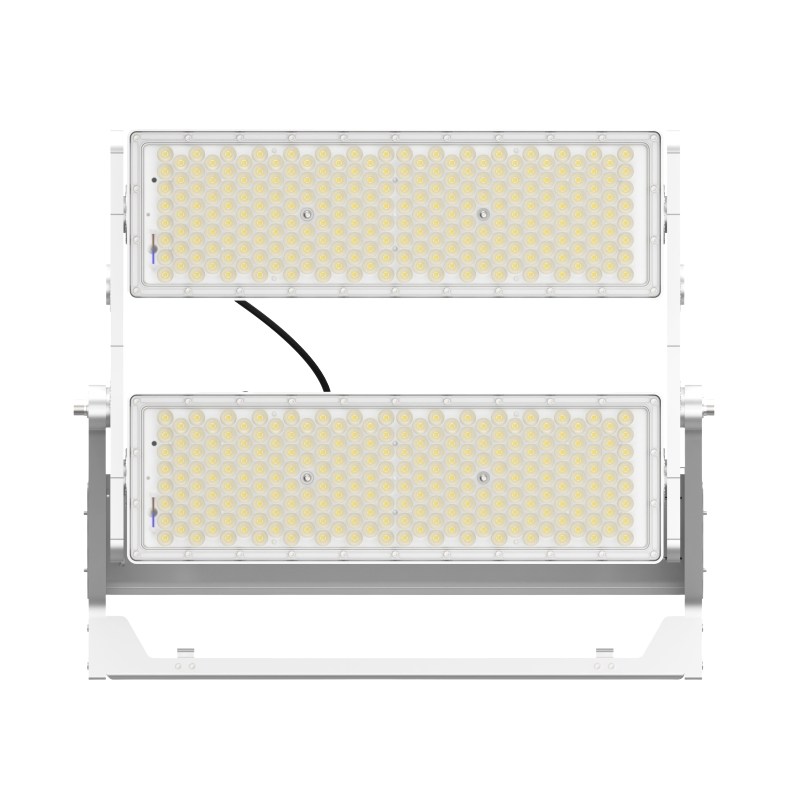

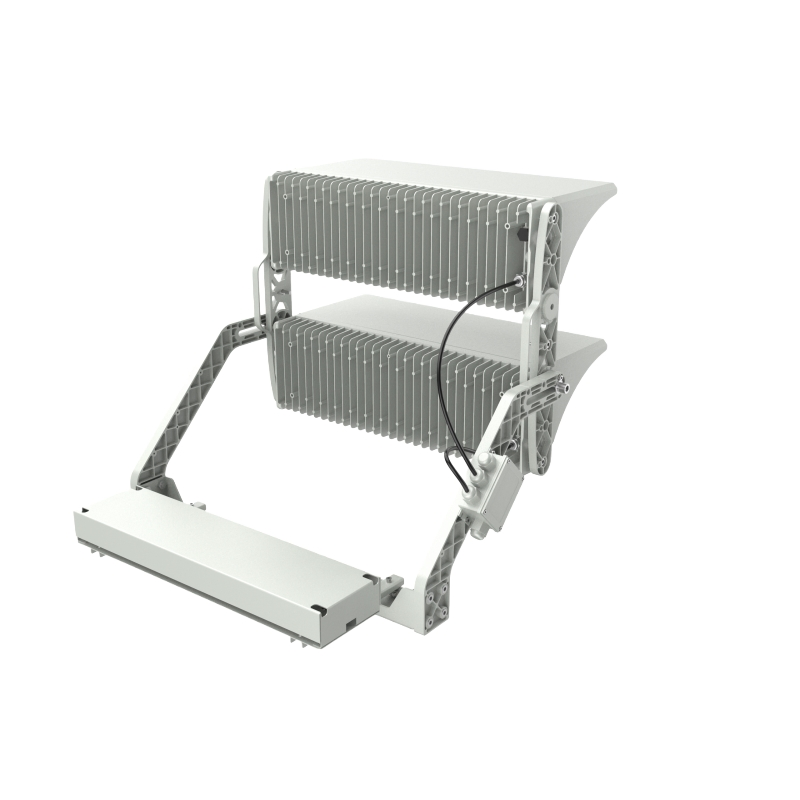

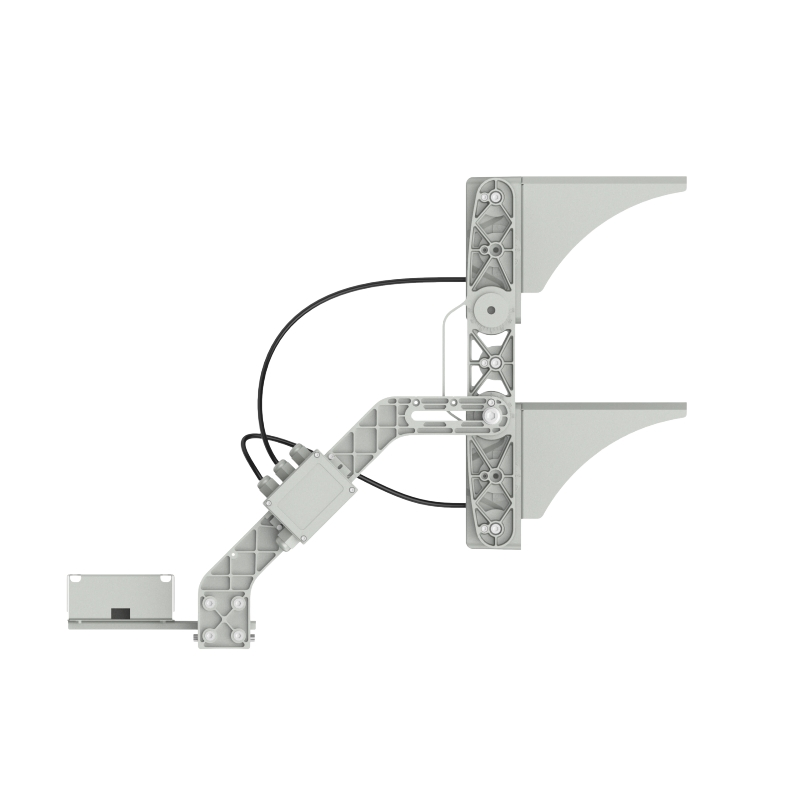

Convenient installation 800W-1200W LED stadium flood lamp

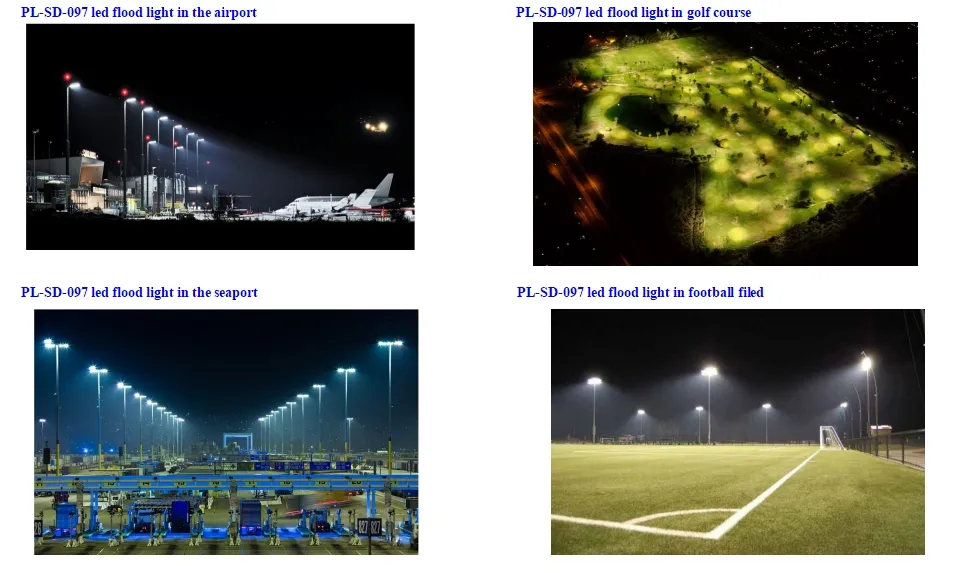

High-performance lighting solution designed for Parks, Squares, Factories, Gardens, and Sports Stadiums.

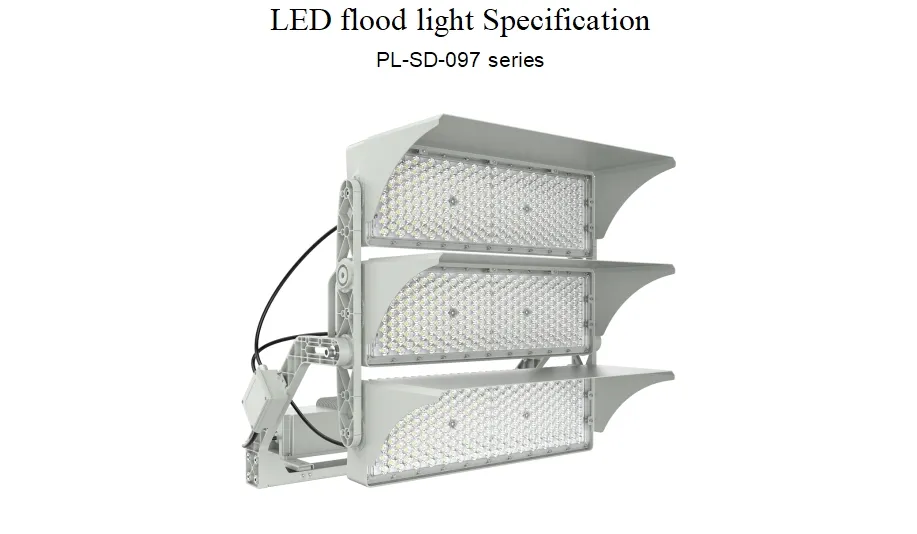

| Model | PL-SD-097 |

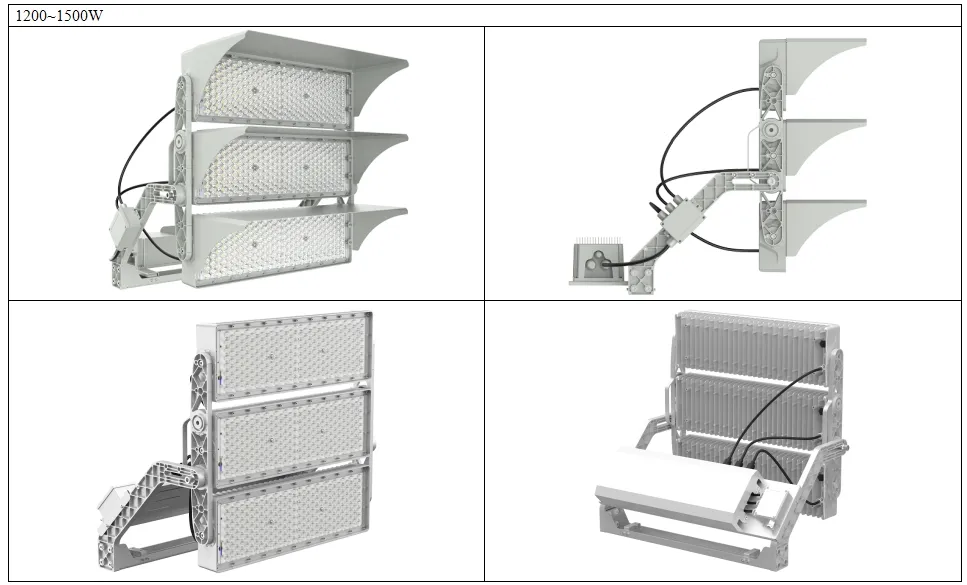

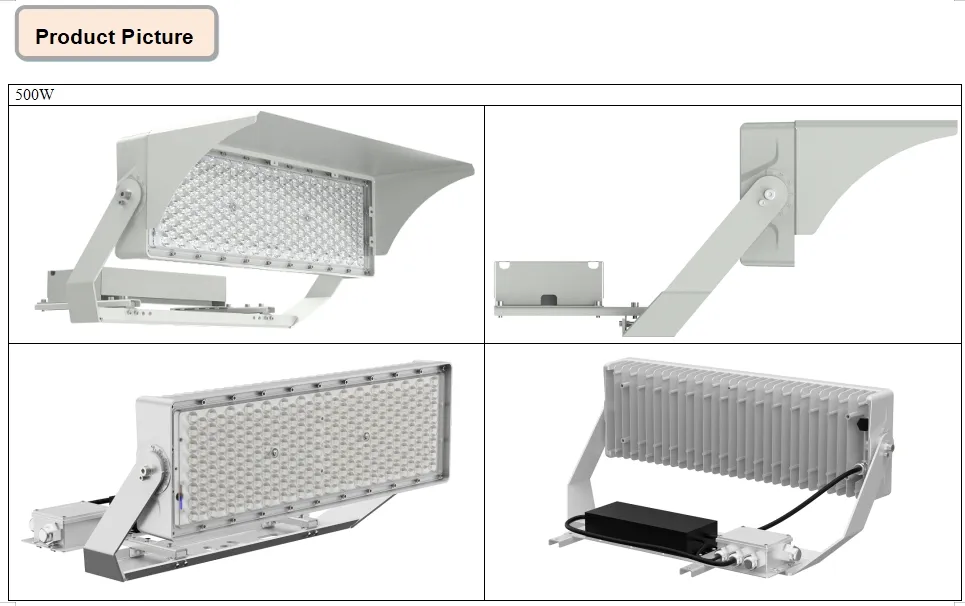

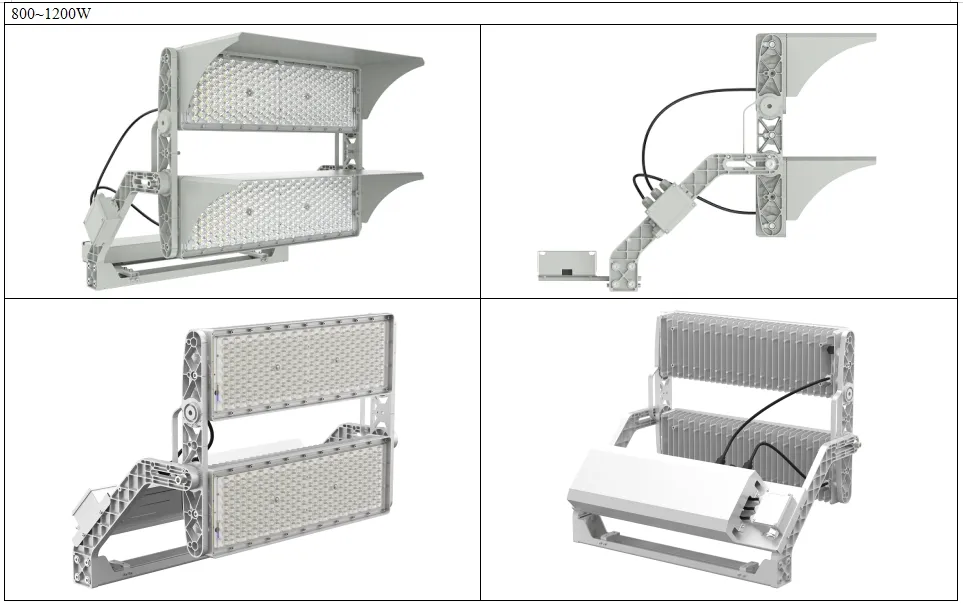

| Power Options | 500W | 800W - 1200W | 1200W - 1500W |

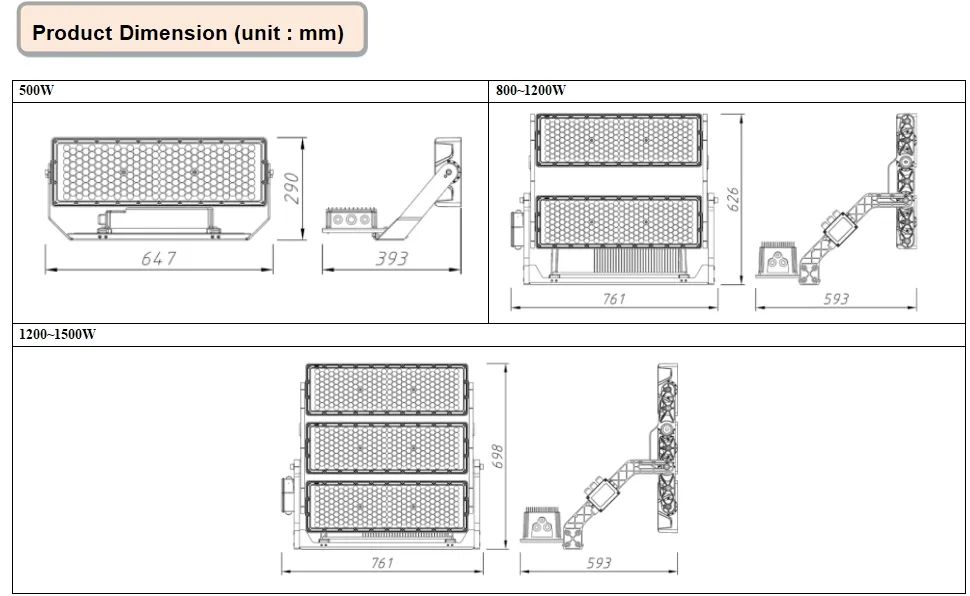

| Dimension (mm) | 647X393X290 | 761X593X626 | 761X593X698 |
| Lumen Efficiency | 160 lm/w (±5%) |
| Color Temperature | 2700K - 6500K |
| CRI | CRI > 70 / 80 |
| Protection | IP67 & IK10 |
| Working Life | > 100,000 hours (L80B10) |
| Control Mode | 0-10V, DMX, DALI |
| Material | Die-cast Aluminum housing & Annular lens |
❓ Frequently Asked Questions
Whether the LED lights really have 50,000 hours lifespan?
50,000 or longer lifespan is theory from lab tests. Due to different working environments, actual lifespan is typically around 30,000 hours, though it can reach 50,000 hours with high-quality materials.
For same power, why do different suppliers have different brightness?
This is due to different LED chips or different brightness versions of the same chip. Also, there is a difference between the raw brightness of the LEDs and the actual output of the lamp fixture.
What is color temperature (CCT)?
CCT is measured in Kelvin (K). Lower color temperatures (warm) are often used in public areas for relaxation, while higher temperatures (cool) are used in offices or stadiums to enhance concentration.
What is CRI?
CRI (Color Rendering Index) measures how accurately a light source reveals the true colors of objects. A higher CRI typically indicates higher quality and cost.
What is PF and efficiency?
PF (Power Factor) and efficiency indicate the electrical performance of the driver. Higher PF and efficiency results in better energy savings but comes with a higher cost.
What control modes are supported?
The system supports professional dimming and control protocols including 0-10V, DMX, and DALI for flexible lighting management.
