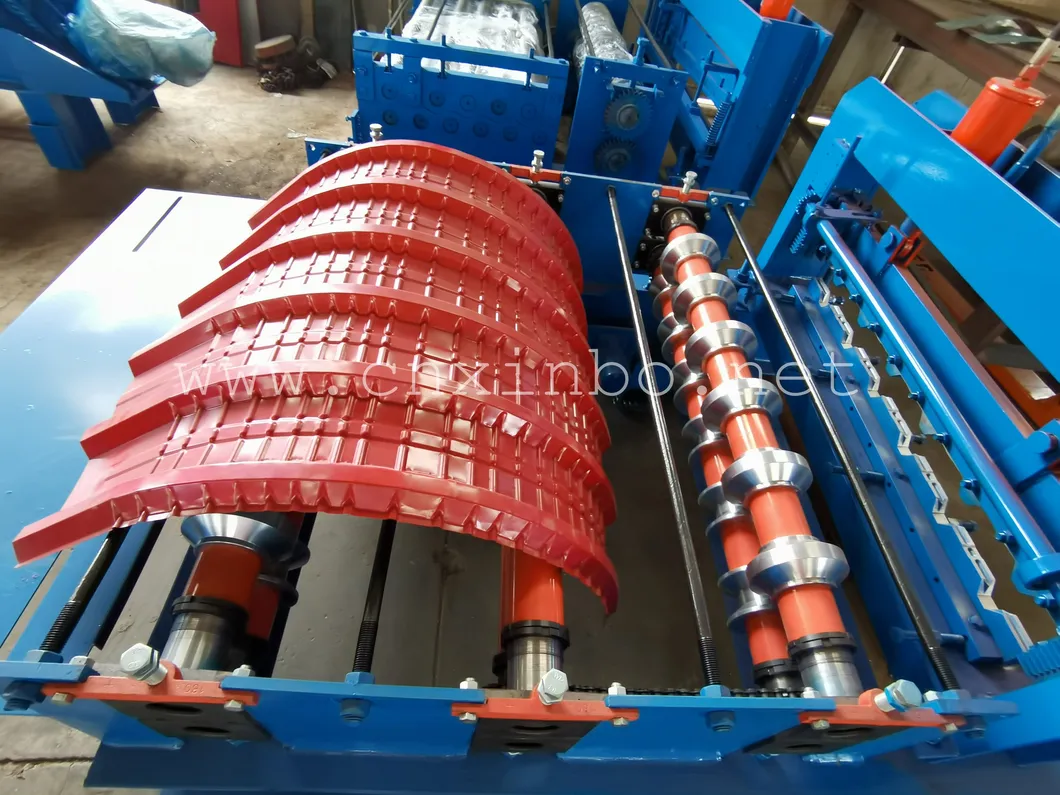

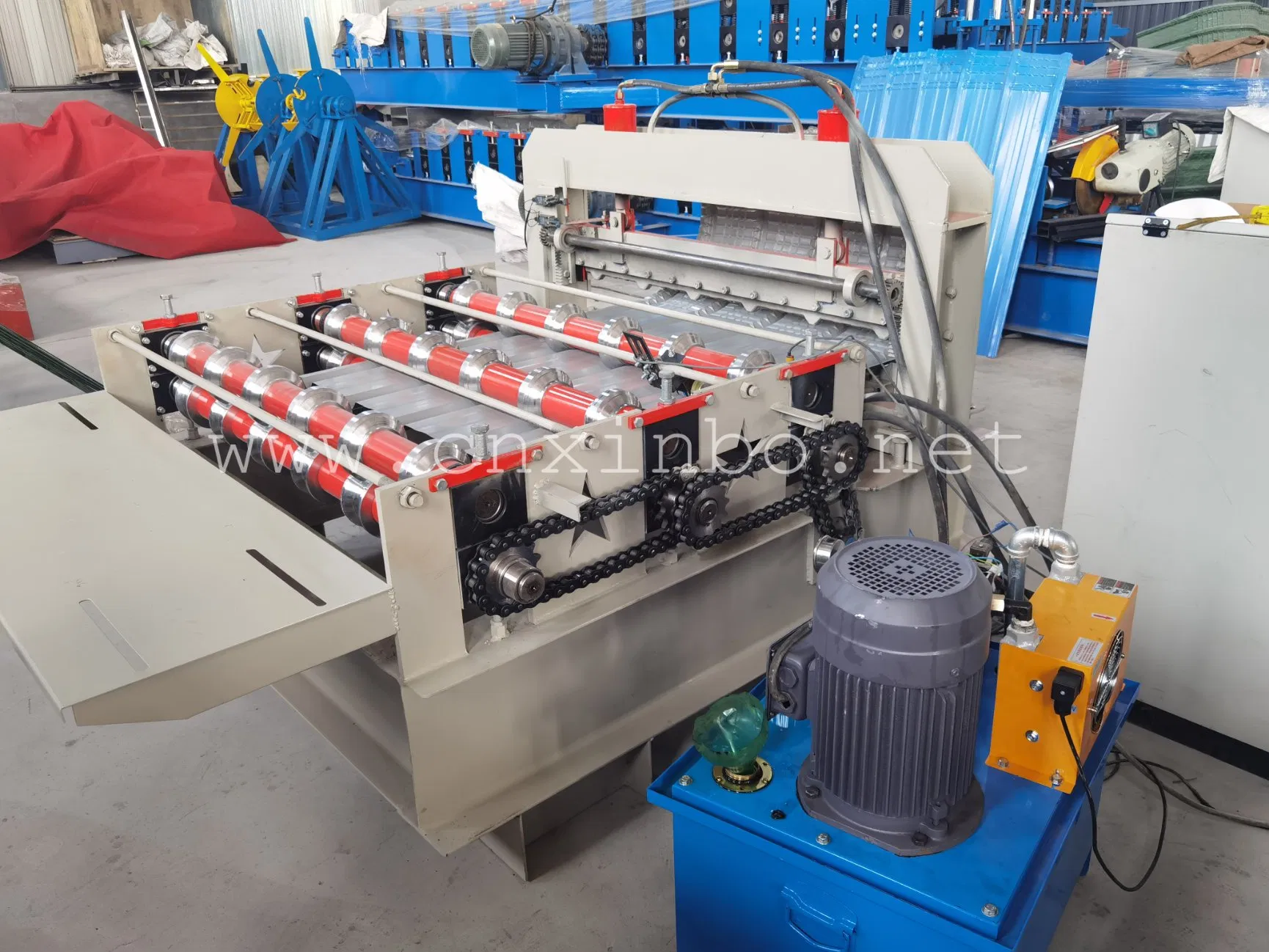

Curving Roof Panel Roll Forming Machine: This advanced equipment operates using a continuous process, where metal coils are fed into the machine to produce high-quality finished roof panels. It is an essential tool in the construction industry, particularly for industrial and commercial buildings requiring exceptional strength and durability.

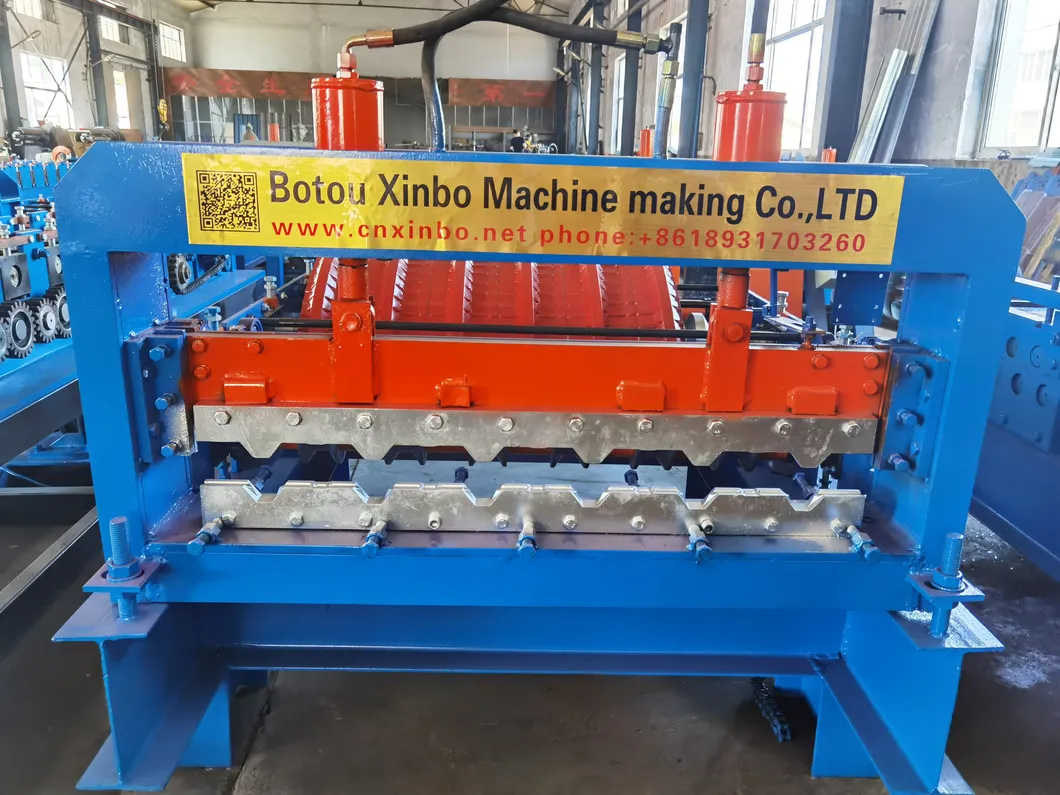

The roll forming machine transforms flat metal coils into profiles of various lengths and thicknesses. Utilizing a series of precision-engineered rollers and dies, it gradually shapes the metal into the desired architectural profile with high efficiency and aesthetic precision.
| Feature | Specification |
|---|---|
| Suitable Material | Color steel sheet, galvanized steel sheet |
| Main Motor Power | 4KW with Cycloidal reducer |
| Hydraulic Station Power | 4KW |
| Thickness Range | 0.3 - 0.8mm |
| Shaft Diameter | Φ95mm / Φ70mm |
| Roller Material | High grade 45# forged steel |
| Processing Speed | 10-15m/min |
| Precision | 10m +/- 1.00mm |
| Cutting Blade | Cr12 quenched |

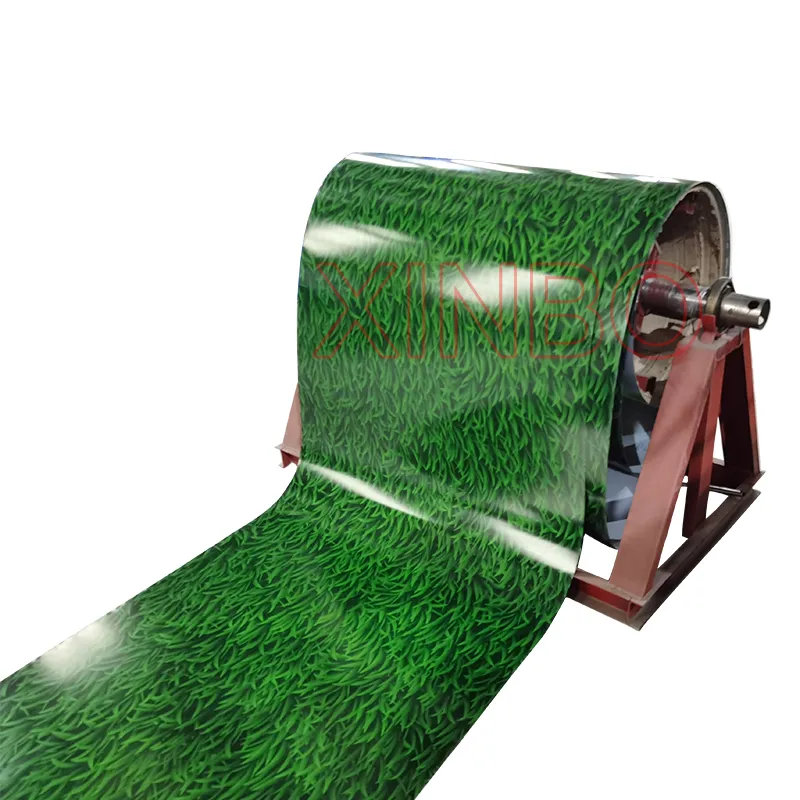

1. Decoiler

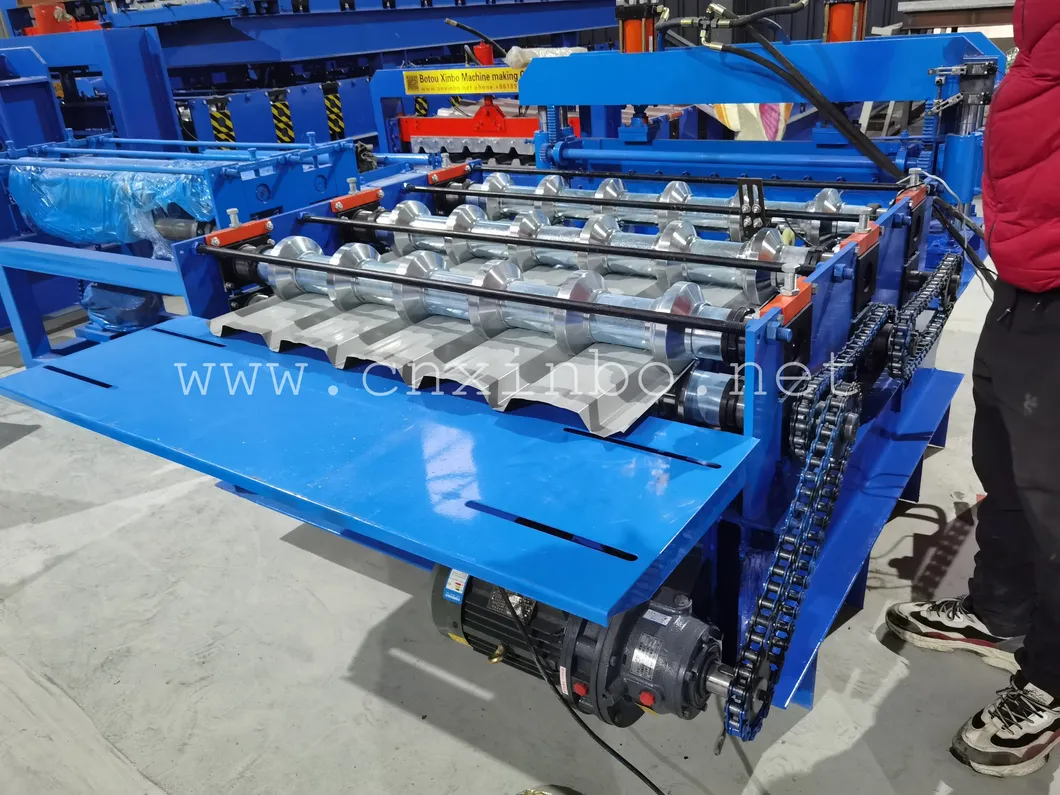

2. Entry Beach
3. Main Forming System

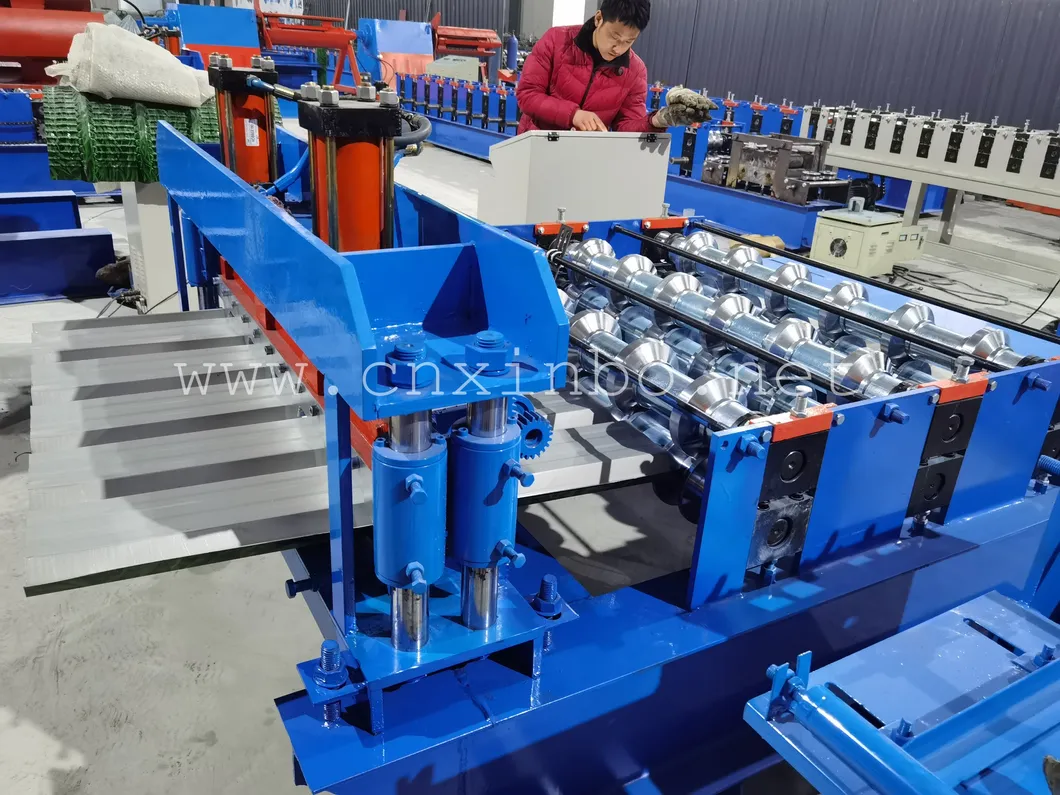

4. Shearing Mechanism

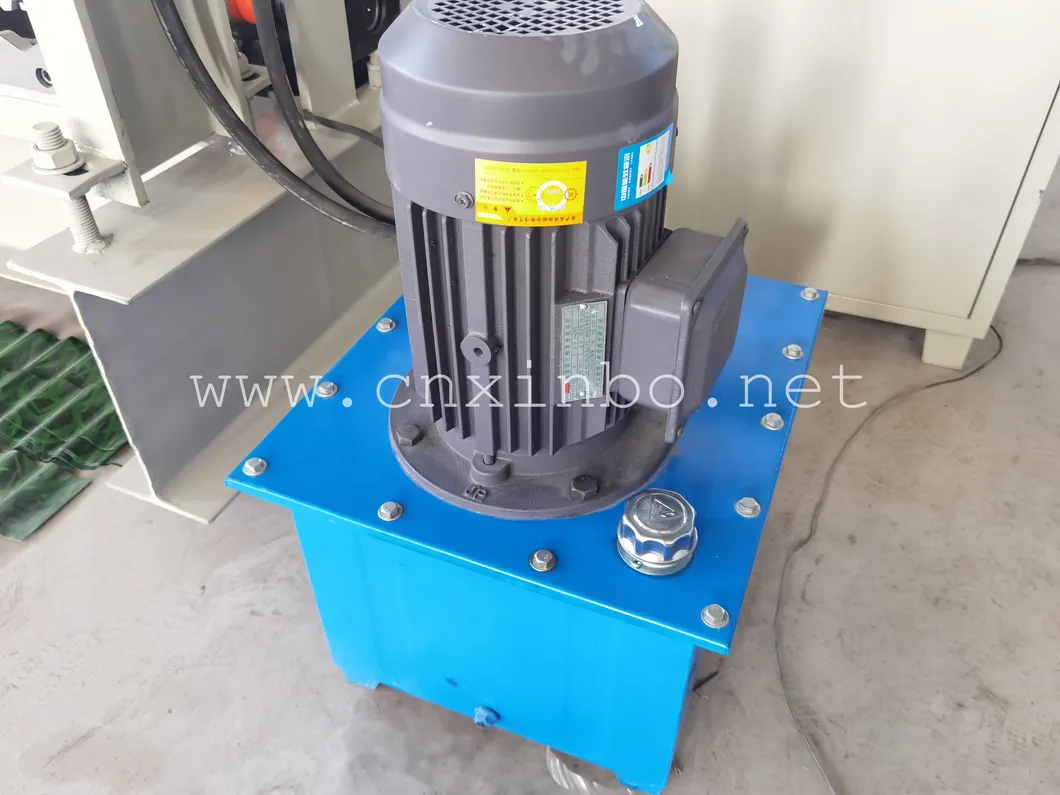

5. Hydraulic Station

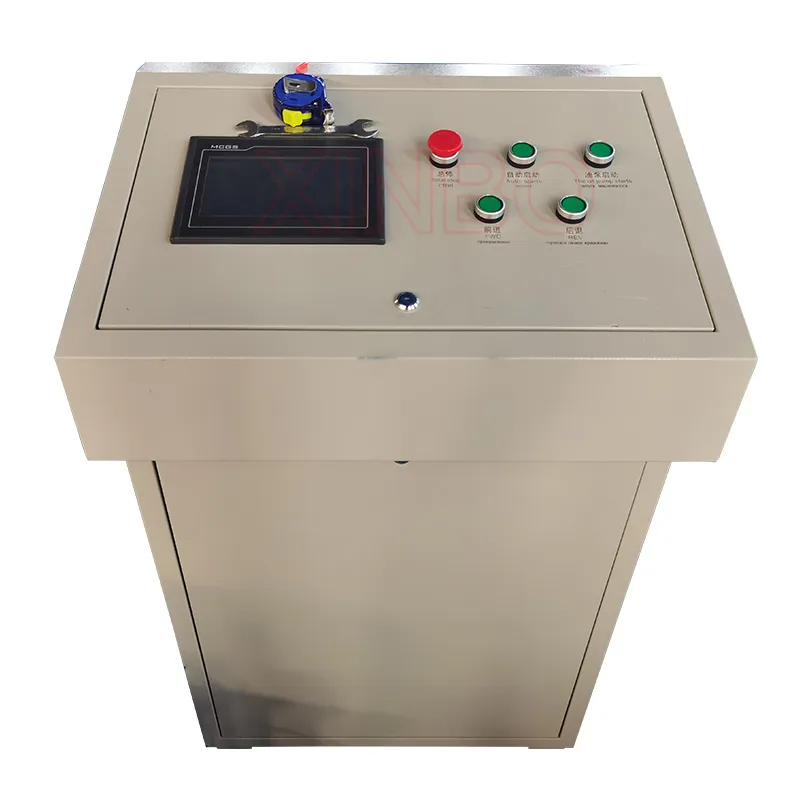

6. Computer Control Cabinet
Sales Term: 30% deposit by T/T; 70% balance settled by T/T before container loading and delivery.
Delivery Time: Within 35 working days after receipt of advance payment.
