Basic Specifications
Specification
560*550*385 mm
Product Description

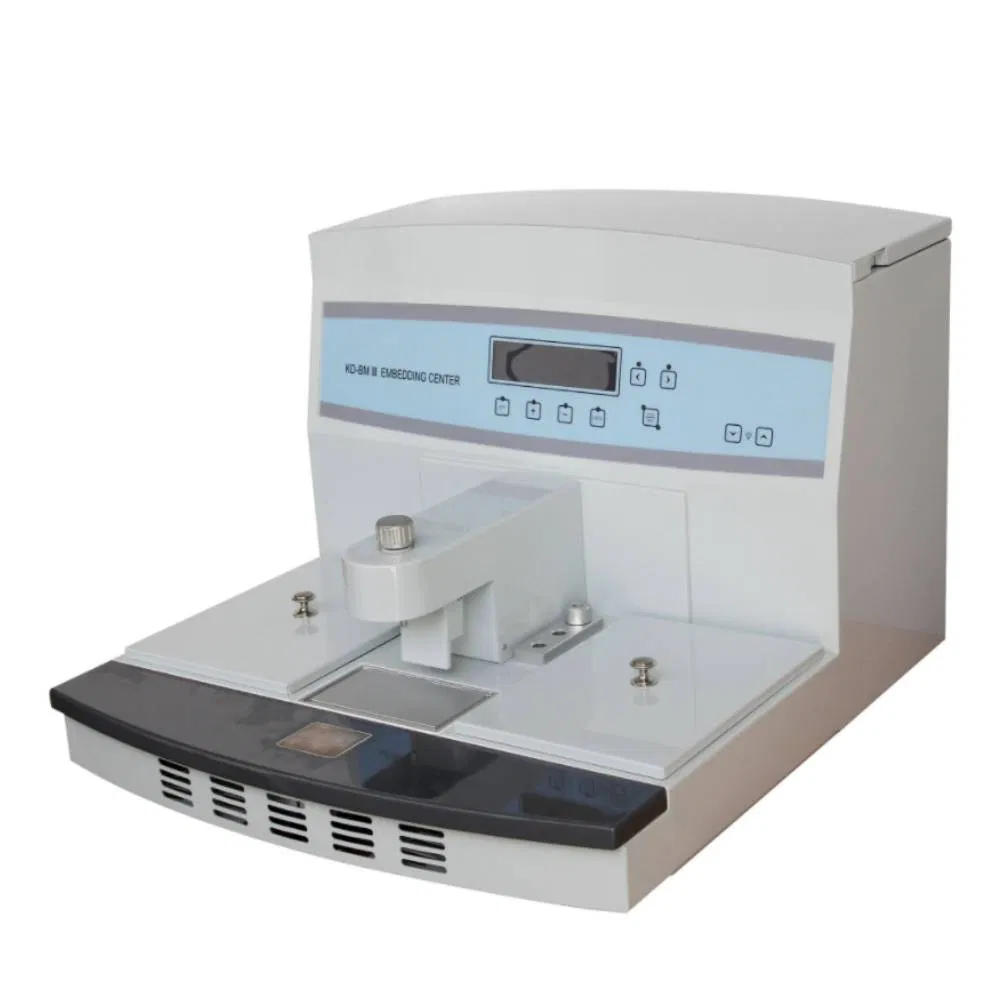

KD-BMIII Tissue Embedding Center
The KD-BMIII is a high-performance biological tissue embedding center designed for modern laboratories. It features a fully programmable computer control system that enables automatic start and stop, ensuring efficiency in pathology workflows.
Key Features
◈
Programmable Automation: Fully programmable computer control allows automatic system start and stop anytime on a weekly basis.
◈
Advanced Heating: Utilizes silicon rubber heating elements for rapid, even, and energy-saving performance.
◈
Precision Monitoring: Temperature is precisely measured by high-quality sensing blocks and displayed on an OLED/LCD screen with status icons.
◈
Independent Zones: Five heated areas (Paraffin Chamber, Dispenser, Thermal Storage, and Working Plate) are individually controlled.
◈
Flexible Design: Modular configuration separates the Cryo Module from the Embedding Module for easier maintenance.
◈
High Capacity: Large capacity paraffin chamber allows for simultaneous processing of a high volume of specimens.
Main Technical Parameters
| Wax Tank Capacity | 4 Liters |
| Temperature Range | Room temperature ~ 99 ºC (Adjustable for all zones) |
| Control Accuracy | ± 1 ºC |
| Cryo Plate Temp | < -5 ºC |
| Working Table Size | 155 × 90 (mm) |
| Storage Box Size | 240 × 160 × 55 (mm) |
| Overall Dimensions | 670 × 590 × 445 (mm) |
| Power Supply | AC 110V/220V, 50/60 Hz |
Product Gallery
Frequently Asked Questions
What is the capacity of the paraffin wax tank?
The KD-BMIII features a large 4-liter wax tank, which allows for the embedding of a high volume of specimens at once.
Can the heating schedule be automated?
Yes, the system is fully programmable, allowing you to set automatic start and stop times on a weekly basis.
Are the temperature zones controlled independently?
Yes, there are five heated areas including the paraffin chamber, dispenser, storage compartments, and the working plate, each with independent temperature control.
What happens if there is a sudden power failure?
The unit includes an automatic actuation feature that ensures the system continues working after a power-down event.
How accurate is the temperature control?
The system uses high-precision sensing blocks from the USA, providing a temperature control accuracy of ± 1 ºC.
Is the cooling module included or separate?
The design separates the Cryo Module from the Embedding Module, allowing for flexible configuration and easier maintenance based on laboratory needs.
