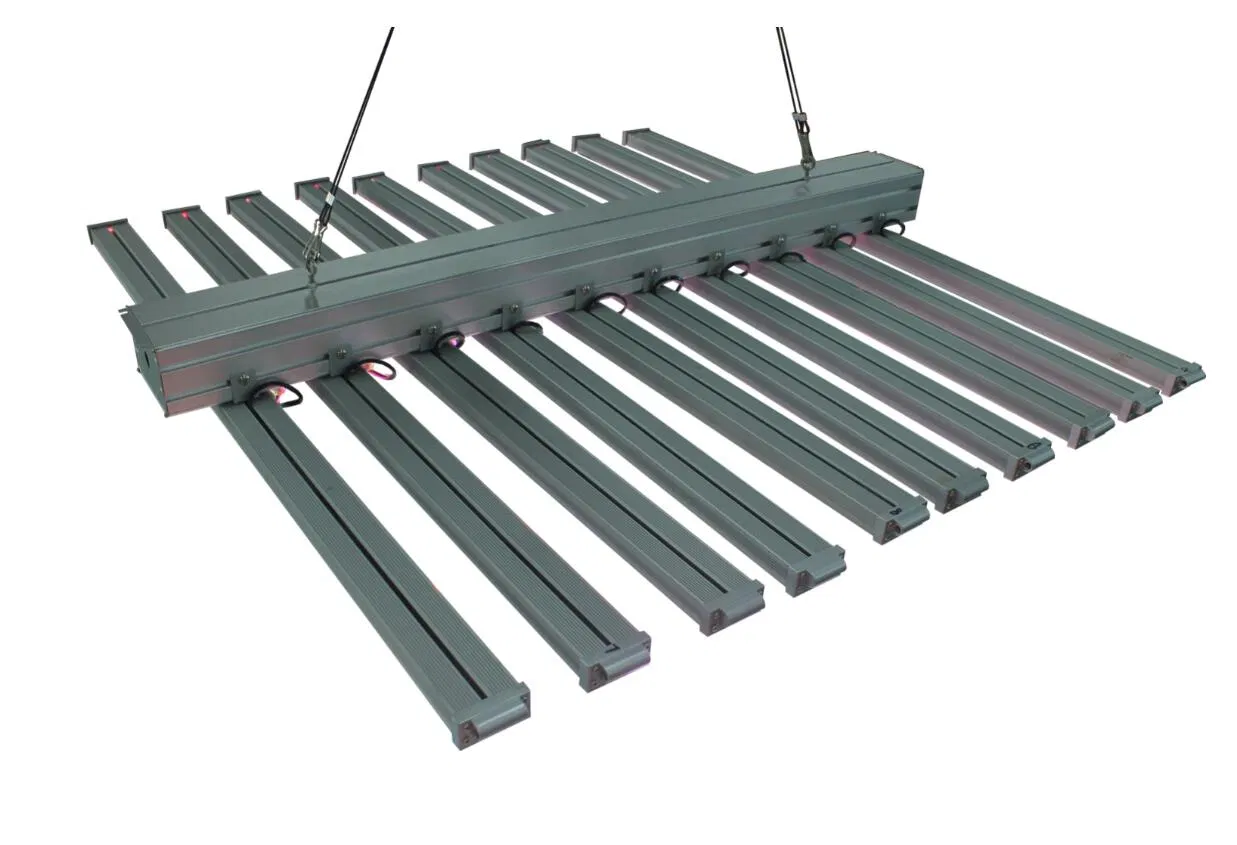

Full Spectrum 1000W Waterproof Horticulture Engines Linear Modules LED Grow Light Bars Vertical Farm Greenhouse Lighting

Customization: Available
IP Rating: IP65
Emitting Color: Customized

Product Description

📊 Basic Specifications
Model NO.
ATA-1000WB
Input Voltage
AC100-277V
Power
1000W
Warranty
3 Years
Life
50000h
LED Chips
Epiled
Ppf
1586umol/S
Efficiency
2.4umol/S
IP Rating
IP65
Spectrum
Full Spectrum
Housing Material
Aluminum
Dimensions
1022*1015*95mm
🌟 Product Advantages
  • Customizable Spectrum: Optimal full spectrum providing plants at Veg and Flower stages with natural sunlight simulation.
  • Advanced Full Spectrum: Includes Blue, Red, IR, UV, and White light to promote growth and defense mechanisms.
  • Adjustable Design: Adjustable bar distance for different lighting intensities and directions.
  • Superior Thermal Management: Aluminum structure for efficient heat dissipation and long lifespan.
  • High Efficiency: Replaces traditional 400W HPS/MH while consuming significantly less power.

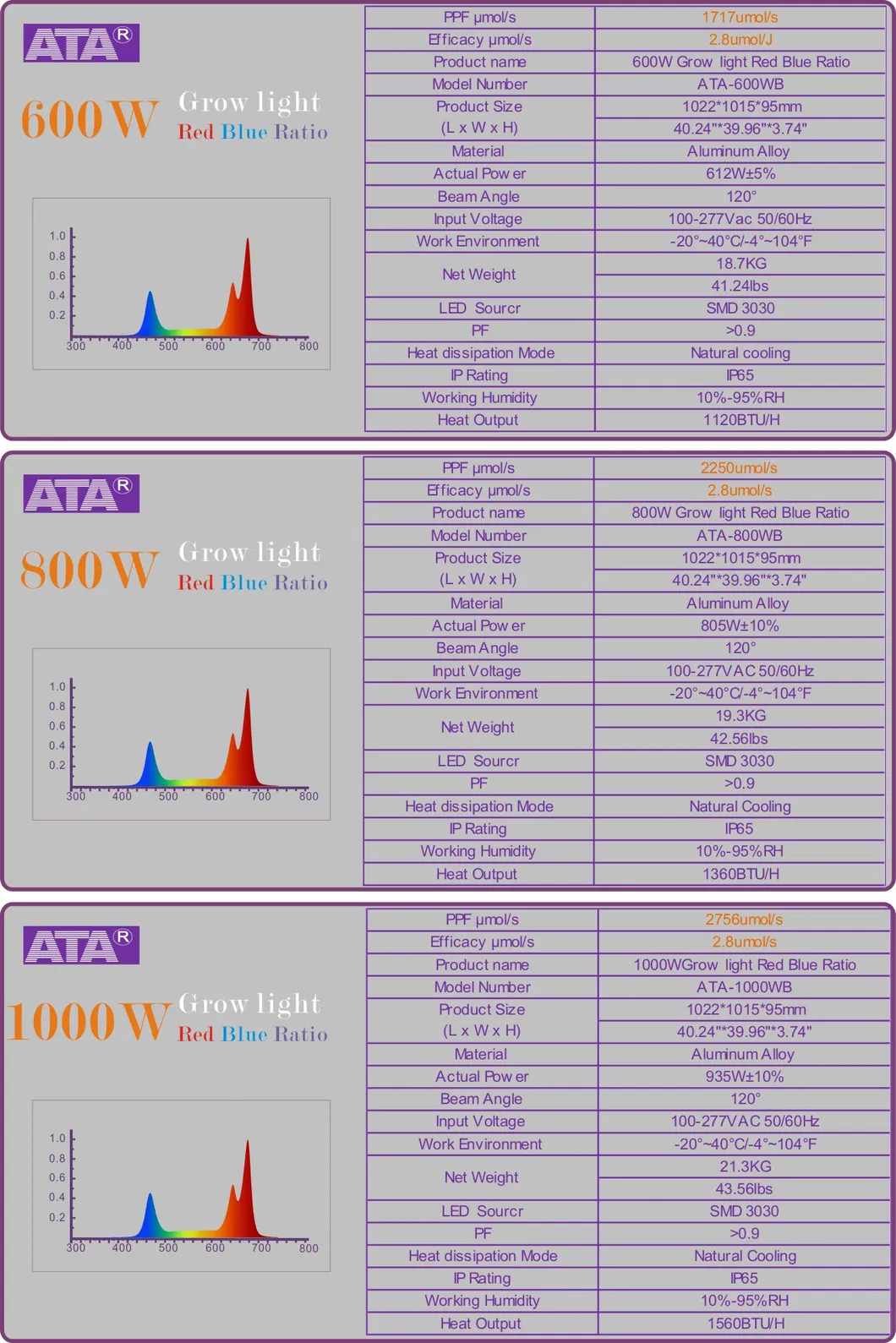

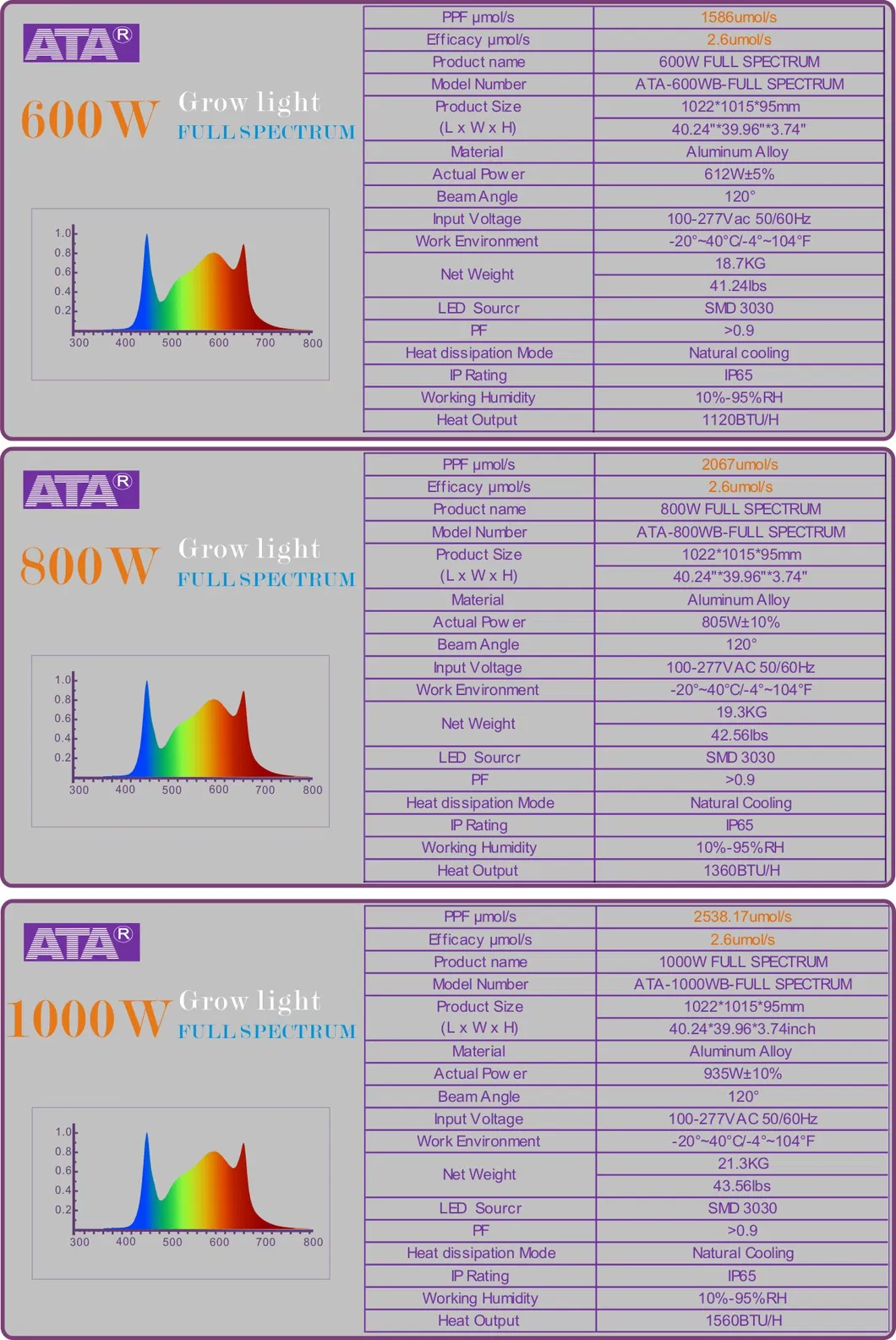

📋 Technical Specifications
Product Name ATA-M600W ATA-M600W-LENS ATA-M600W-FULL SPECTRUM
Power Consumption545W±5%545W±5%545W±5%
Led Type3W/3030 LED3W/3030 LED1W/5730 LED
Beam Angle120°90°120°
PPF (µmol/s)158615861586
IP RatingIP65IP65IP65
Warranty3 Years3 Years2 Years
📈 PPFD & Spectrum Data

PPFD Distribution:

PPFD Chart

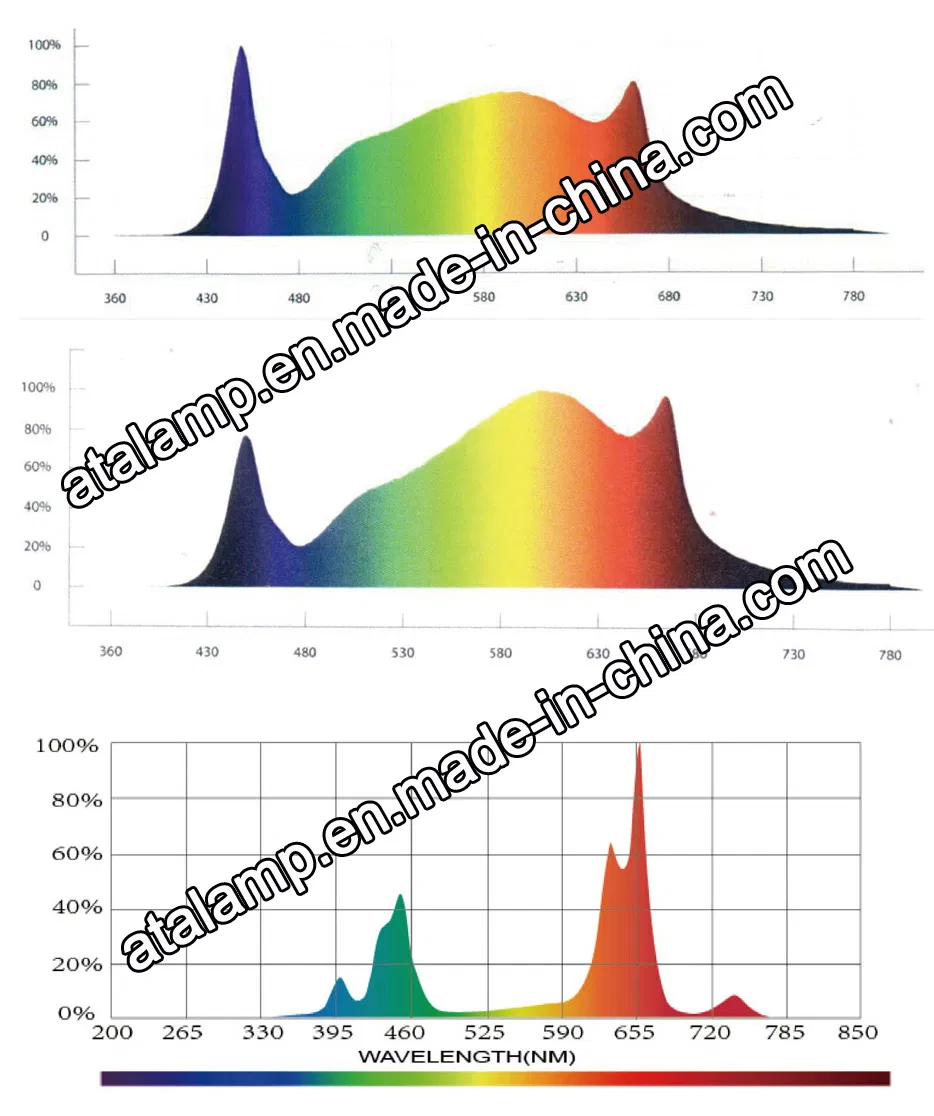

Light Spectrum:

Spectrum Graph
🛠️ Installation & Application

Installation Method: Suspending

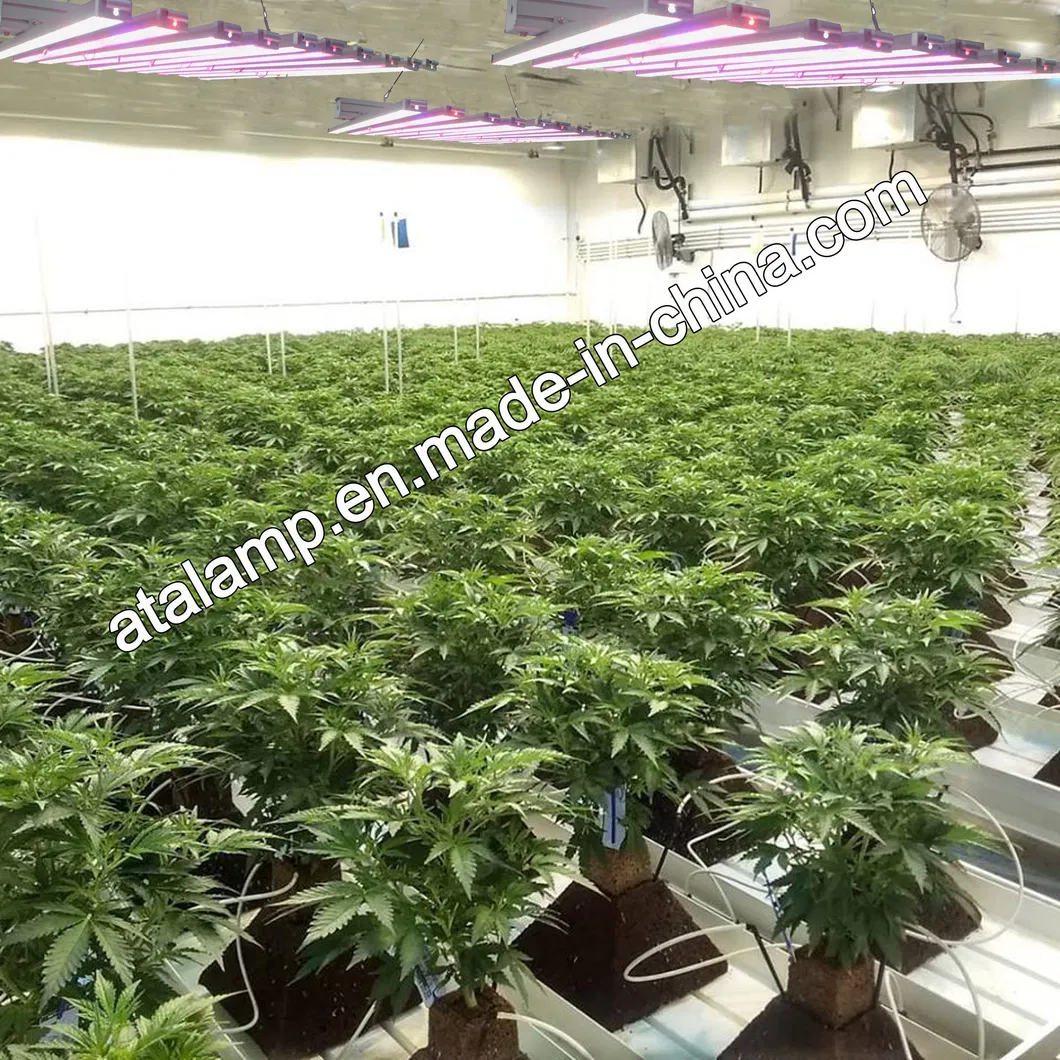

Installation Guide

Applications: Fruit, Vegetable, Flowers, Special Crops, Leafy, Fruit, Seedling, Greenhouse, Medical plants, Indoor gardens, and more.

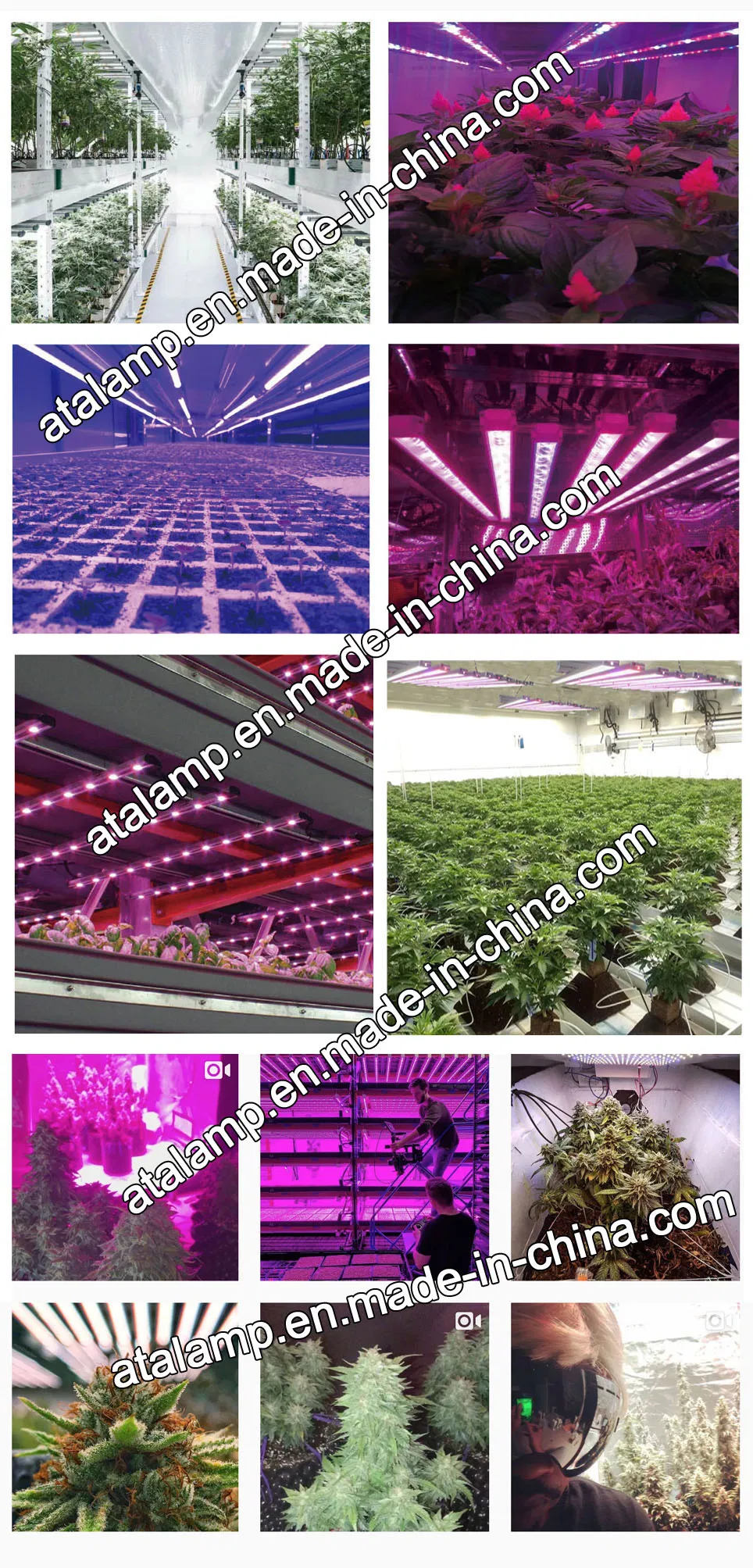

Application Scenarios
Quality Control
  • Stability TEST: 100% aging test for at least 48 hours.
  • Lighting TEST: 100% function test before packing.
  • Drop TEST: Verified protection and packaging durability.
Frequently Asked Questions
Q: What is the lifespan of the ATA-1000WB LED Grow Light?

A: The light has a rated lifespan of 50,000 hours with very low light decay (less than 15% in three years).

Q: Is this light suitable for high-humidity environments?

A: Yes, it features an IP65 rating and can operate in working humidity levels between 10% and 95% RH.

Q: Can I customize the LED spectrum for specific plants?

A: Yes, the spectrum can be customized to vary based on the specific needs of different plant types.

Q: What is the recommended mounting height?

A: At 1 meter height, the light provides an effective coverage area of approximately 6.0 square meters.

Q: How does the cooling system work?

A: It utilizes an aluminum bar structure for passive natural cooling and efficient heat dissipation.

Q: What certifications does this product hold?

A: It is certified by CE, RoHS, CCC, GS, Energy Star, FCC, SAA, and several other international standards.
