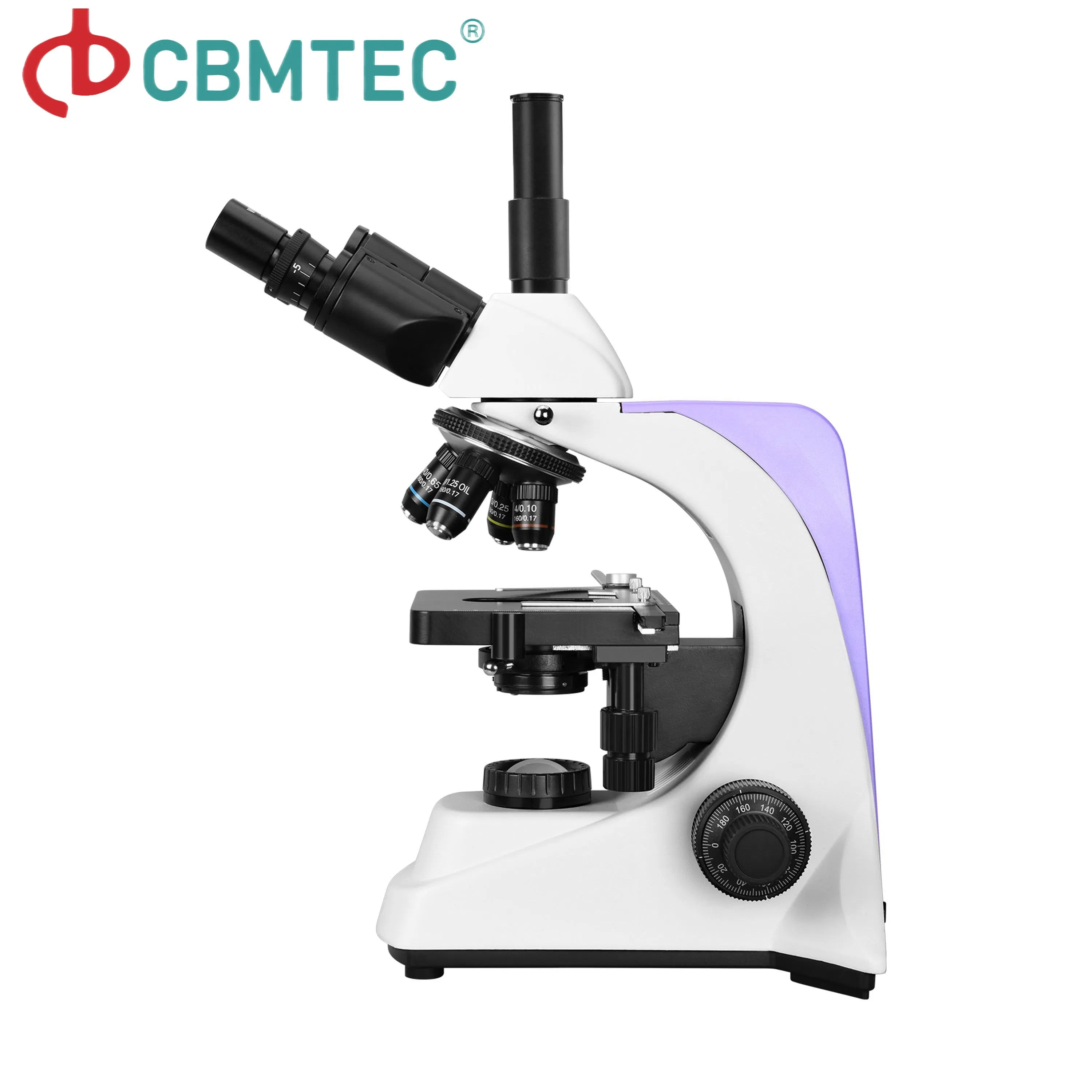

Trinocular Biological Microscope with Superior LED Lighting for Labs
Trinocular Biological Microscope with Superior LED Lighting for Labs
Trinocular Biological Microscope with Superior LED Lighting for Labs
Trinocular Biological Microscope with Superior LED Lighting for Labs
Trinocular Biological Microscope with Superior LED Lighting for Labs
1 / 5
Trinocular Biological Microscope with Superior LED Lighting for Labs
Trinocular Biological Microscope with Superior LED Lighting for Labs
Trinocular Biological Microscope with Superior LED Lighting for Labs
Trinocular Biological Microscope with Superior LED Lighting for Labs
Trinocular Biological Microscope with Superior LED Lighting for Labs

Trinocular Biological Microscope with Superior LED Lighting for Labs

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

⚙️ Basic Specifications

Model NO.
BM-1000T
Magnification
40X-1000X
Type
Biological
Number of Cylinder
≥Three
Mobility
Desktop
Stereoscopic Effect
Stereoscopic Effect
Light Source
LED Illumination
Shape
Plan Optical Lens
Usage
Teaching, Research
Principle
Optics
Optical Principle
Polarizing Microscope
Mechanical Stage
142*132mm (Double Layer)
Transport Package
Standard Shockproof Packaging
Origin
China
HS Code
9011800000

🔬 Product Overview

The BM-1000T Trinocular LED Biological Microscope is a high-precision instrument engineered for professional medical, educational, and biological research. Featuring a versatile magnification range from 40X to 2000X, it is equipped with premium WF10X/18mm eyepieces and an advanced LED lighting system, making it an ideal choice for detailed observation of cells, tissues, and microorganisms.

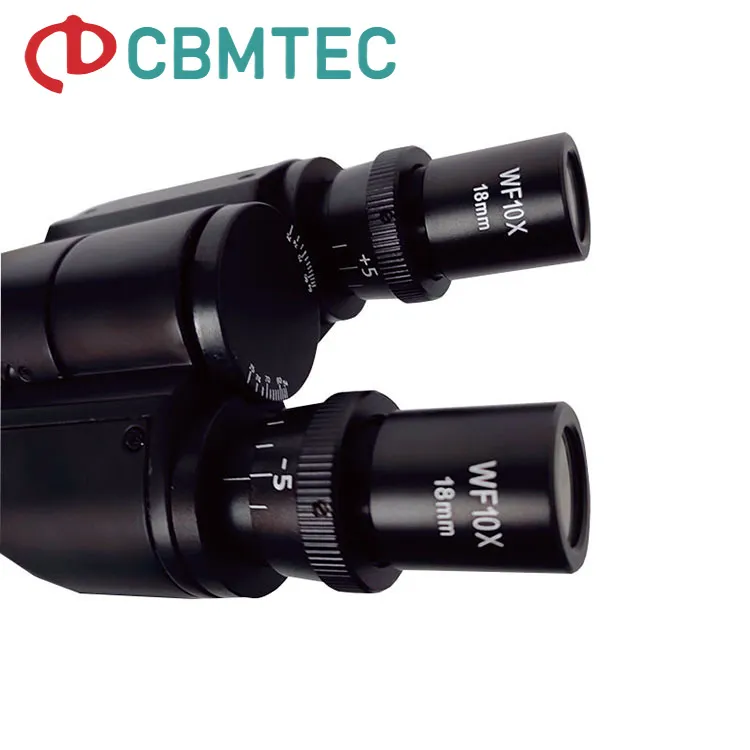

Trinocular Biological Microscope View 1

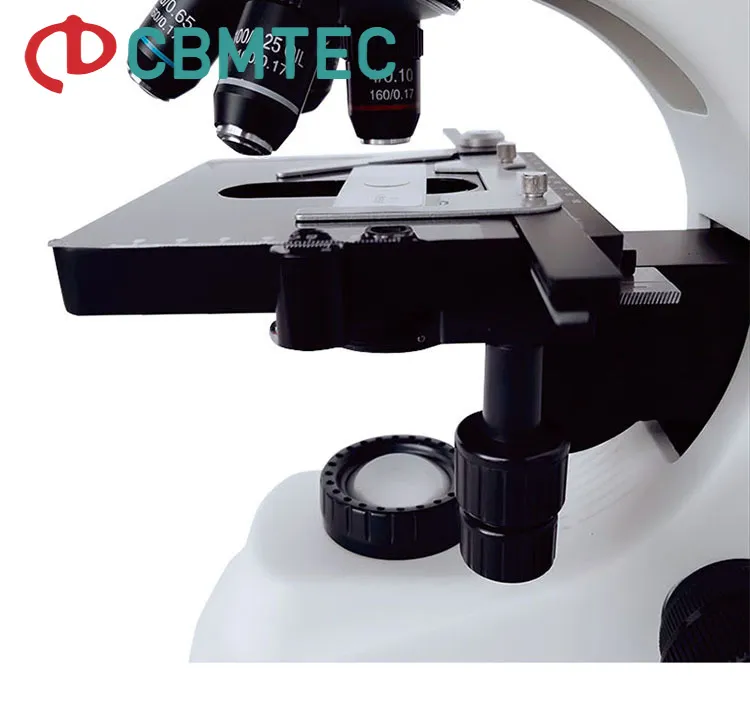

Trinocular Biological Microscope View 2

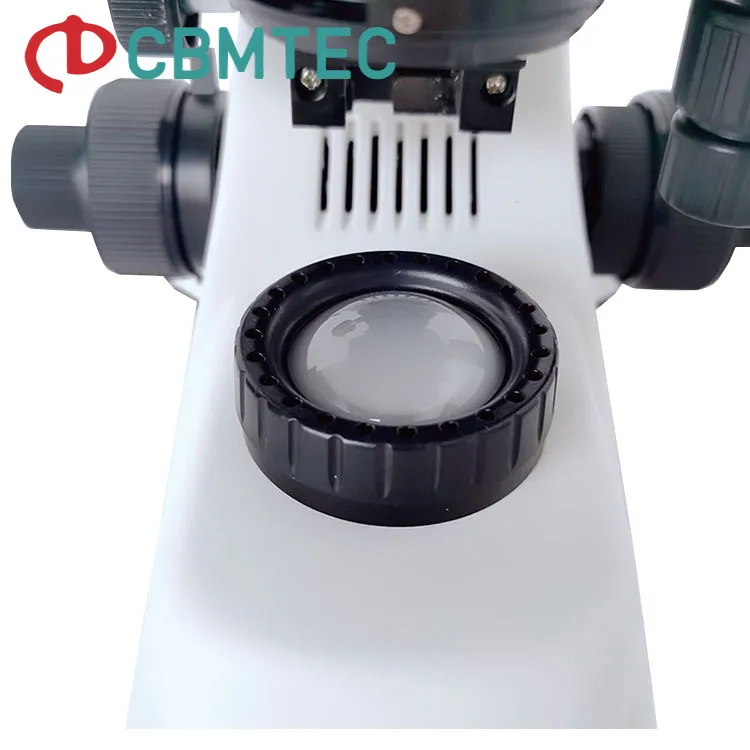

Trinocular Biological Microscope View 3

🌟 Key Features

  • Seidentopf Trinocular Viewing Head: Inclined at 30º, Interpupillary distance 48mm-75mm.
  • Wide Field Eyepiece: Standard WF10X/18mm for clear visualization.
  • Achromatic Objectives: Finite 195 Series (4X, 10X, 40Xs, 100Xs Oil).
  • Abbe Condenser: NA1.25 with Iris Diaphragm for precise light control.
  • Precision Adjustment: Coaxial coarse and fine adjustment; Fine Division 0.002mm, Coarse Stroke 36mm.
  • Mechanical Stage: Large 142x132mm double layer stage with 75mm x 50mm moving range.
  • LED Illumination: External 3W LED source for consistent brightness.

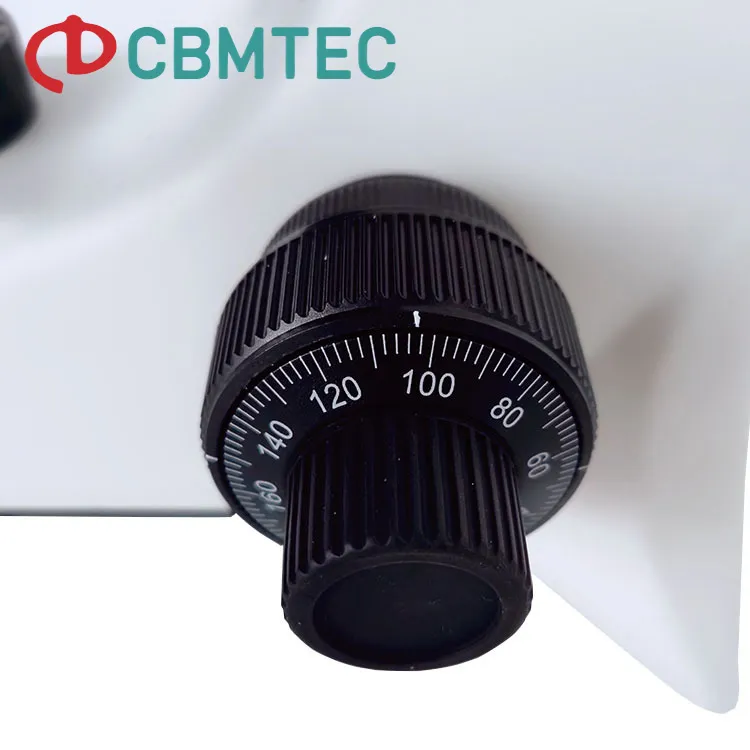

Microscope Detail 4

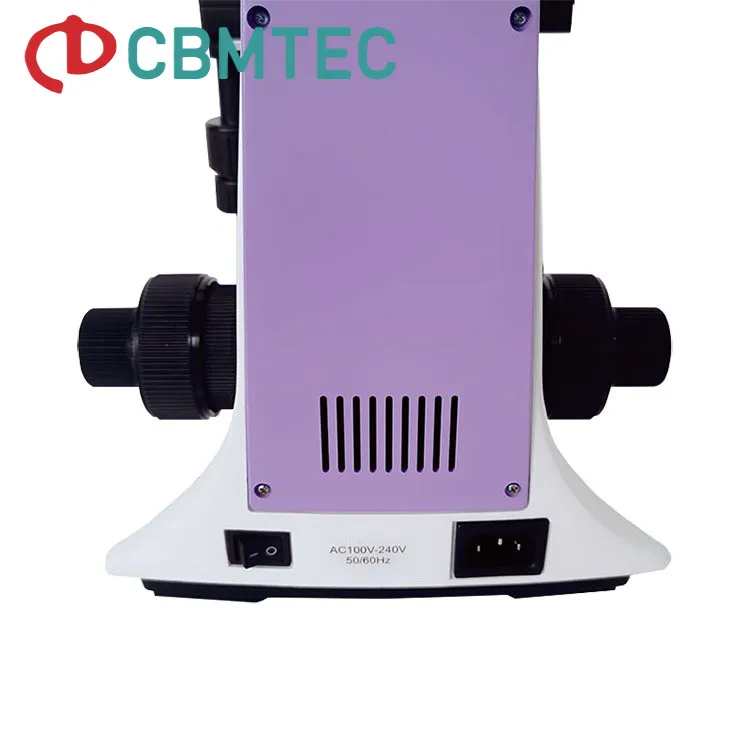

Microscope Detail 5

📸 Microscope Imaging & Scenarios

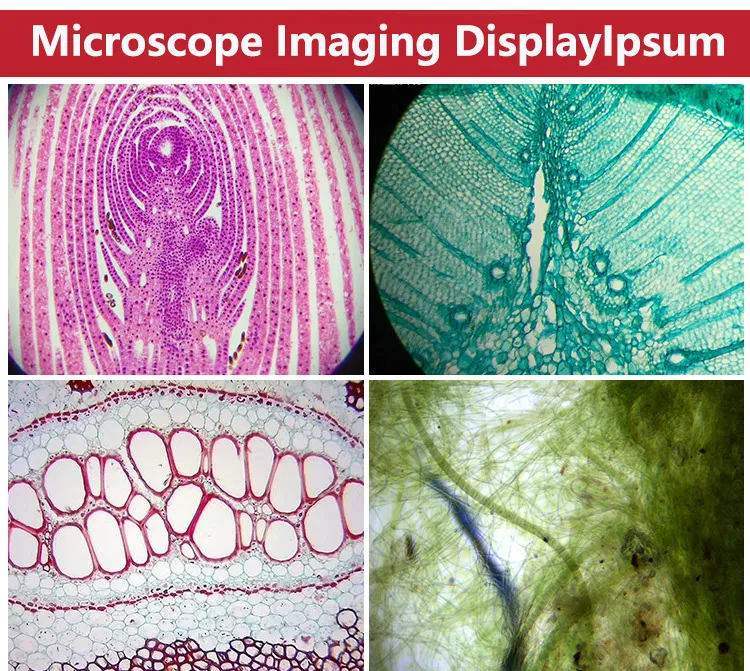

Microscope Imaging Sample

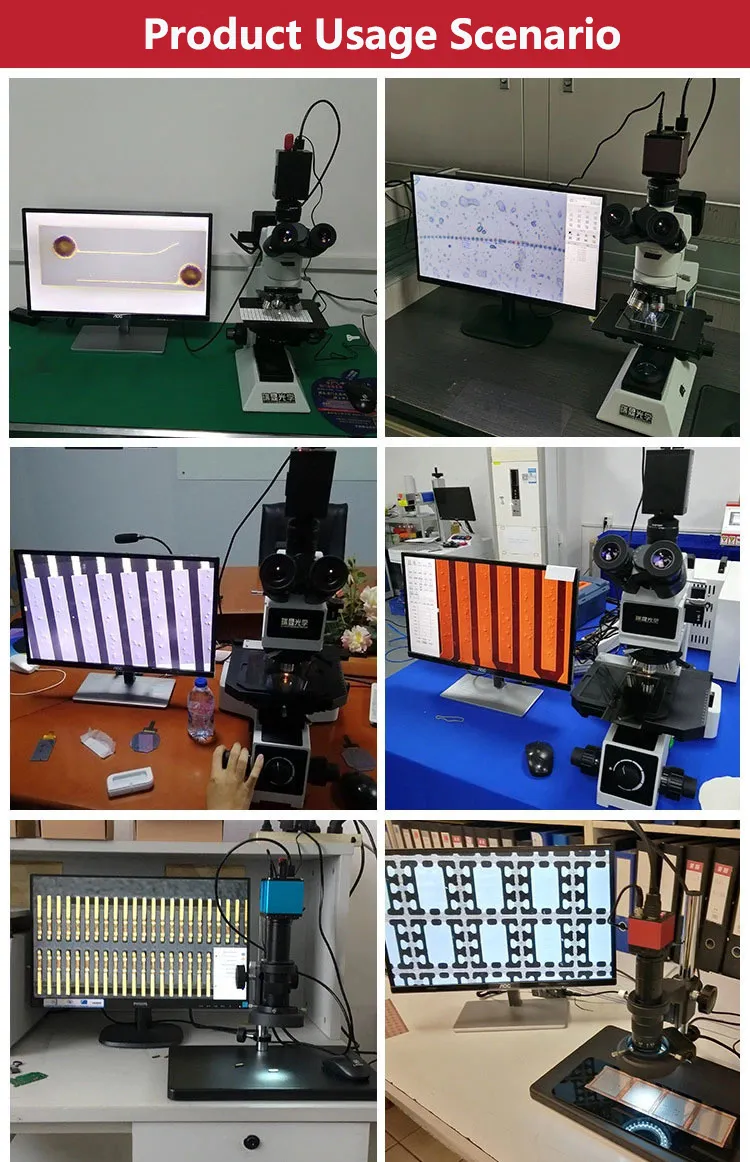

Usage Scenario 1
Usage Scenario 2

🛠️ Product Process & Manufacturing

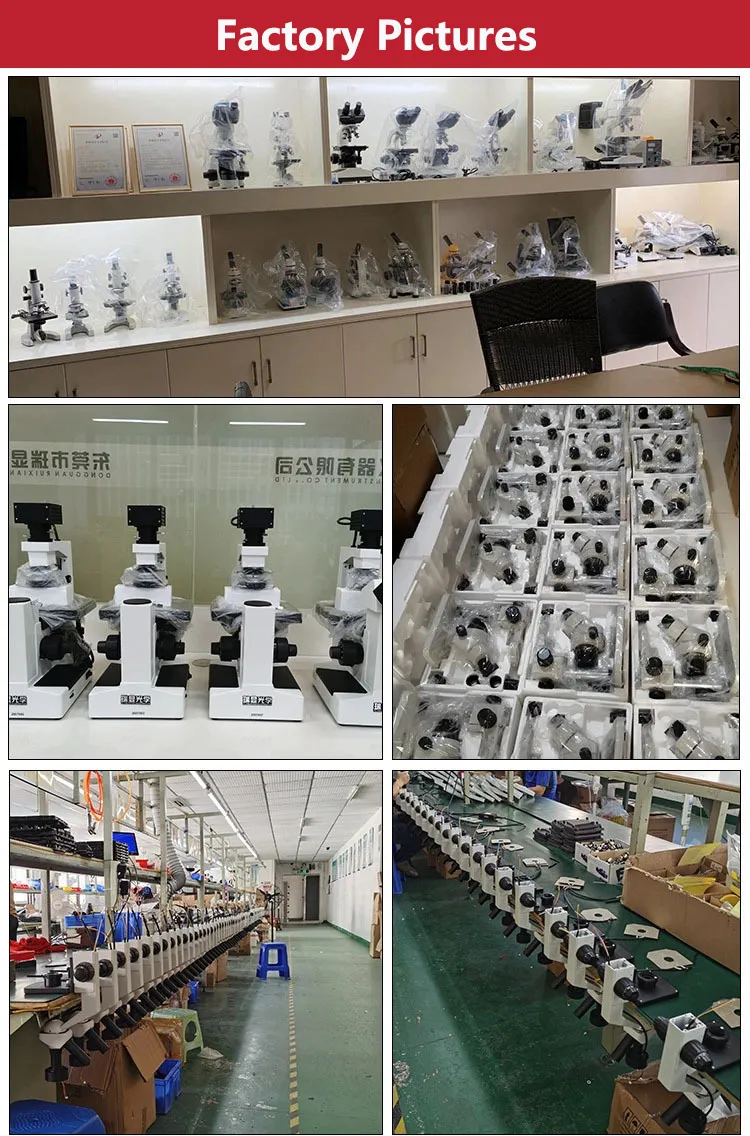

Product Manufacturing Process

✅ Our Advantages

  • Direct Manufacturer: Specialized production with advanced precision optical and CNC machinery.
  • High Output: Monthly capacity exceeds 50,000 units to meet global demand.
  • Quality Assurance: ISO 10360-8 compliant management with rigorous factory testing.
  • Cost Efficiency: Economies of scale provide significant price advantages.
  • Versatile Options: Diverse models meeting various international laboratory standards.
  • Low MOQ: Accepting small orders starting from 10 units.

🤝 Our Commitments

  • Market-competitive unit pricing.
  • Fast delivery timelines (3-4 weeks).
  • Comprehensive after-sales support.
Production Facility

📝 Technical Notes

Option A: Various types of seamless steel/aluminum gas cylinders, valves, and flowmeter regulators are available as options.

Option B: We offer mixed solutions for different cylinder sizes ranging from 0.2L to 68L, as well as dissolved acetylene cylinders and transport carts.

Equipment and Accessories

❓ Frequently Asked Questions

Q1: What is the maximum magnification of the BM-1000T?
The microscope provides a standard magnification range from 40X to 1000X, which can be extended up to 2000X depending on the configuration used.
Q2: Can I connect a camera to this microscope?
Yes, the BM-1000T features a Seidentopf Trinocular head, which is specifically designed to allow for the attachment of digital imaging systems or cameras while still viewing through the eyepieces.
Q3: Is the LED light source adjustable?
Yes, the external 3W LED illumination system provides consistent lighting and is typically adjustable to ensure the correct intensity for different types of samples.
Q4: What is the benefit of the Seidentopf head?
The Seidentopf design allows for easy interpupillary adjustment (48mm-75mm) without changing the tube length, ensuring that the focus remains constant for different users.
Q5: Is this microscope suitable for medical research?
Absolutely. It is designed for medical, biological research, and educational applications, making it ideal for examining cells, tissues, and bacteria.
Q6: What is the Minimum Order Quantity (MOQ)?
We provide flexibility for our clients by accepting small orders with a minimum quantity of just 10 units.
