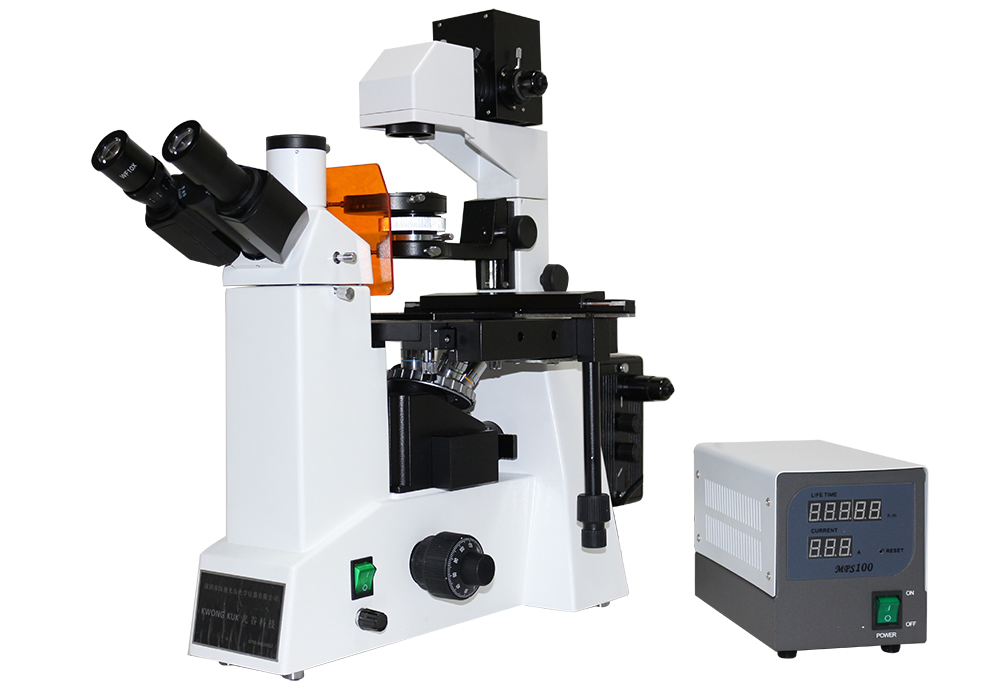

Professional Research-Grade Trinocular Biofluorescence Microscope University Laboratory
Professional Research-Grade Trinocular Biofluorescence Microscope University Laboratory
Professional Research-Grade Trinocular Biofluorescence Microscope University Laboratory
Professional Research-Grade Trinocular Biofluorescence Microscope University Laboratory
Professional Research-Grade Trinocular Biofluorescence Microscope University Laboratory
1 / 5
Professional Research-Grade Trinocular Biofluorescence Microscope University Laboratory
Professional Research-Grade Trinocular Biofluorescence Microscope University Laboratory
Professional Research-Grade Trinocular Biofluorescence Microscope University Laboratory
Professional Research-Grade Trinocular Biofluorescence Microscope University Laboratory
Professional Research-Grade Trinocular Biofluorescence Microscope University Laboratory

Professional Research-Grade Trinocular Biofluorescence Microscope University Laboratory

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
YG3
Magnification
100X-400X
Type
Fluorescent
Number of Cylinder
≥Three
Mobility
Desktop
Light Source
Ordinary Light
Shape
Rectangular Prism
Usage
Teaching, Research
Principle
Optics / Phase Contrast
Origin
China
HS Code
9011800090
Capacity
1000
📦 Packaging & Delivery
Package Size
53.00cm * 50.00cm * 56.00cm
Gross Weight
10.000kg
Transport Package
Foam + Carton
🔬 Technical Specifications
Component Details
ModelYG3
EyepieceWide field eyepiece WF10X(Φ20mm)
Objectives • Plan achromatic PL L 10X/0.25, 25X/0.40, 40X/0.60
• Phase contrast objective PL L 10X/0.25 PHP2, 25X/0.40 PHP2, 40X/0.60 PHP2
Eyepiece TubeTrinocular (30° Inclination, 100% image light for photography)
Focus SystemCoaxial coarse/fine focus, tension adjustable, 2μm minimum division
NosepieceQuintuple (Ball bearing inner locating)
StageDouble layer mechanical (224mm x 208mm, range: 112mm x 79mm)
FiltersBlue and Green filters included
Specimen HoldersSupports Φ68mm, 77x29mm, 82x57mm, and 128x85mm (96 holes) culture utensils
Fluorescence System • Mercury lamp 100W/DC
• Filters: B (450~490nm), G (495~555nm), UV (320~380nm), V (380~415nm)
🛠️ Optional Accessories
Eyepiece OptionsWide field WF16X(Φ11mm), Dividing 10X(Φ20mm)
CondenserUltra long working distance (70mm)
CCD Adapters0.4X, 0.5X, 1X options
Digital CameraDV-1 (USB/Video), DV-2 (USB), DV-3 (Video)
Photography Unit2.5X/4X change over attachment, MD/PK Adapters
🖼️ Product Gallery

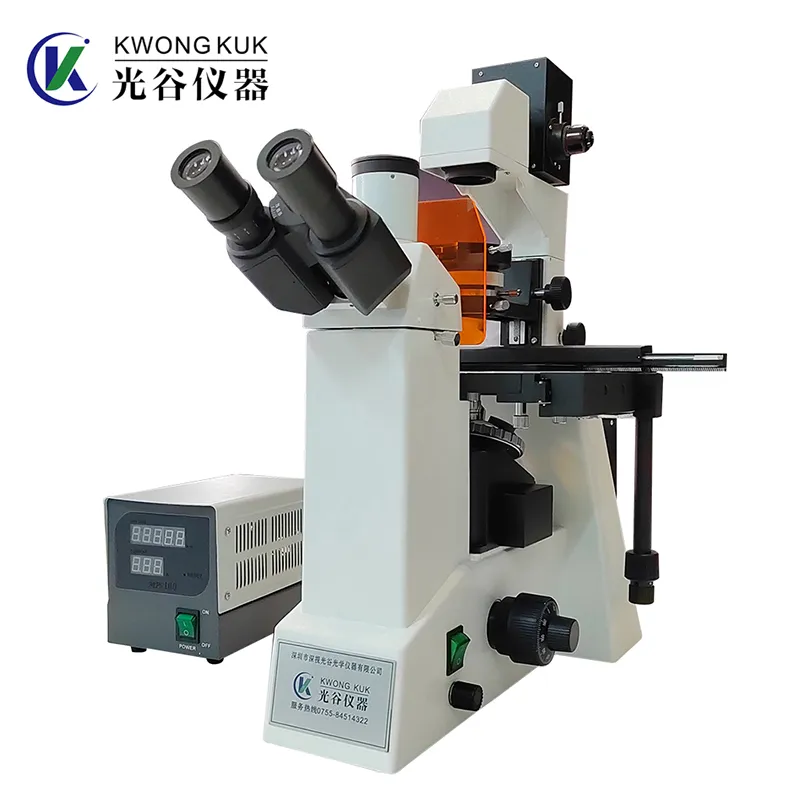

Trinocular Biofluorescence Microscope

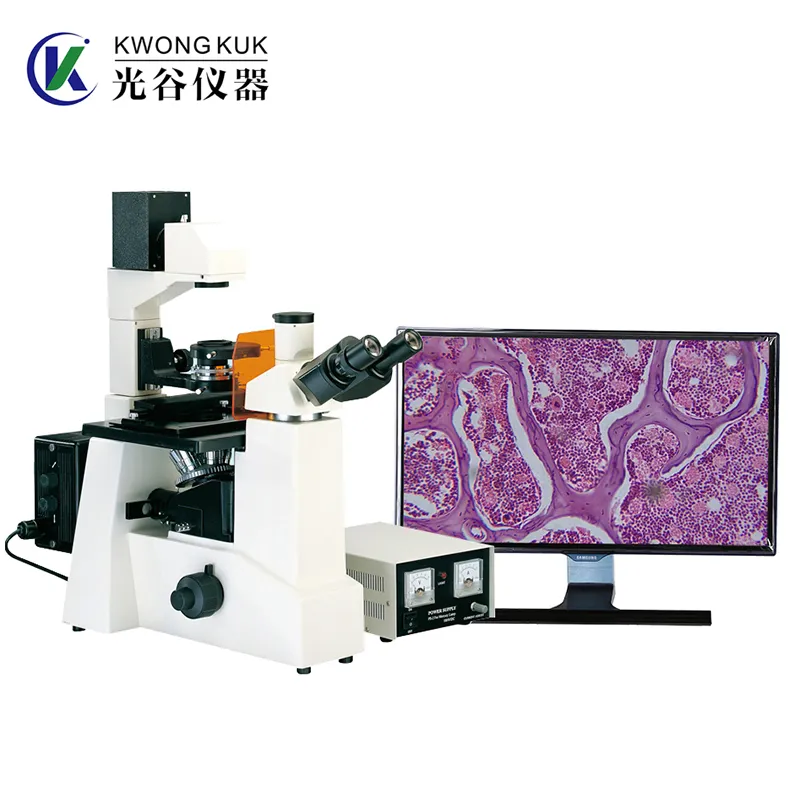

Laboratory Microscope Detail

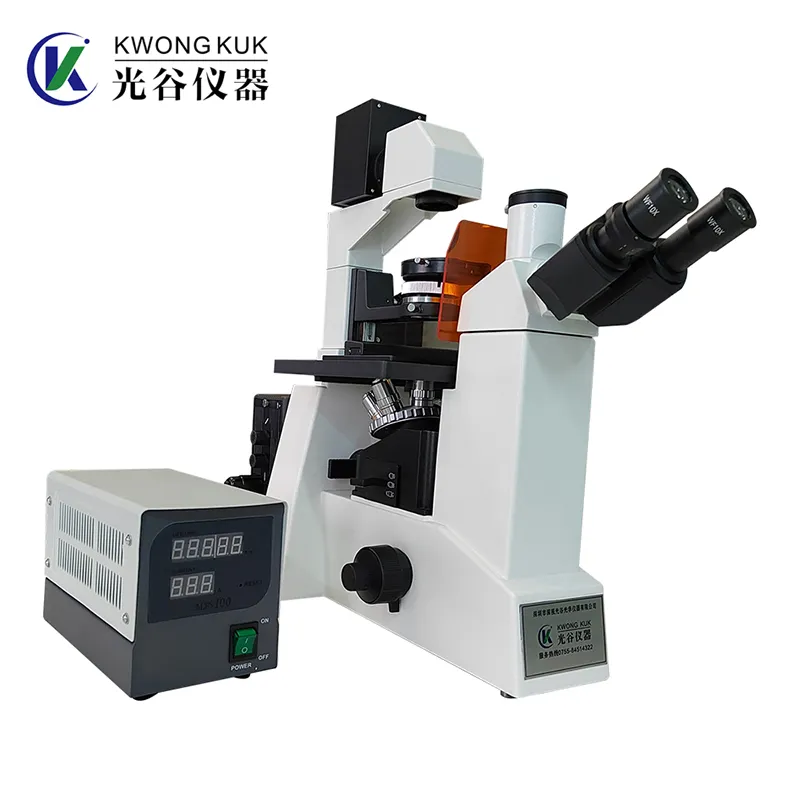

Professional Research Microscope

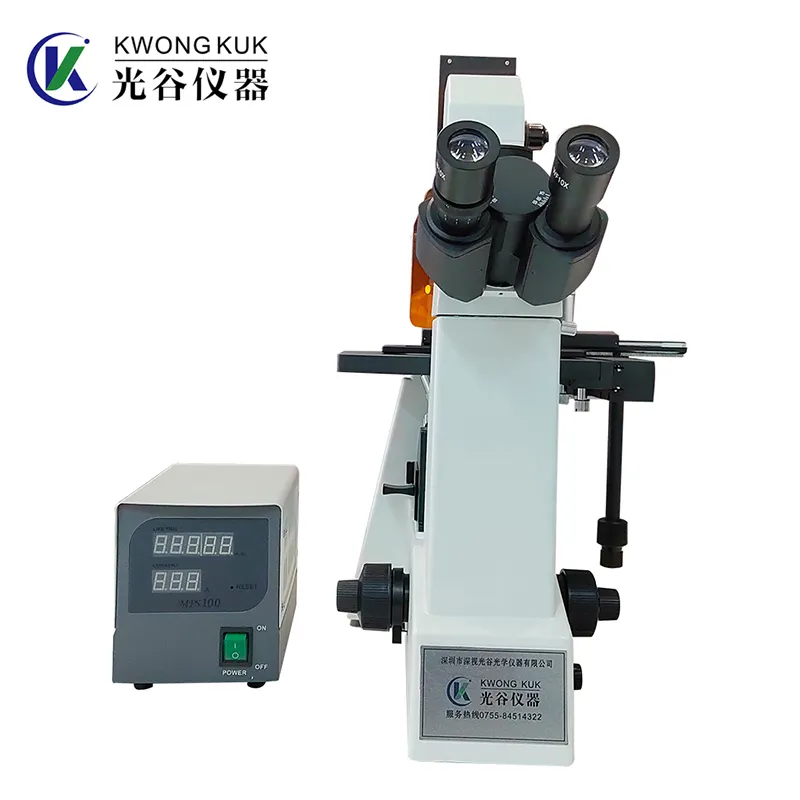

Fluorescence Microscope View

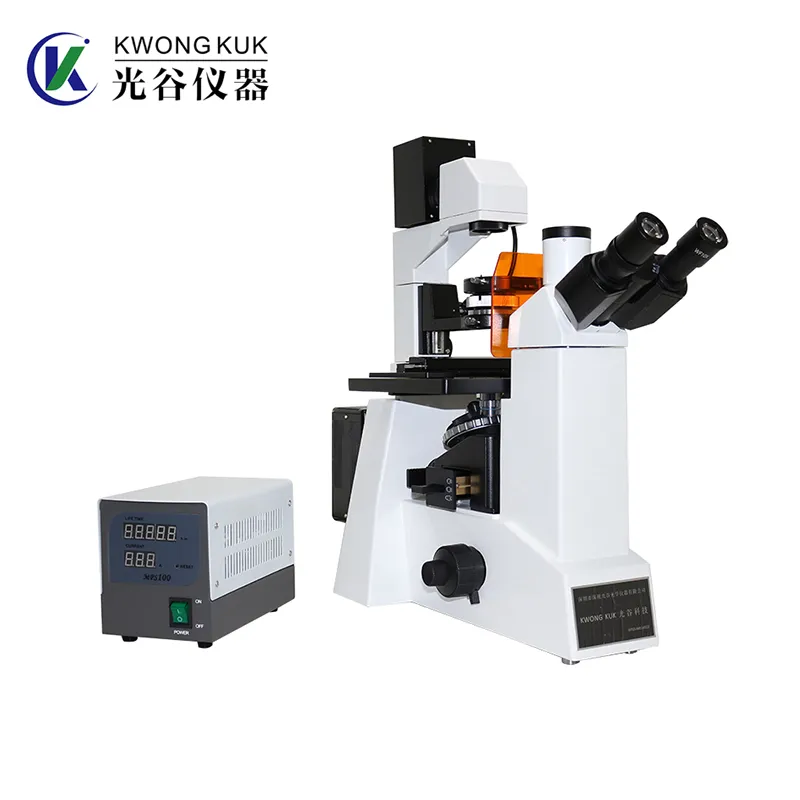

University Lab Equipment

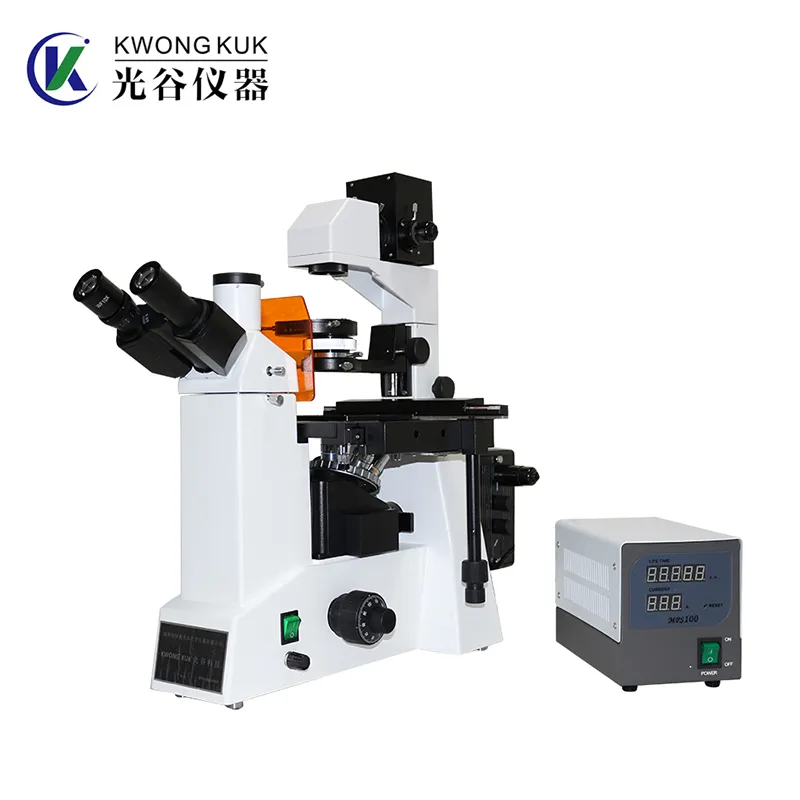

Biological Microscope Component
Microscope Specs Chart 1
Microscope Specs Chart 2
Microscope Technical Data
Fluorescence Unit Parameters
Microscope Assembly
❓ Frequently Asked Questions
What is the magnification range of the YG3 model?
The YG3 microscope offers a magnification range of 100X to 400X, suitable for detailed research and teaching.
Can I use this microscope for photography?
Yes, the trinocular head features 100% image light transmission for photography, making it capable of professional documentation.
What types of fluorescence filters are included?
The system includes B (450~490nm), G (495~555nm), UV (320~380nm), and V (380~415nm) exciton wavelength filter systems.
What kind of stage does the microscope have?
It features a double layer mechanical stage measuring 224mm x 208mm with a wide moving range of 112mm x 79mm.
Does it support phase contrast observation?
Yes, it includes a turnplate phase contrast unit and specialized plan achromatic phase contrast objectives for enhanced imaging.
What are the power requirements for the fluorescence unit?
The fluorescence power supply unit is compatible with 110V or 220V AV input, supporting a 100W mercury lamp.
