Portable Primary Current Injection Kit

Customization: Available
After-sales Service: Life Long Support
Warranty: 1 Year

Product Description

📊 Basic Specifications
Model NO.
HMSLQ
Type
Primary Current Injection Test Set
Accuracy Grade
RMS 1.5
Display
Touch Screen
Power Source
220V/380V
Output Voltage
0-6V
Output Current
500A, 1000A, 2000A
Standard
ISO
HS Code
9030899090
Capacity
500sets/Month
📦 Packaging & Delivery

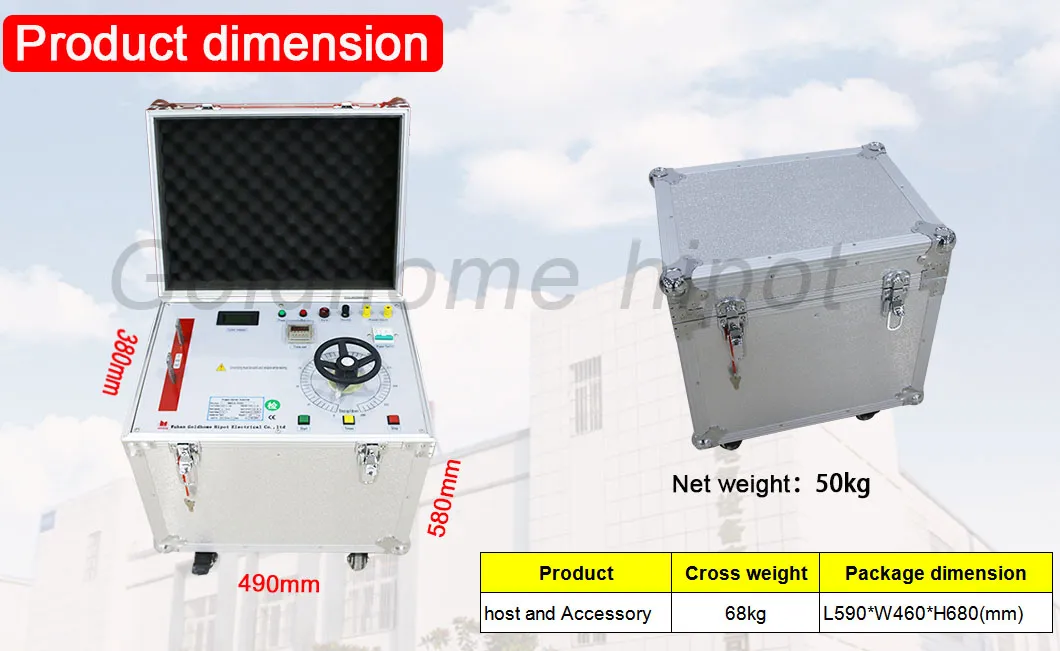

Package Size
59.00cm * 46.00cm * 68.00cm
Gross Weight
68.000kg
Transport
Wooden Box with Foam Inside
📝 Product Description

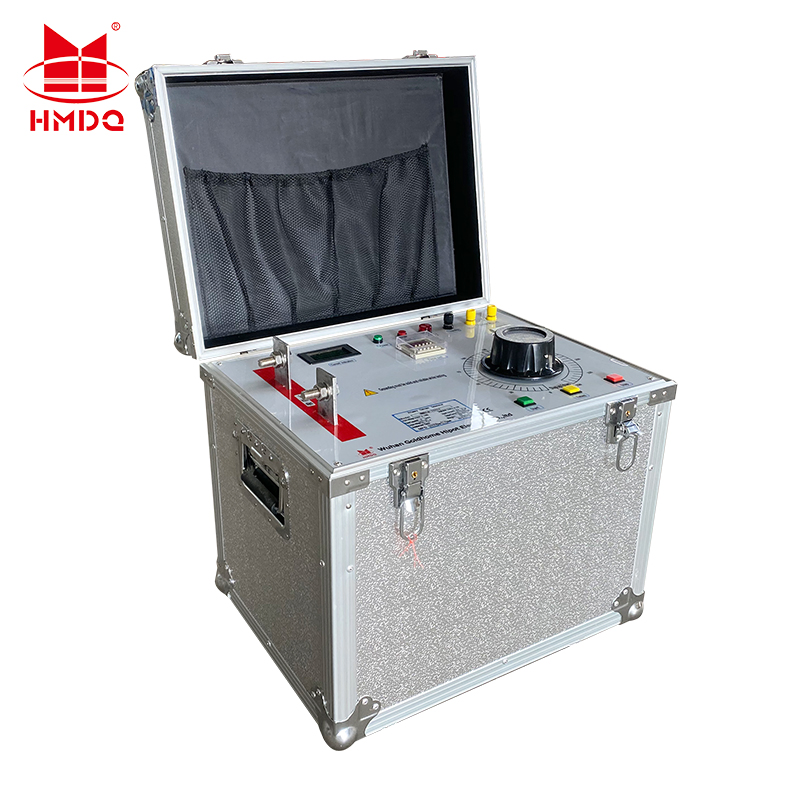

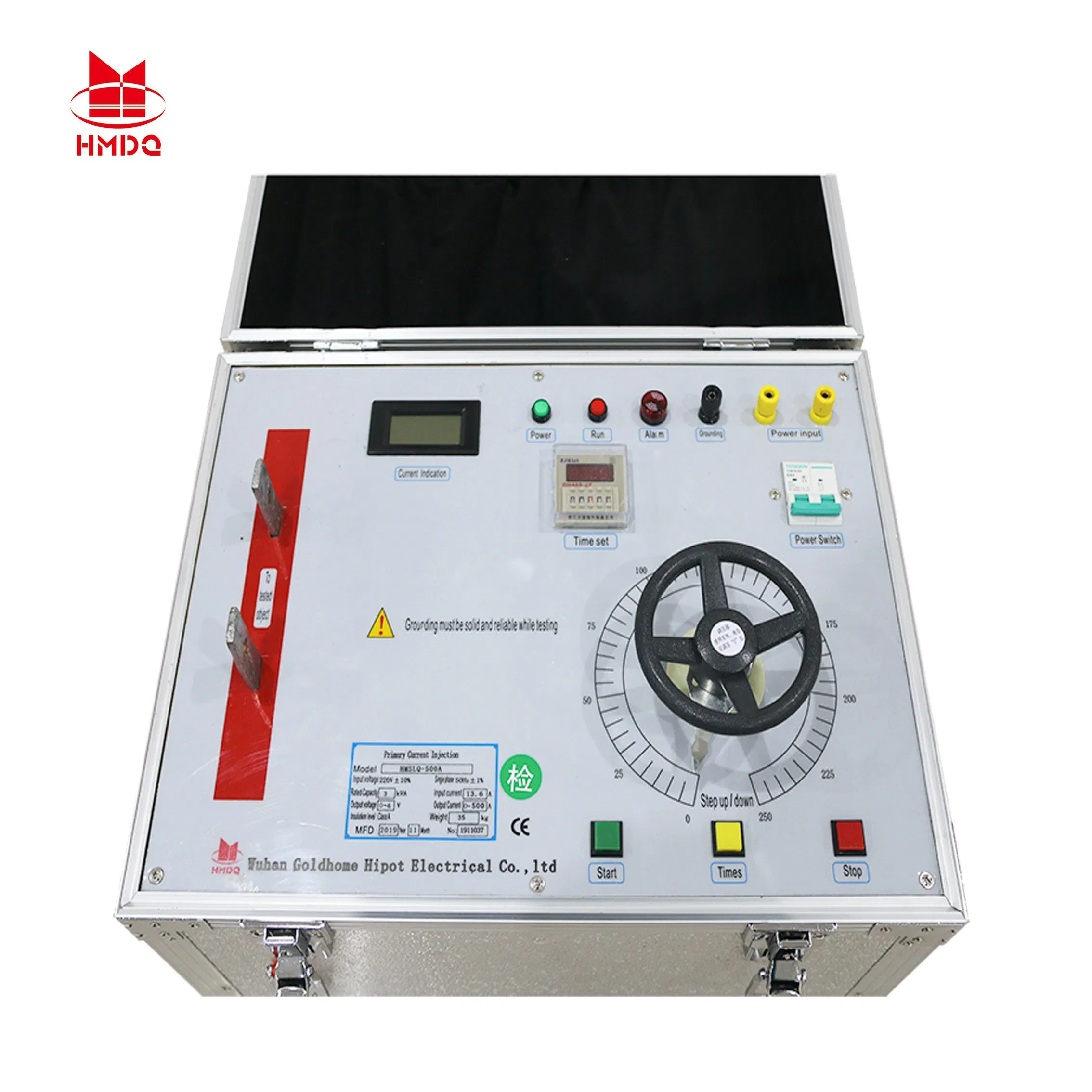

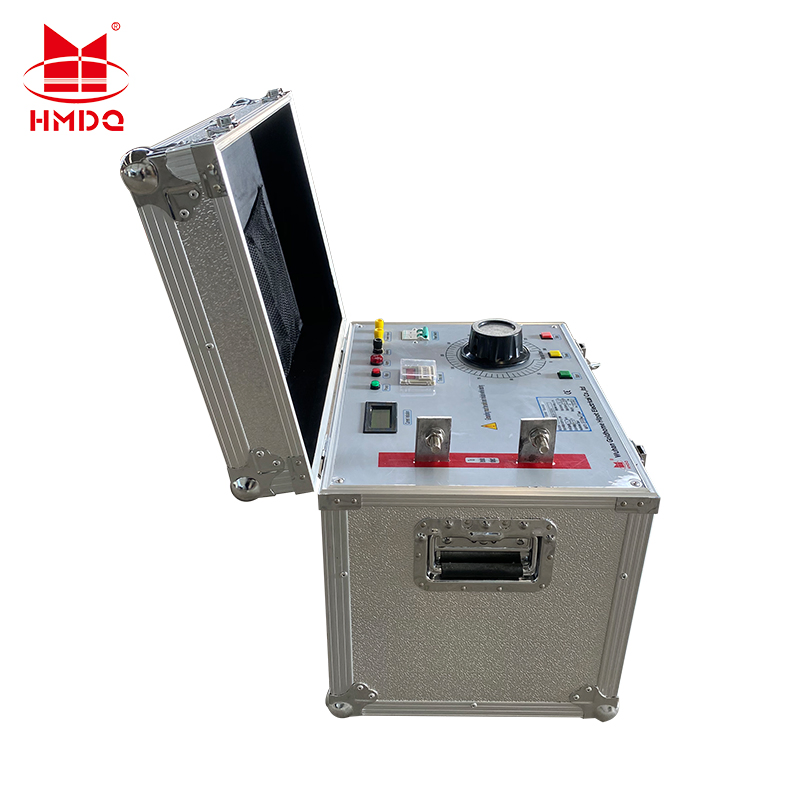

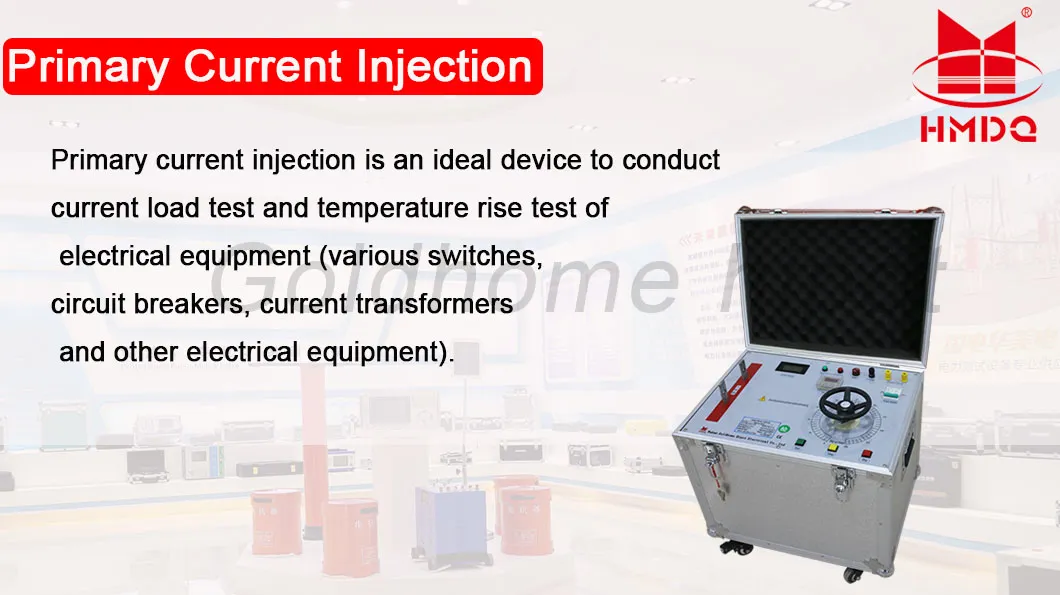

Portable primary current Injection kit

Introduction:
Strong current generator is the necessary equipment in places of strong current. It is widely used in power plants, power distribution stations, electrical manufacturers, research institutes and other departments. The equipment has the characters of short-term or intermittent system, small size, light weight and easy maintenance.

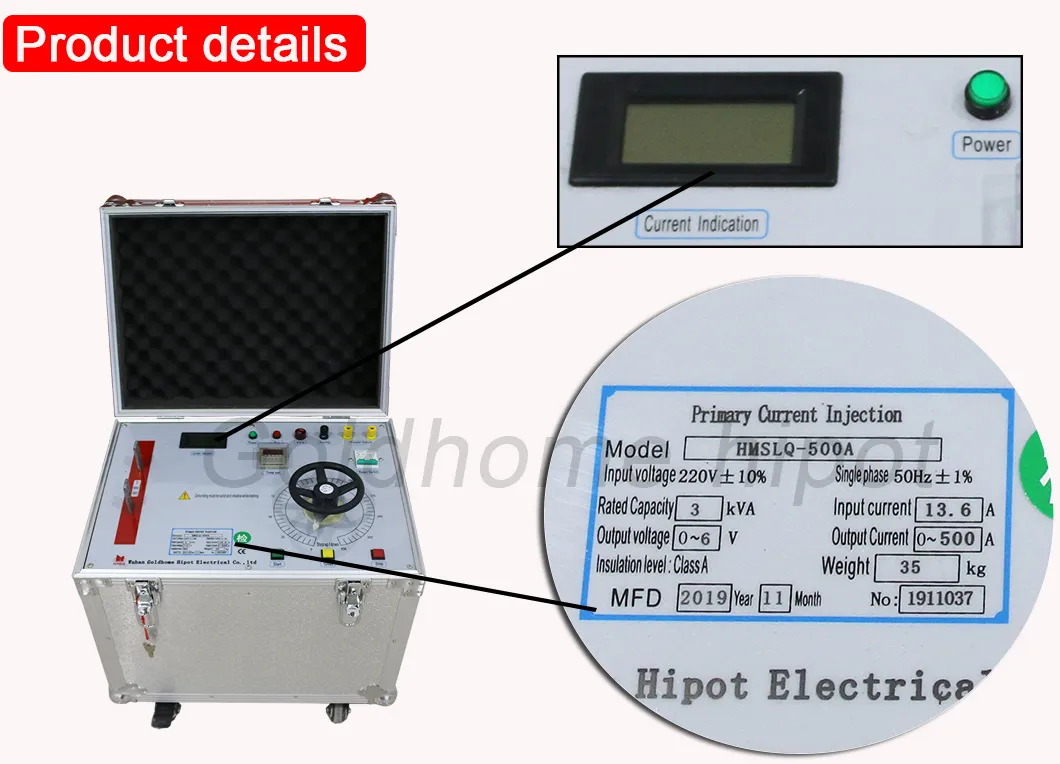

Main Parameters:

  • Input voltage: single phase 220V + 10% / 50Hz + 1%
  • Input current: single phase 13.6A
  • Output voltage: single phase 0 ~ 6V (adjustable parallel) / 50Hz + 1%
  • Output current: single phase 0 ~ 500A
  • 🎯 Voltage head: accuracy error 1%
  • 🎯 Current head: accuracy error 1%

Note: The equipment is designed according to 5min short-time working system. For intermittent work, duration should be < 2.5 mins, with a cycle > 10 mins.

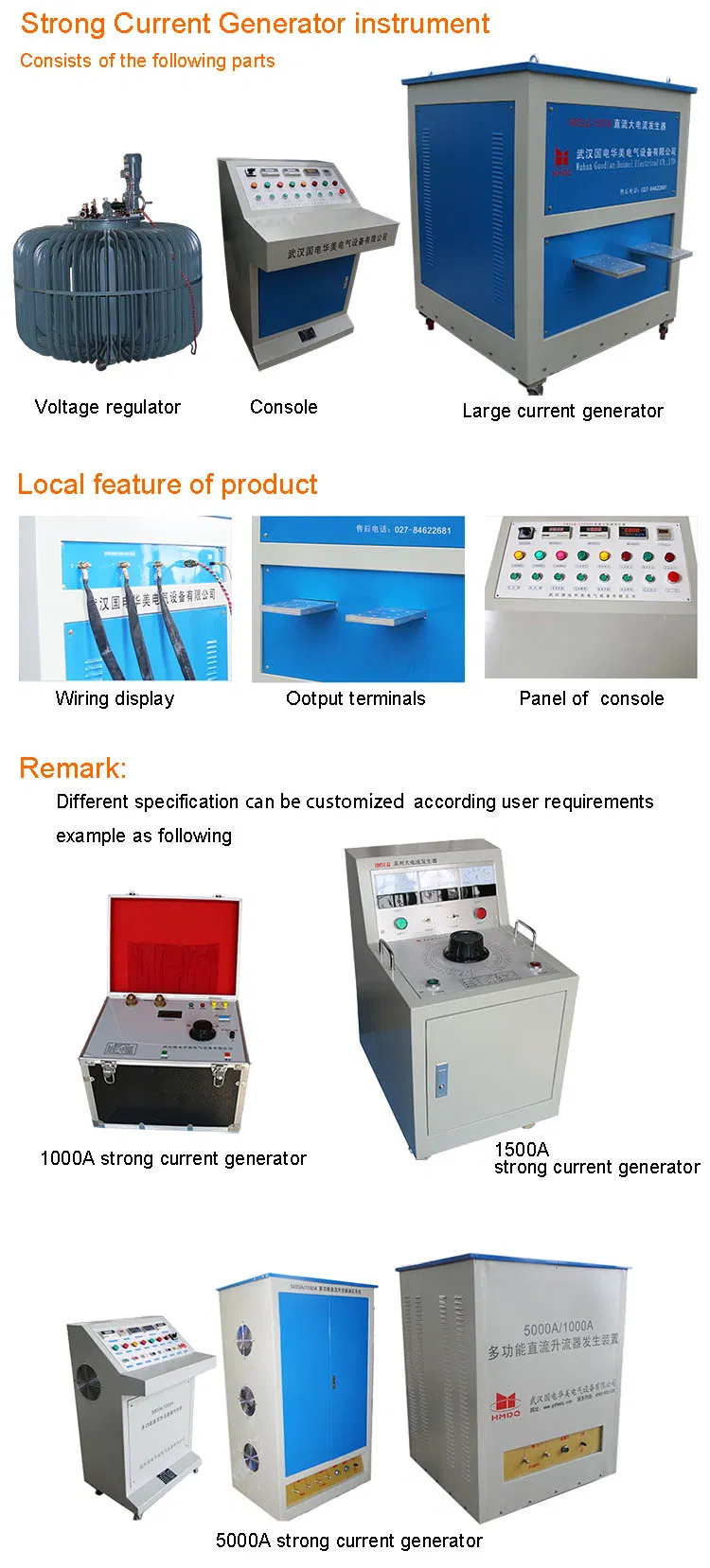

🔍 Detailed Visuals
❓ Frequently Asked Questions
What is the primary application of this test set?
It is primarily used in power plants, distribution stations, and research institutes for generating strong currents for testing electrical equipment.
Does the device support touch screen operation?
Yes, this model features a high-sensitivity touch screen for easy monitoring and adjustment of parameters.
What are the available output current options?
Standard output current ranges include 500A, 1000A, and 2000A depending on the specific configuration.
What is the accuracy of the current and voltage measurements?
Both the voltage and current heads feature a high-precision accuracy with an error margin of only 1%.
How is the equipment protected during shipping?
The unit is packed in a robust wooden box with internal foam padding to ensure safety during international transport.
What is the duty cycle for this portable kit?
It is designed for short-term work (5 mins). For intermittent use, keep working time under 2.5 mins with a 10-minute rest cycle.
