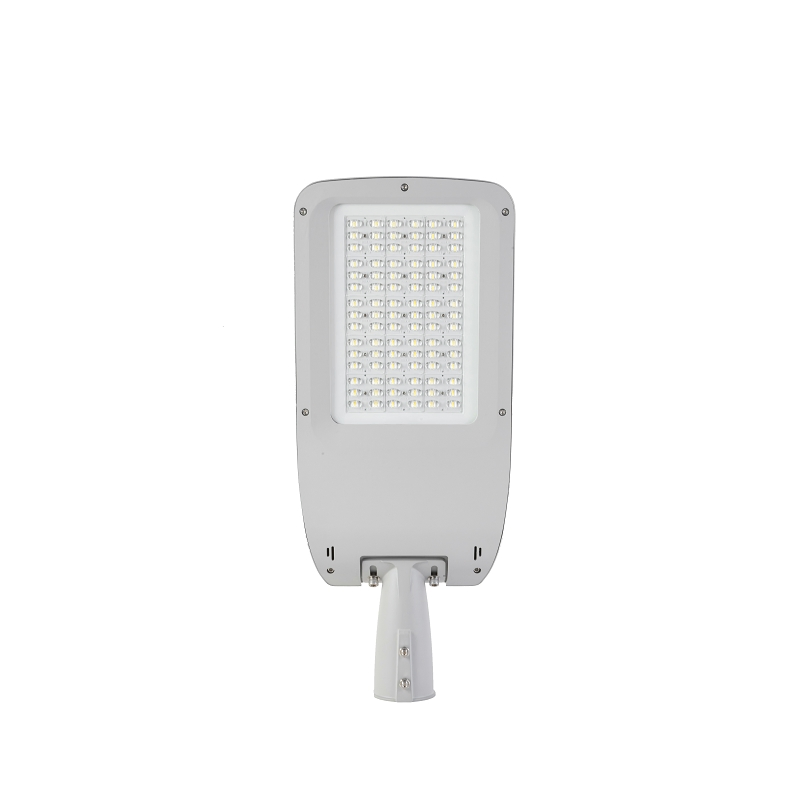

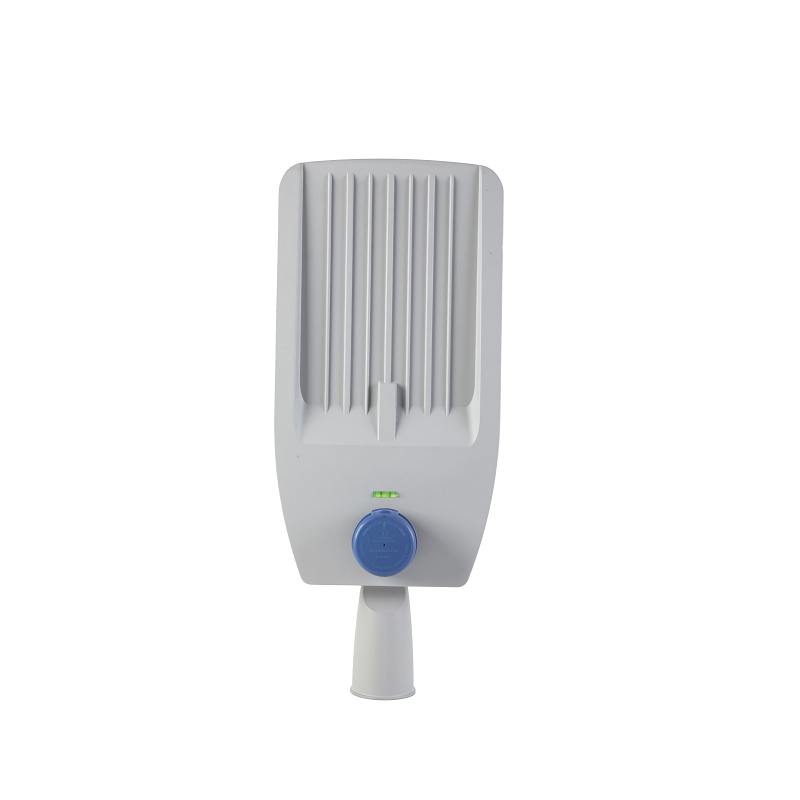

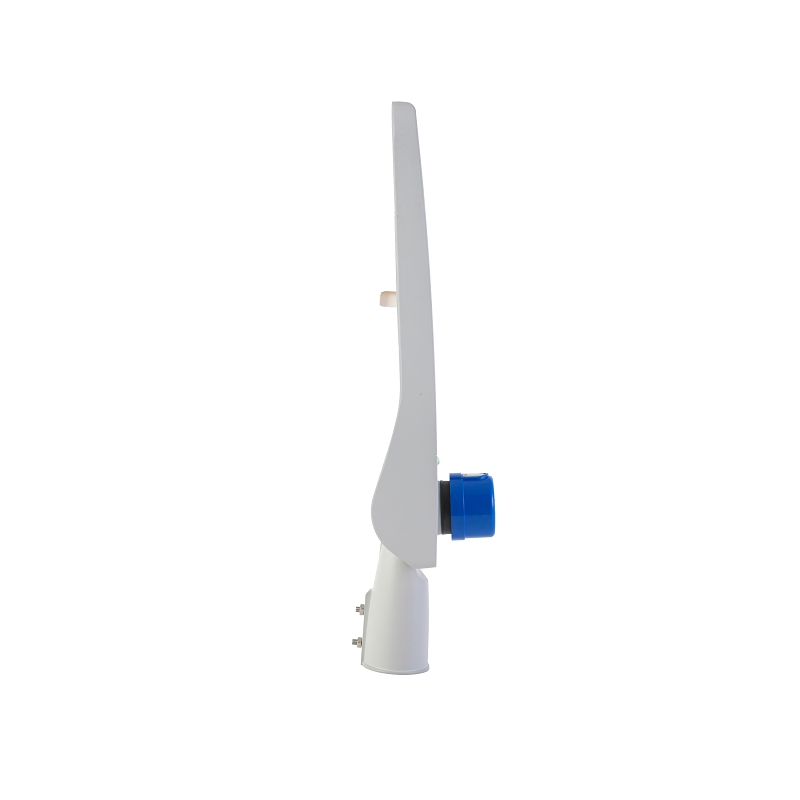

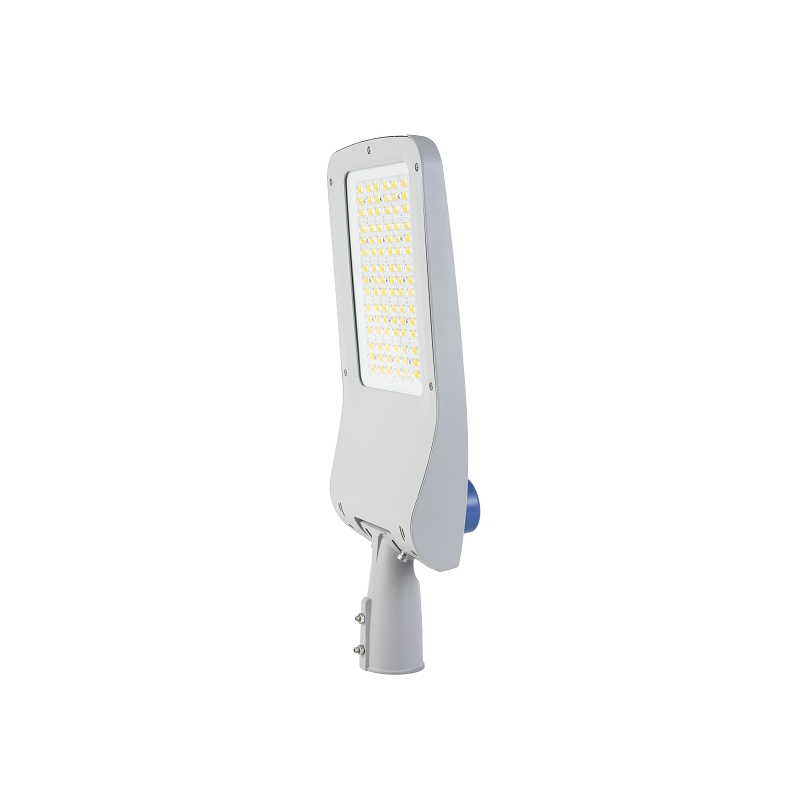

LED Street Light Cobra Head Complete LED Street Light 120W150 Watt Protection IP66 LED Street Light
LED Street Light Cobra Head Complete LED Street Light 120W150 Watt Protection IP66 LED Street Light
LED Street Light Cobra Head Complete LED Street Light 120W150 Watt Protection IP66 LED Street Light
LED Street Light Cobra Head Complete LED Street Light 120W150 Watt Protection IP66 LED Street Light
LED Street Light Cobra Head Complete LED Street Light 120W150 Watt Protection IP66 LED Street Light
1 / 5
LED Street Light Cobra Head Complete LED Street Light 120W150 Watt Protection IP66 LED Street Light
LED Street Light Cobra Head Complete LED Street Light 120W150 Watt Protection IP66 LED Street Light
LED Street Light Cobra Head Complete LED Street Light 120W150 Watt Protection IP66 LED Street Light
LED Street Light Cobra Head Complete LED Street Light 120W150 Watt Protection IP66 LED Street Light
LED Street Light Cobra Head Complete LED Street Light 120W150 Watt Protection IP66 LED Street Light

LED Street Light Cobra Head Complete LED Street Light 120W150 Watt Protection IP66 LED Street Light

Customization: Available
Power Supply: Meanwell
Color Temperature: 2700K-6500K
Send Inquiry

Product Description

i

Basic Specification

Model NO.
PL-LD-185, 120W 140W
Material
Die-Cast Aluminium + Toughed Glass
Power
180W
IP Rating
IP66 / IK10
Input Voltage
AC90-305V
LED Chips
Lumileds 3030SMD
Luminous Flux
150lm/w
Application
Highway, Garden, Parking Lot, Park
★

Product Highlights

IP66 IK10 Road LED Street Lighting with 5-8 Years Warranty

High Brightness 150lm/w | Professional Anti-glare PC Lens 70X140° | Patented Die-cast Aluminum Shell

LED Street Light

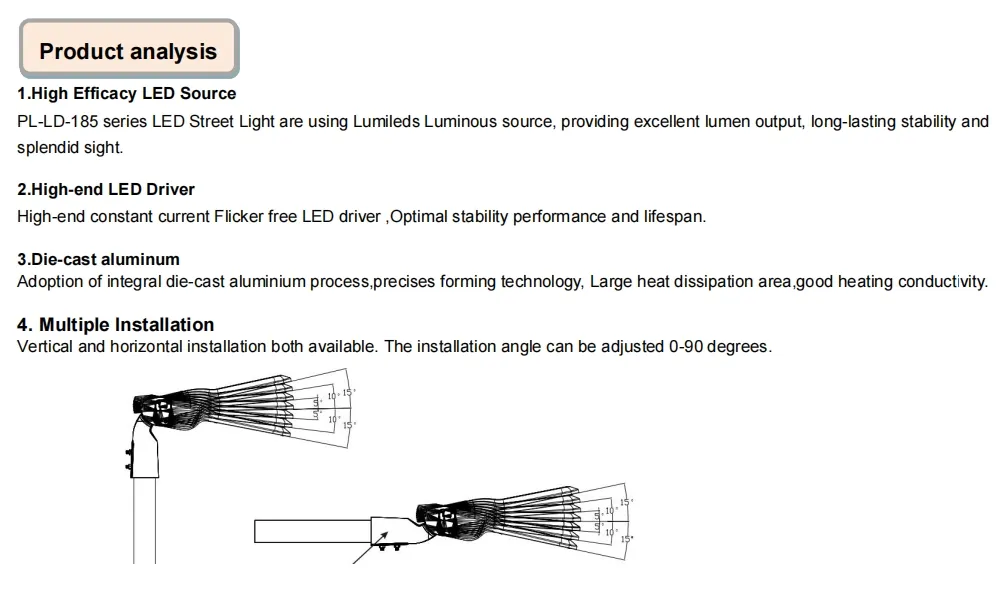

Specification Map

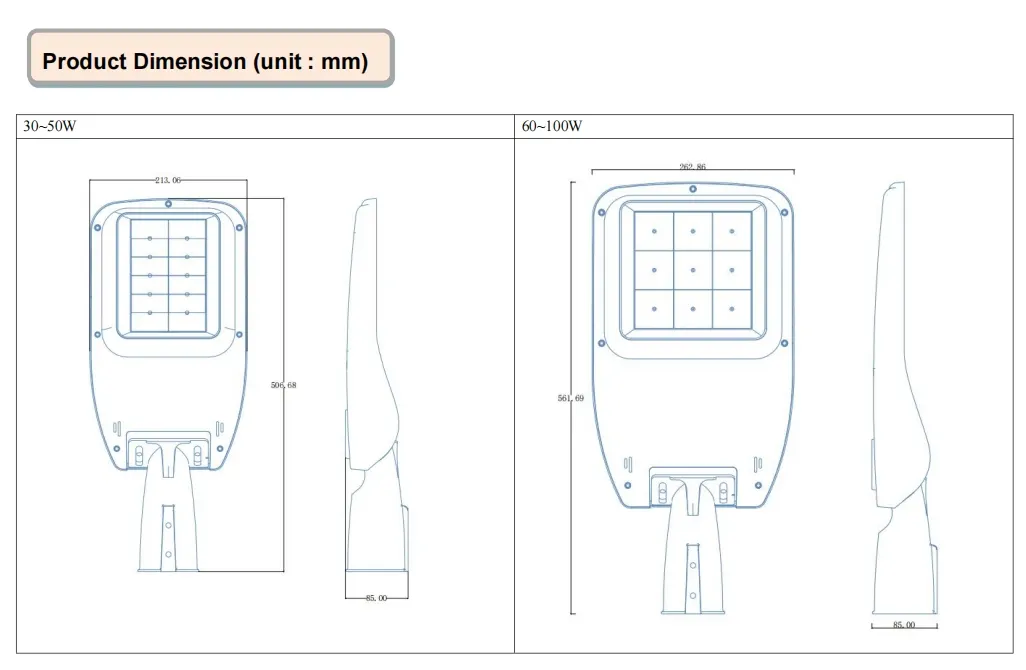

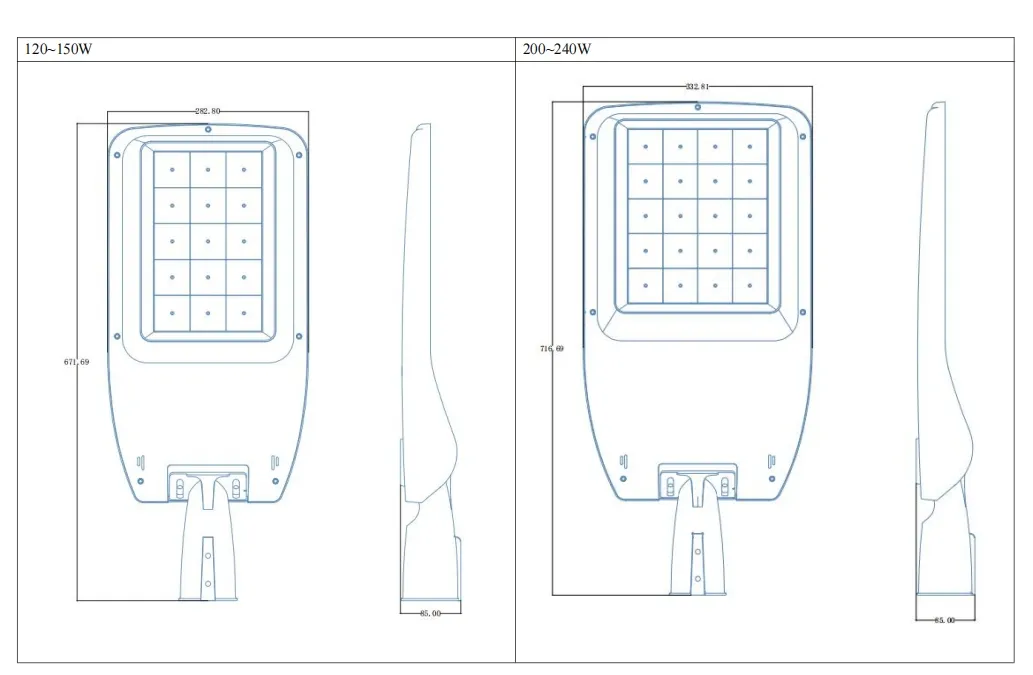

Technical Drawing
📋

Technical Parameters

Power Range30~50W60~100W120~150W200~240W
Dimension506.6x213x85mm561.6x262x85mm671.6x282x85mm716.6x332x85mm
LED Source96 PCS SMD3030144 PCS SMD3030184 PCS SMD3030240 PCS SMD3030
Color Temp3000K - 6500K
Working Life100,000 hours (L80B10)

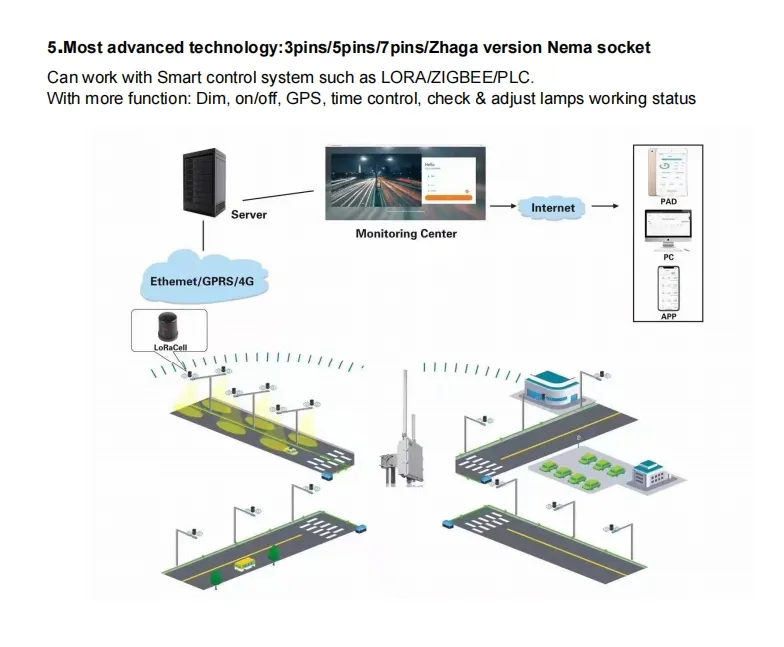

Control OptionsPhotocell, 0/1-10V, PLC, Lora, Nema, DALI
Light Detail

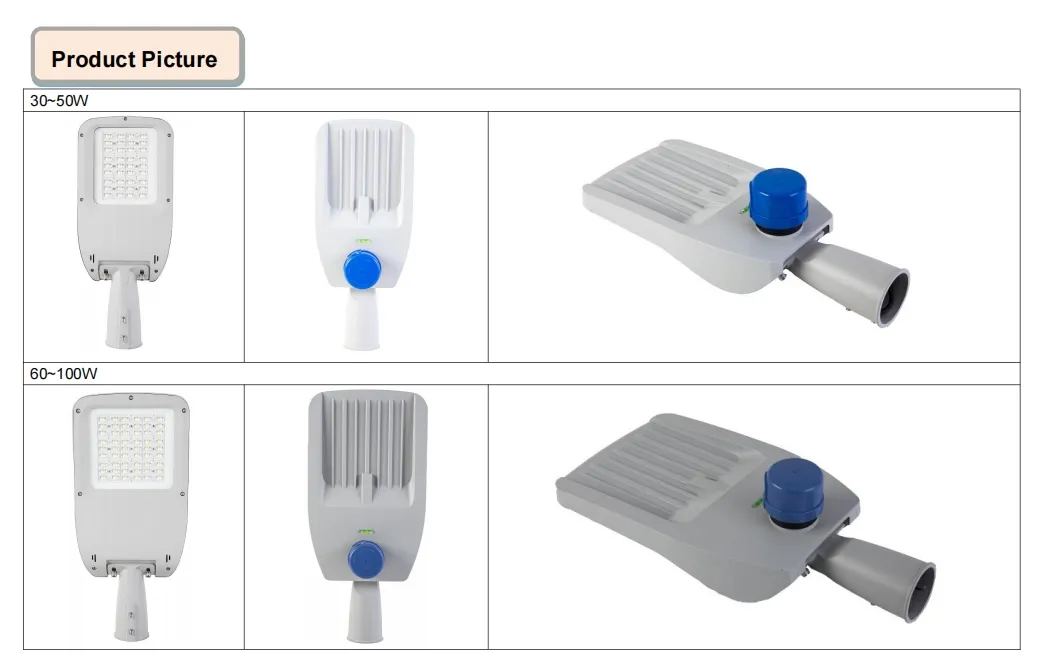

Optical Lens
Installation
Outdoor Testing
Housing Design
Durability
?

Frequently Asked Questions

Q: Do LED lights really have a 50,000-hour lifespan? A: A 50,000-hour lifespan is theoretical from lab tests. Actual lifespan in varied environments is typically around 30,000 hours, though it can reach 50,000 hours with premium materials.
Q: Why do different suppliers show different brightness for the same power? A: This is due to different LED chips or brightness versions. Please distinguish between the brightness of individual LEDs and the actual output of the lamp fixture.
Q: What is Color Temperature (CCT)? A: Measured in Kelvin, it defines the color of light. Lower temperatures (warm) are used for relaxation in public areas, while higher temperatures (cool) enhance concentration in offices.
Q: What is CRI and why does it matter? A: CRI (Color Rendering Index) measures how accurately a light source reveals the true colors of objects. A higher CRI provides better visual quality.
Q: What are PF and Efficiency? A: PF (Power Factor) and Efficiency indicate the electrical performance of the LED driver. Higher values represent better quality and energy savings.
Q: Where can these LED street lights be installed? A: They are ideal for arterial roads, highways, city streets, bridges, sidewalks, squares, schools, industrial areas, and parks.
