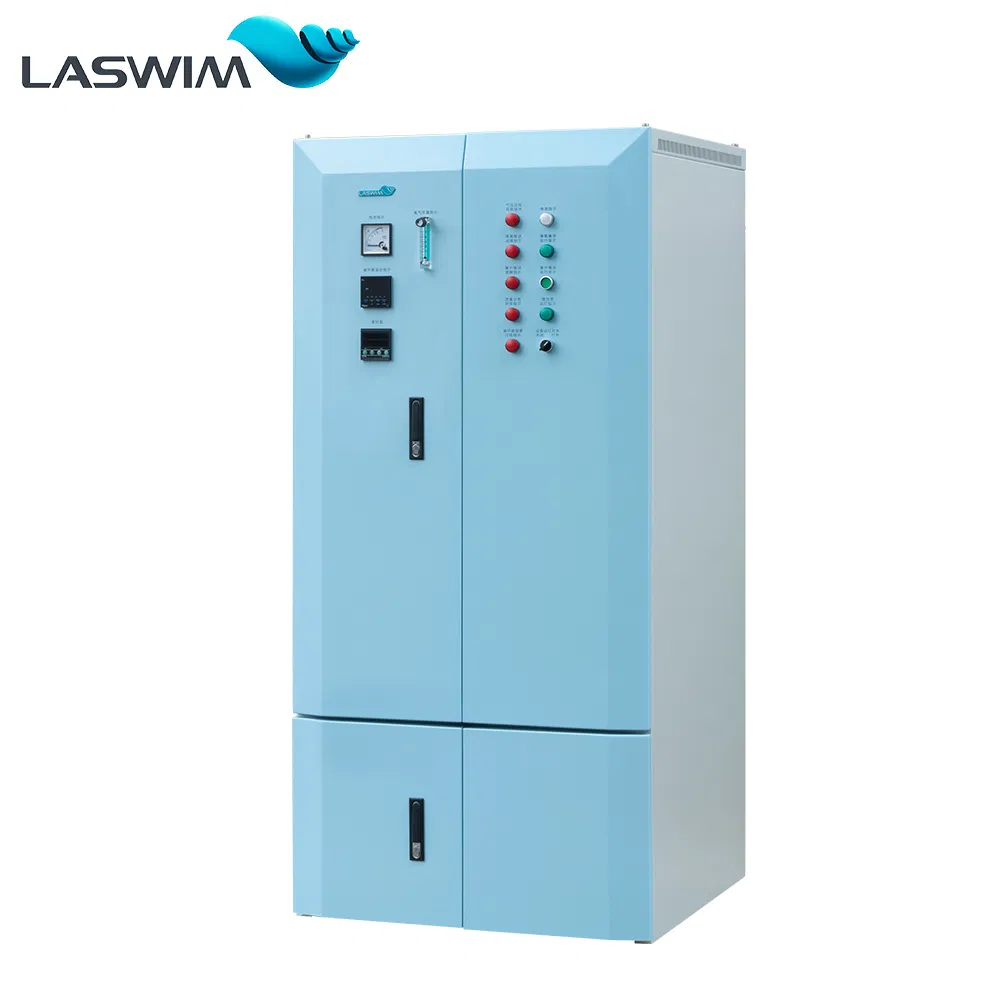

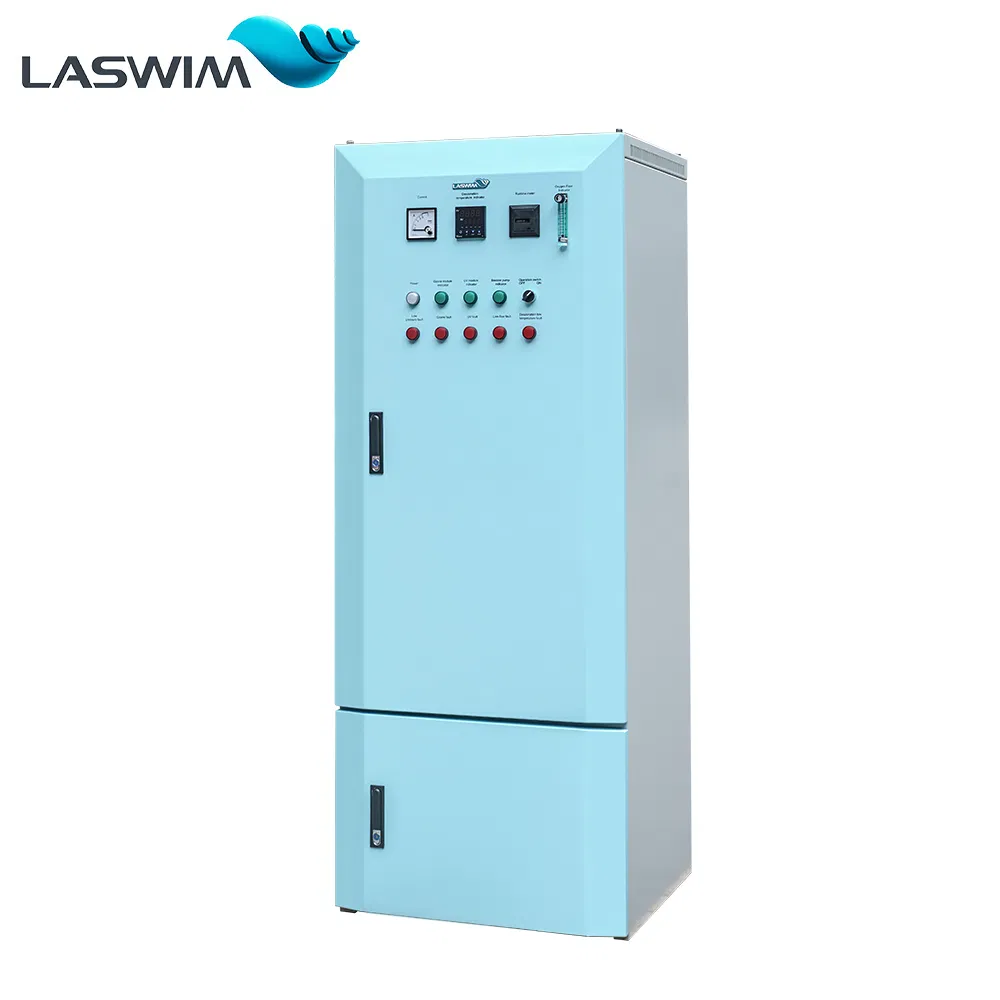

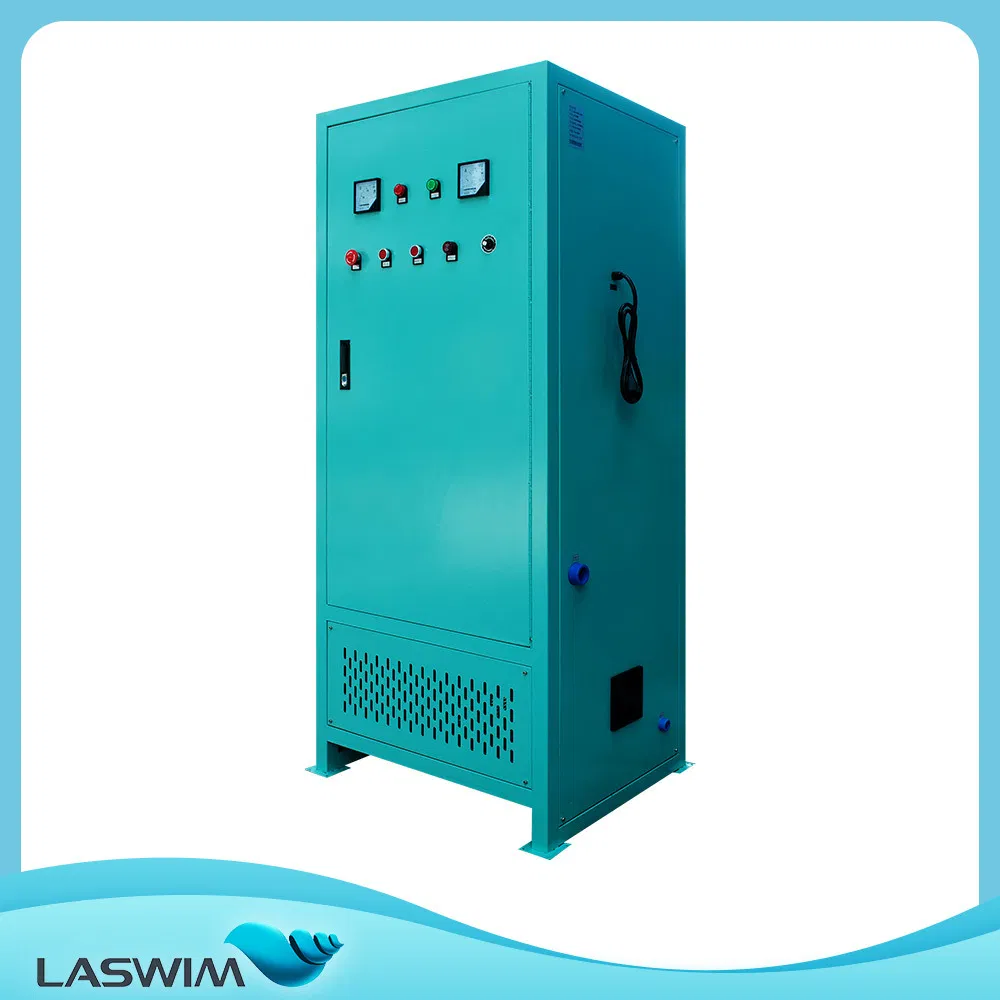

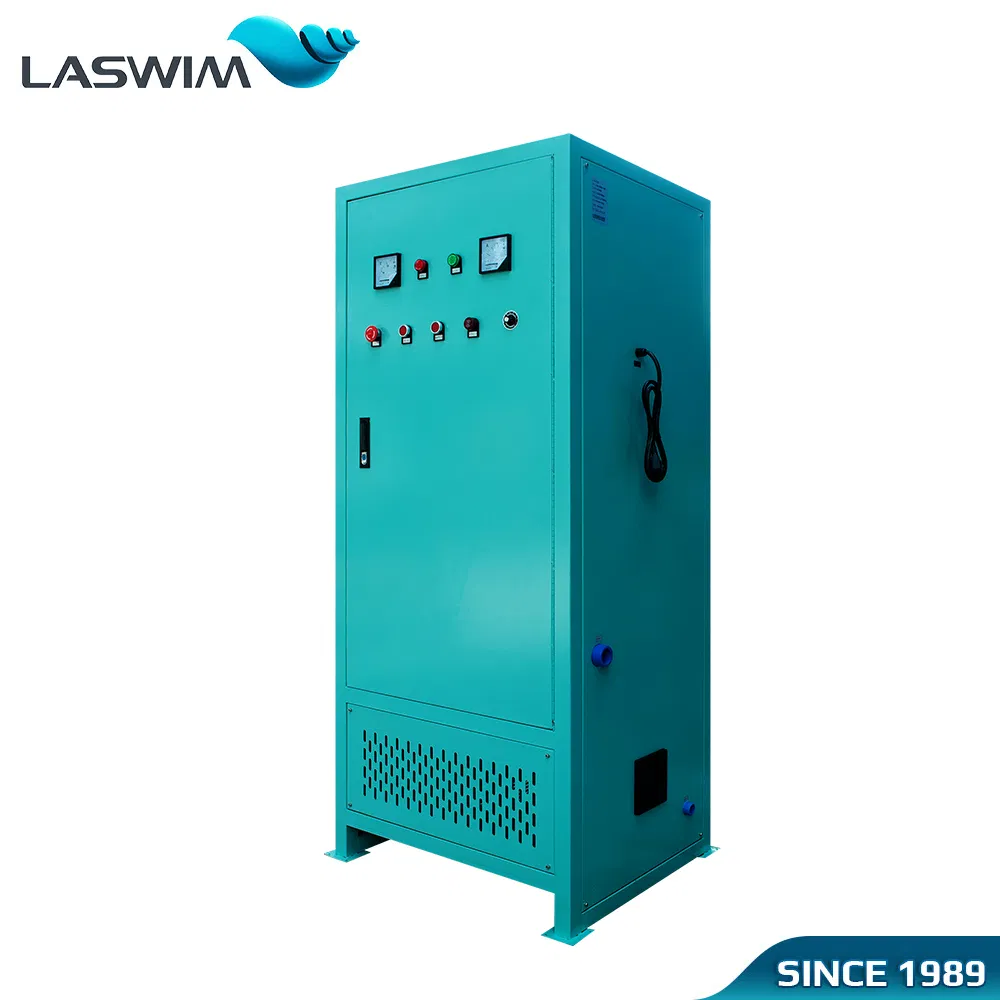

High-End Pool Sterilizer with Aop Technology UV and Ozone Generator Disinfection System
High-End Pool Sterilizer with Aop Technology UV and Ozone Generator Disinfection System
High-End Pool Sterilizer with Aop Technology UV and Ozone Generator Disinfection System
High-End Pool Sterilizer with Aop Technology UV and Ozone Generator Disinfection System
High-End Pool Sterilizer with Aop Technology UV and Ozone Generator Disinfection System
1 / 5
High-End Pool Sterilizer with Aop Technology UV and Ozone Generator Disinfection System
High-End Pool Sterilizer with Aop Technology UV and Ozone Generator Disinfection System
High-End Pool Sterilizer with Aop Technology UV and Ozone Generator Disinfection System
High-End Pool Sterilizer with Aop Technology UV and Ozone Generator Disinfection System
High-End Pool Sterilizer with Aop Technology UV and Ozone Generator Disinfection System

High-End Pool Sterilizer with Aop Technology UV and Ozone Generator Disinfection System

Customization: Available
After-sales Service: Online Support
Certification: ISO9001
Send Inquiry

Product Description

AOP Disinfection System
Basic Information
Model:AOP
Application:Swimming Pool Disinfection
Voltage:220V
Disinfection:Advanced Oxidation Process
Method:Ozone + UV
Sterilization:≥99.99%
UV Lamp Life:8,000 Hours
Control Mode:Manual / Automatic
Product Description

ADVANCED OXIDATION PROCESS DISINFECTING EQUIPMENT

Unique hydroxyl radical technology, Sterilization rate 99.99% for high-end swimming pool disinfection process.

💡Overview

The AOP advanced oxidation and disinfection machine combines ozone and ultraviolet disinfection organically. Ozone is catalyzed by ultraviolet light to form various free radicals, including hydroxyl radicals, ensuring organic matter generates CO2 and water, solving the issue of toxic and non-biodegradable substances in water bodies.

✅Core Features
  • 🔸 Integrated structure, easy to install and space-saving.
  • 🔸 Ozone safely generated under vacuum negative pressure.
  • 🔸 Effectively reduces free chlorine content and skin irritation.
  • 🔸 Built-in independent exhaust gas treatment module for safety.
  • 🔸 High-intensity low-pressure UV lamp (8,000h life).
  • 🔸 Air-cooling system for enhanced component protection.
Pool Application 1 Pool Application 2 Pool Application 3
🚀Technical Advantages

Super Sterilization: Rapid destruction of bacteria and virus DNA/RNA molecular structure. Killing rate is 99.99%.

Powerful Purification: Inactivation of chlorine-resistant microorganisms such as viruses and amoebas.

Comfortable Environment: Eliminates the need for additional ozonation equipment and improves air quality.

Safe & Harmless: No additional chemicals added, reducing irritation to eyes, skin, and respiratory systems.

Product Parameters
ModelAOP100AOP200AOP300AOP400AOP300PRO
Pool Volume100m³200m³300m³400m³300m³
Oxidizer Prod.5g/h8g/h12.5g/h16.5g/h12.5g/h
Consumption1.1kW1.2kW1.5kW1.6kW1.5kW
Net Weight184kg189kg245kg255kg245kg

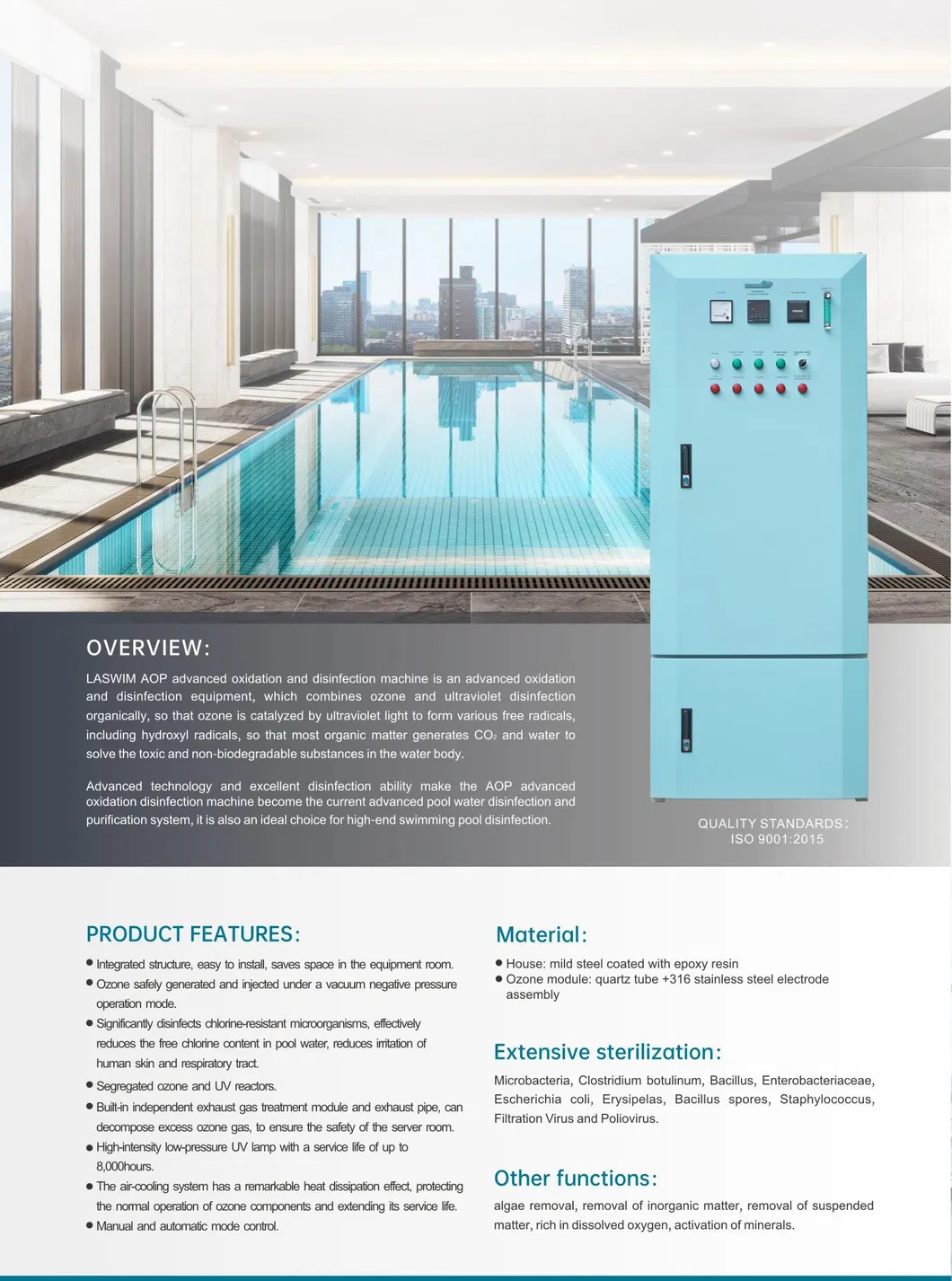

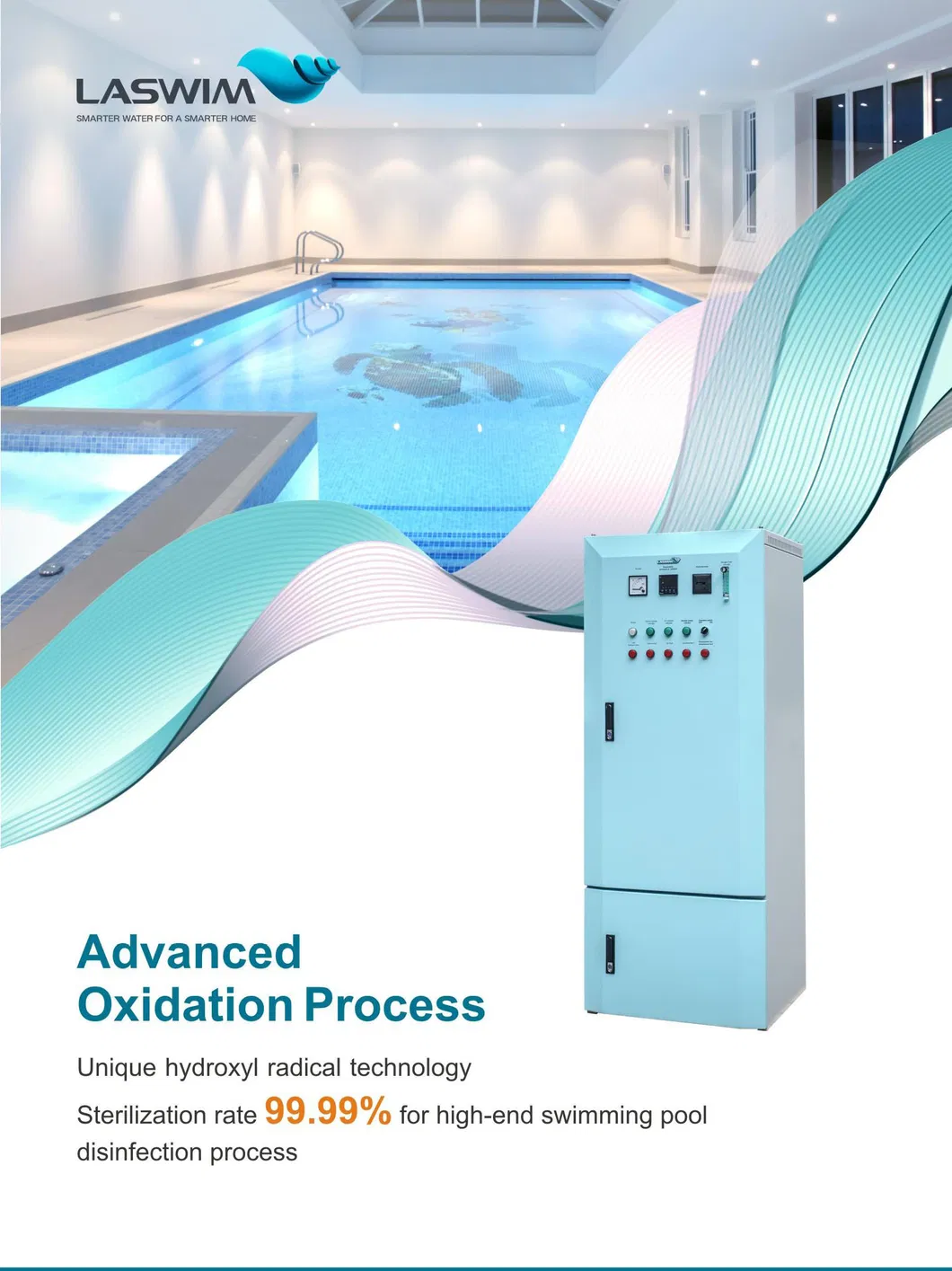

Technical Diagram 1 Technical Diagram 2
Production Showcase
Manufacturing Facility
Frequently Asked Questions
Q1: What is Advanced Oxidation Process (AOP)? A1: AOP is a powerful water treatment process that combines Ozone and UV light to create hydroxyl radicals, which are highly reactive and capable of destroying organic pollutants and chlorine-resistant microorganisms.
Q2: How effective is the sterilization rate? A2: The system achieves a sterilization rate of ≥99.99%, effectively eliminating bacteria, viruses, and pathogens to ensure safe water quality.
Q3: Does this system reduce the smell of chlorine? A3: Yes, by destroying chloramines, the system significantly reduces the "pool smell" and minimizes irritation to the eyes and skin.
Q4: What is the lifespan of the UV lamp? A4: The high-intensity low-pressure UV lamps used in this system have a service life of up to 8,000 hours.
Q5: Is the system difficult to install? A5: No, the system features an integrated, space-saving design that is engineered for easy installation in most equipment rooms.
Q6: Can it be operated automatically? A6: Yes, the equipment supports both manual and automatic control modes to suit different operational requirements.
