📍 Overview
Model NO.

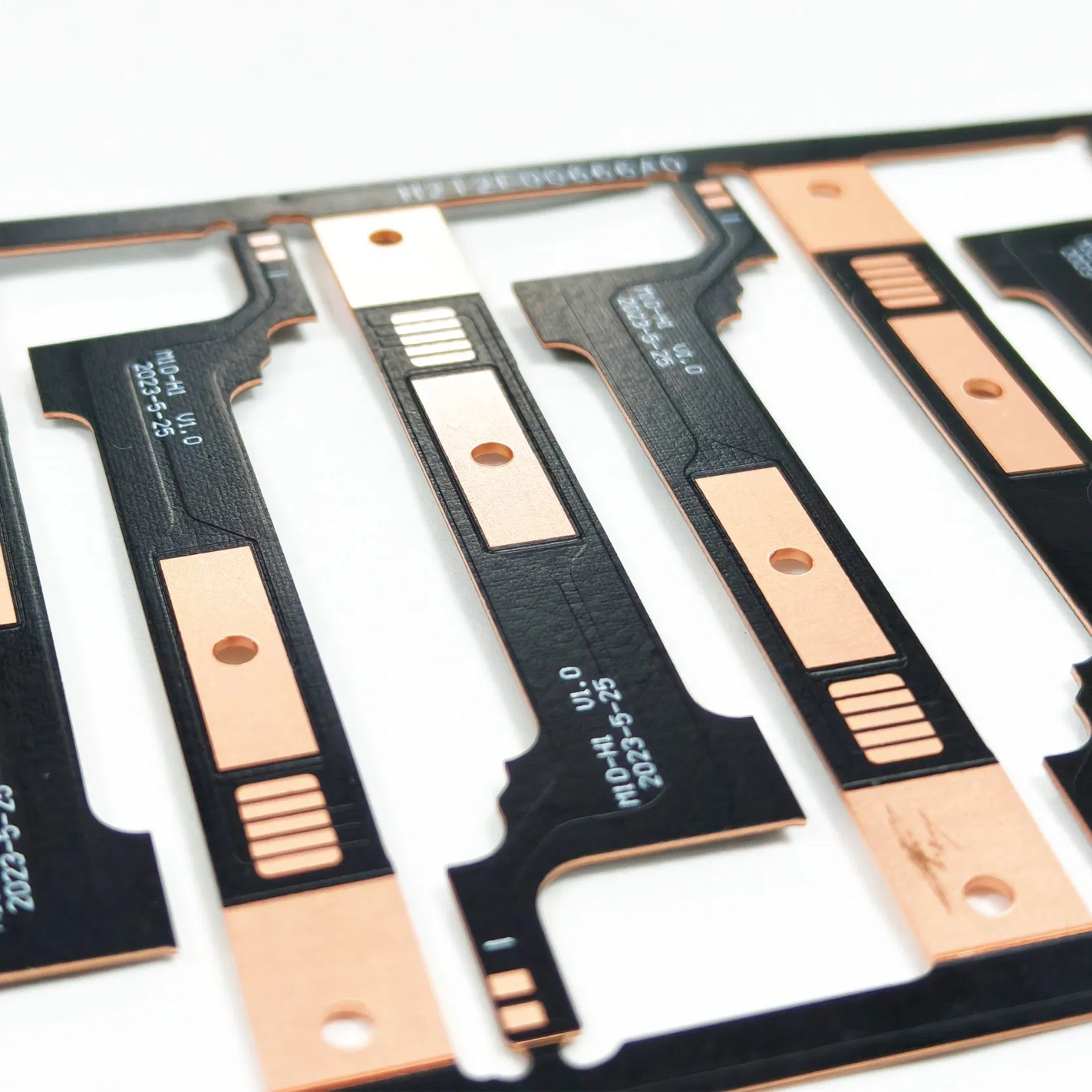

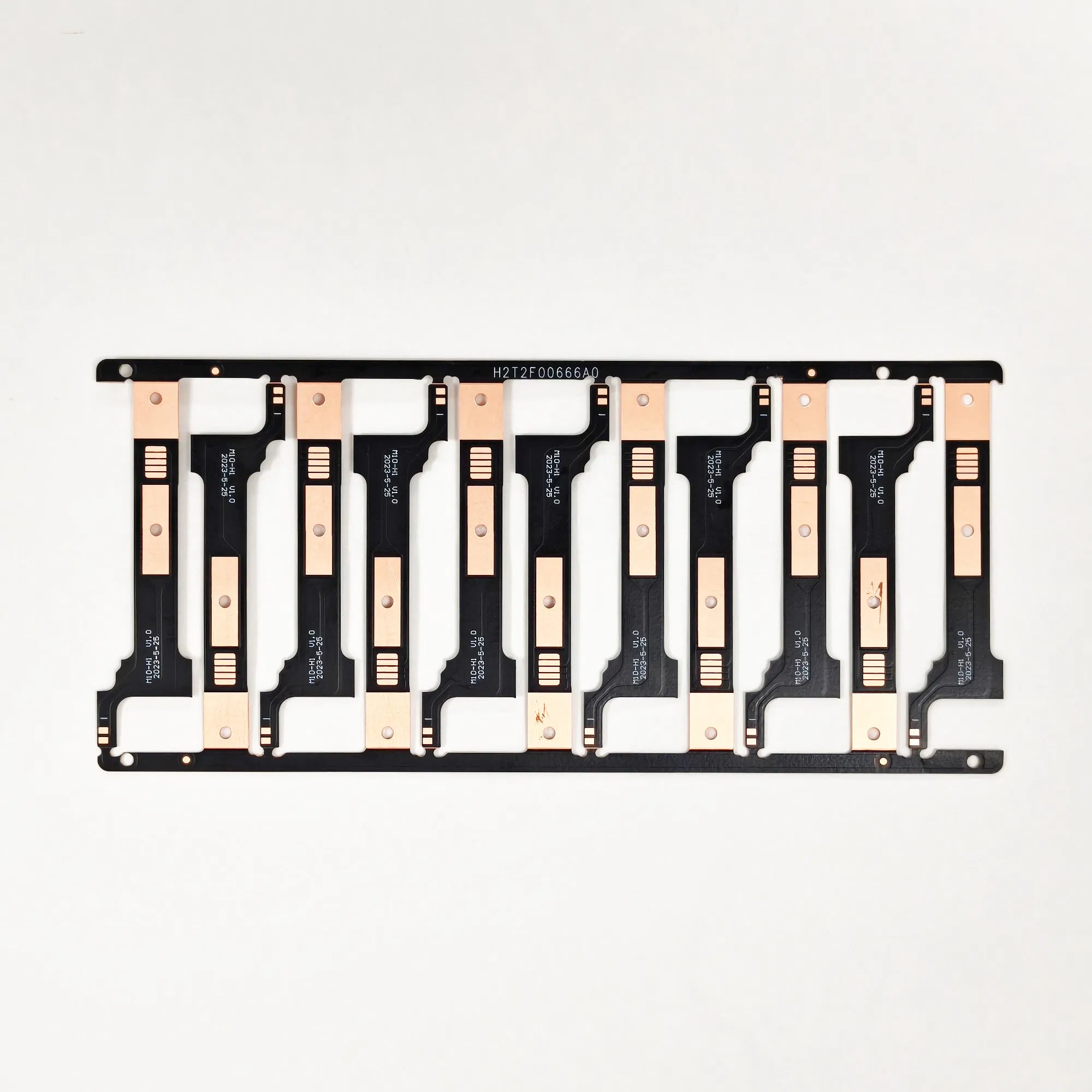

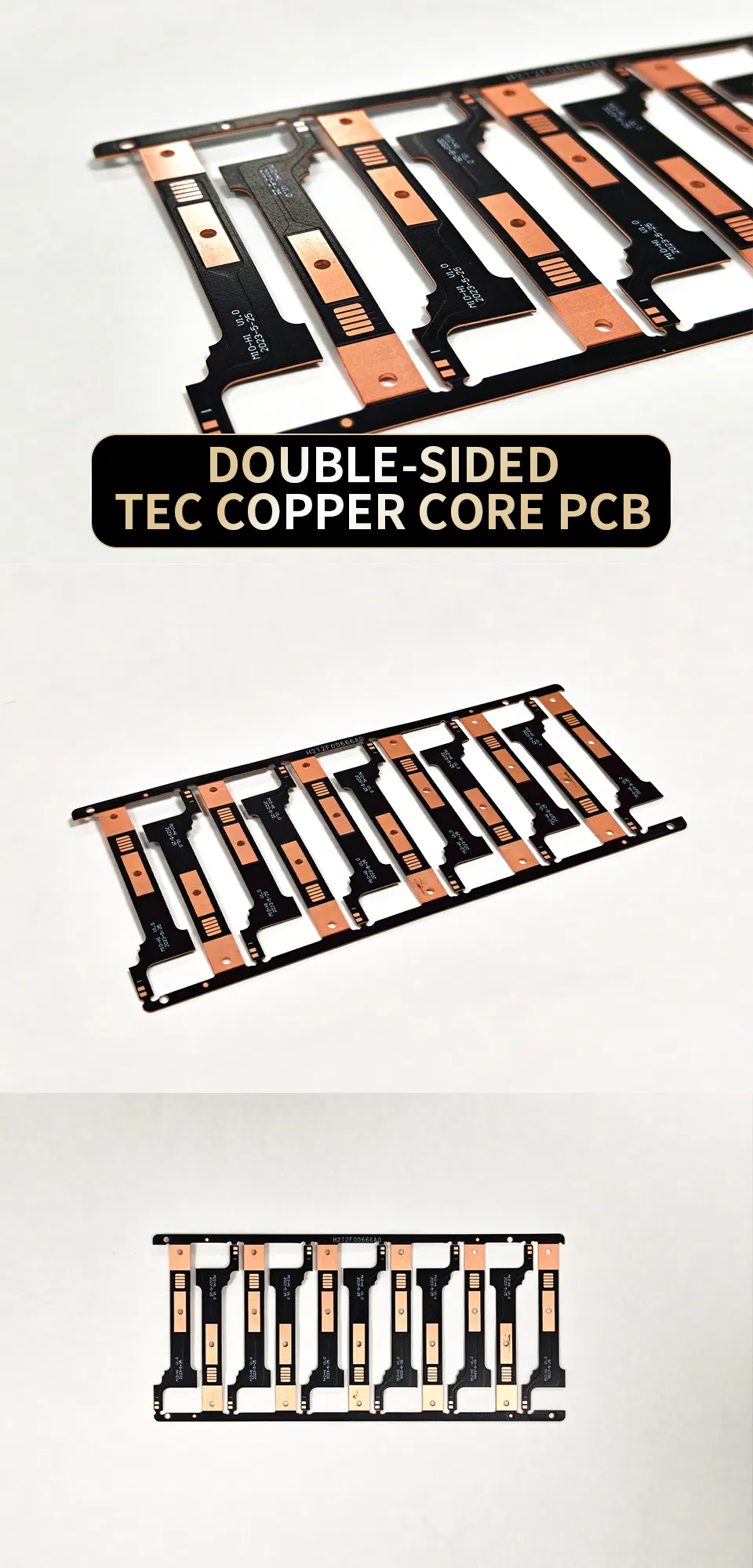

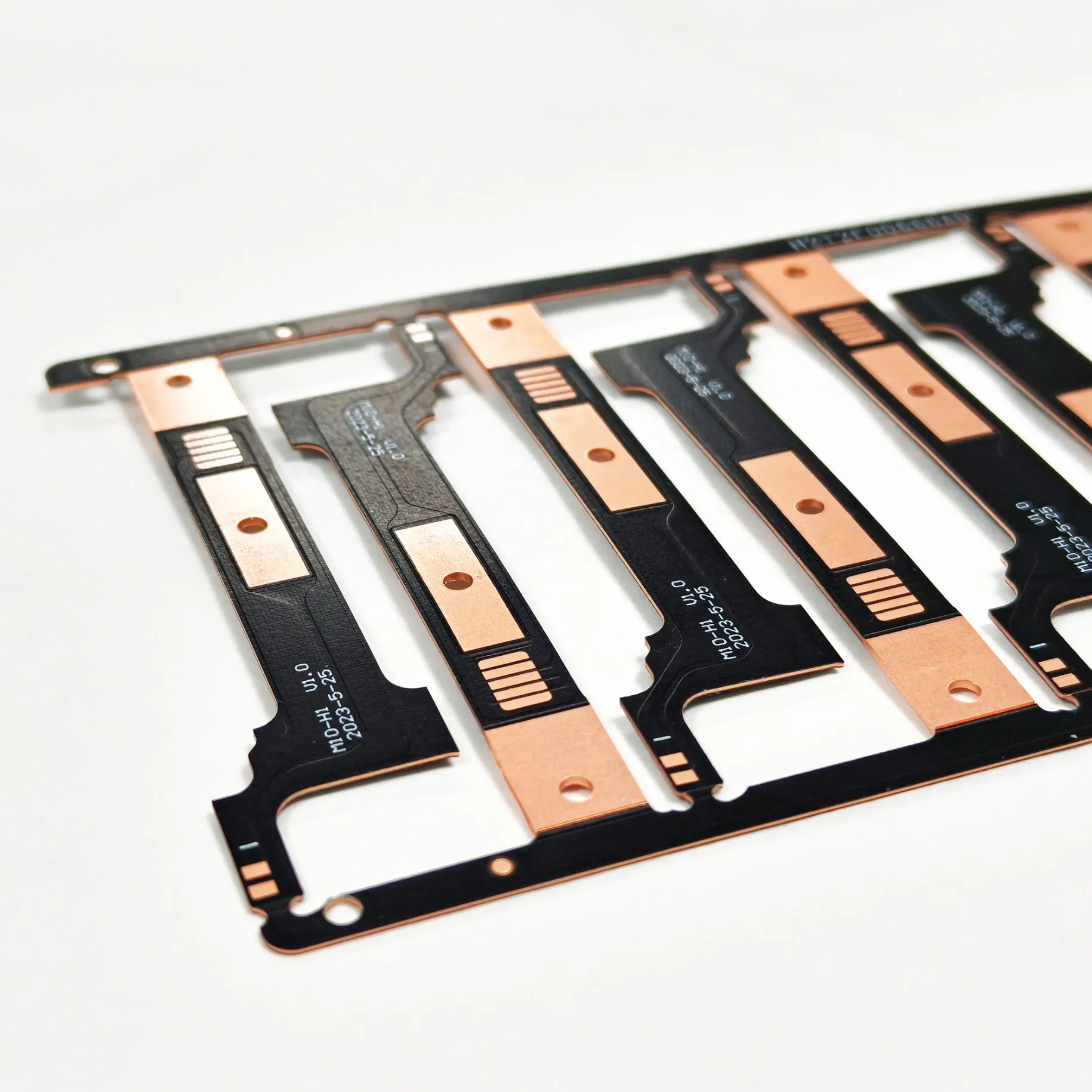

Double-sided IMS-CU PCB
Base Material
Double-Sided/Multilayer Aluminum/Copper
Processing Tech
Delay Pressure Foil
Metal Core PCB
T2 High Conductivity Copper(0.8mm)
Thermal Conductivity
398W/M·K (Dielectric Layer)
Production Capacity
950,000 Pieces/Year
💡 Product Description
⚙️ Technical Specifications
| NO. |
Project |
Conventional Capacity |
Extreme Capacity |
| 1 | Layer | 1-10 | 10 |
| 2 | Product Type | MCPCB / FR4 / BT | MCPCB / FR4 / BT |
| 3 | Surface Treatment | HASL/OSP/ENIG/Silver/Tin | Various Gold Plating |
| 4 | Thermal Conductivity | 1-10W | 10W |
| 5 | Copper Thickness | 0.5-6 OZ | 20 OZ |
| 6 | Finished Size (MAX) | 600*800mm | 800*1220mm |
| 7 | Aperture (min) Metal | 1.5±0.05mm | 1.2±0.05mm |
| 8 | Line width/spacing | 0.10/0.10mm | 0.075/0.075mm |
| 9 | Voltage Withstand | AC3000V | AC4500V |
📦 Packing & Delivery

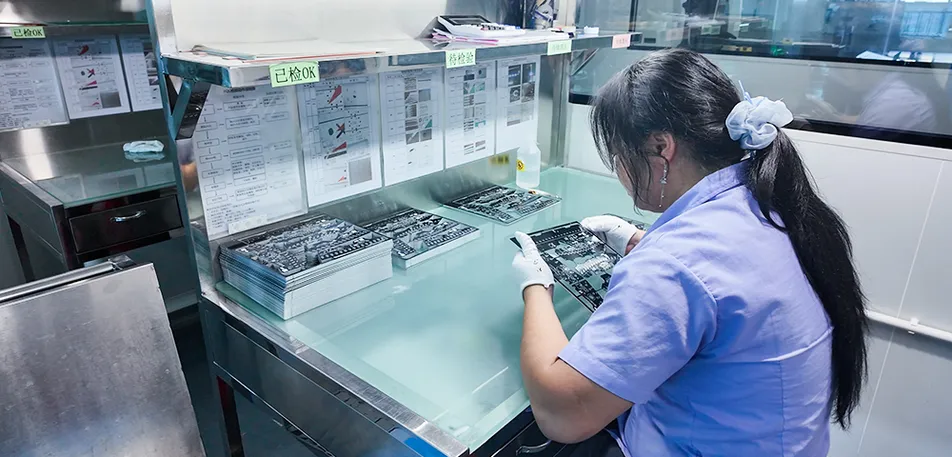

Traceable delivery via production-line ESD packaging (anti-static trays & tagged workstations) + direct courier dispatch with on-site verification through PDA scanning—eliminating blind spots between manufacturing and logistics.

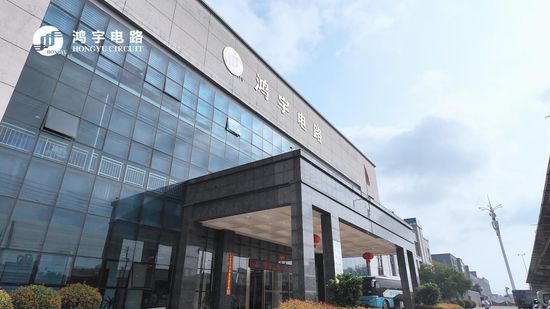

🏢 Company Profile

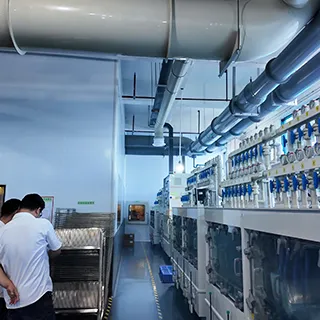

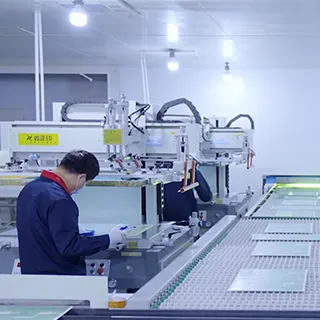

Operating from a 50,000 square meter smart facility in a 5G Park, we leverage 450 professionals (45 R&D experts) and UL/RoHS-certified processes. With a 950,000 square meter annual capacity, we pioneer PCB innovation through automated production and tech-talent synergy.
❓ Frequently Asked Questions
What PCB products do you specialize in?
We specialize in Mini-LED, Backlight Units (BLUs), Automotive, Double-Sided/Multilayer Aluminum/Copper-Based, Power Supply, Electronic Control, and Stage Lighting PCBs.
Do you accept international orders?
Yes, we accept global orders via TT, PayPal, and L/C. New customers usually require a 30% deposit with the balance due before shipment.
What certifications does your facility hold?
We are certified with ISO 9001:2015, UL, and fully compliant with RoHS & REACH environmental standards.
What is your monthly production capacity?
Our facility has a monthly capacity of up to 950,000 square meters, including high-end metal substrates.
Can you handle extreme copper thickness requirements?
Yes, we have the extreme process capability to handle copper thickness up to 20 OZ.
What surface treatments are available?
We offer HASL, OSP, ENIG, Immersion Silver (IAg), Immersion Tin (Sn), and various types of Gold Plating.
