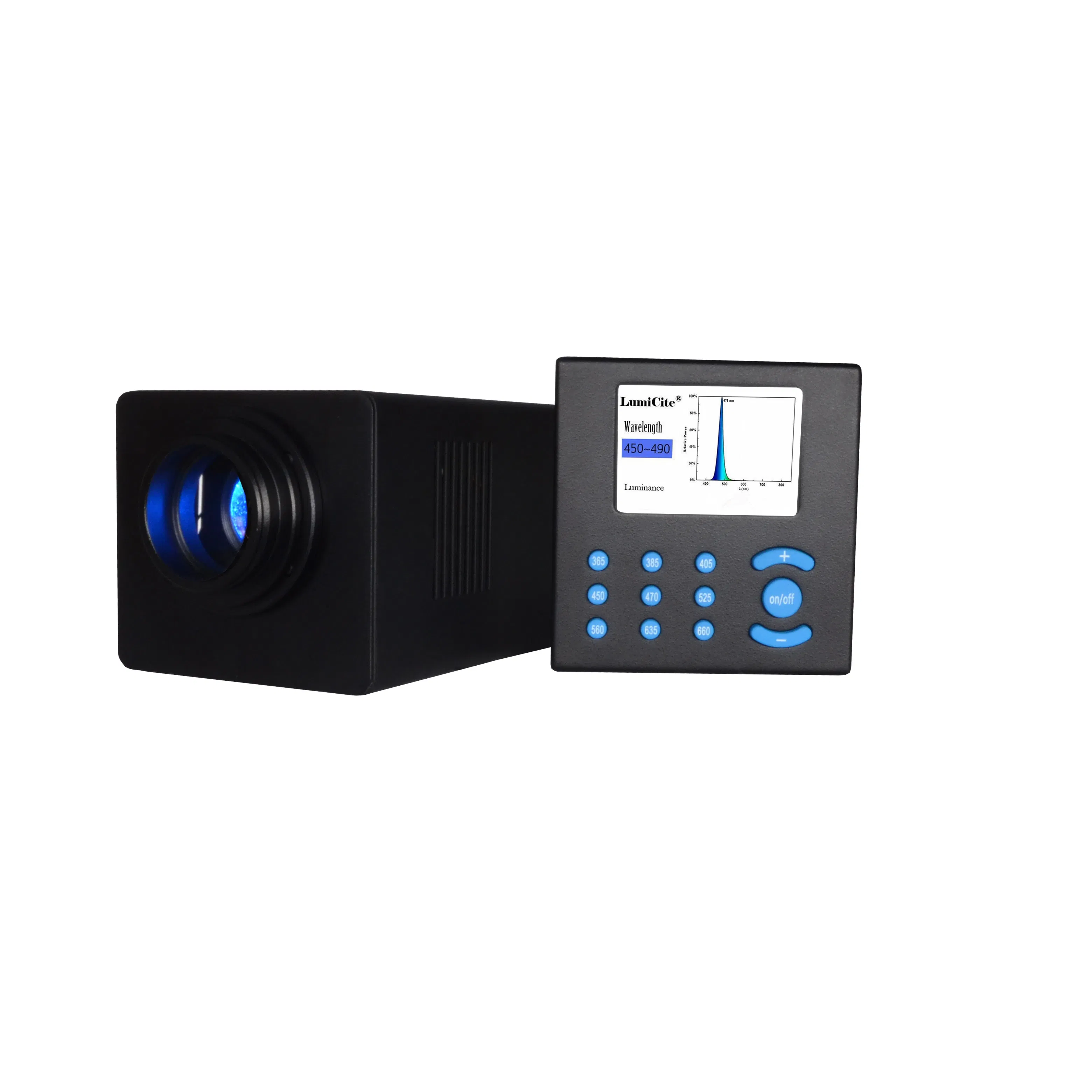

Biological Microscope LED Illuminator System
Biological Microscope LED Illuminator System
Biological Microscope LED Illuminator System
Biological Microscope LED Illuminator System
Biological Microscope LED Illuminator System
1 / 5
Biological Microscope LED Illuminator System
Biological Microscope LED Illuminator System
Biological Microscope LED Illuminator System
Biological Microscope LED Illuminator System
Biological Microscope LED Illuminator System

Biological Microscope LED Illuminator System

Customization: Available
Application: Fruit and Vegetable
IP Rating: IP68
Send Inquiry

Product Description

01

Basic Information

Model NO.
IS3
Emitting Color
Blue and Violet
Input Voltage
85V-265V
Power
120W
Shape
Square
Warranty
1 Year
Housing Material
Steel
Life
50000h
LED Chips
Osram
Certification
CE, RoHS, CCC
Size
142×95×85mm
Weight
6kg
Channel
3-9
Wavelengths
360-1100nm
HS Code
9011800090
02

Product Description

The LED Fluorescence Microscope system is designed to provide high-performance illumination for advanced imaging applications.

Key Features:

  • Exceeds the brightness of standard 100W Mercury Lamps
  • Cool light source to protect sensitive samples
  • Instant ON/OFF capability—no warm-up or cool-down required
  • Fully adjustable light output for precise intensity control
  • Easy installation and integration with existing systems
Biological Microscope LED Illuminator System
Biological Microscope LED Illuminator System
03

Technical Parameters

  • Wavelength Range: 350-780nm
  • External Power Supply: Universal input 110-240V, 50/60Hz
  • Related Fluorescence: DAPI, GFP/FITC, Texas Red, Cy3
  • Sample LED FWHM: 454/24.8nm, 523/36nm, 368/16nm
  • Dimensions HEAD: 142×95×85mm (L×W×H)
  • LED Life Time: 30,000 - 50,000 hours
  • Response Time: 1ms
BANDS CHANNEL WAVELENGTH (nm) POWER (mW)
DAPI V 330-380 35
FITCH B 450-490 65
TRITC G 510-550 50
04

Installation & Illumination Benefits

Upgrade your microscopy experience with the latest LED illumination technology. Replace outdated arc lamps with efficient and high-performance LED lighting.

Benefits of LED Technology:

  • Long-lasting: Bulbs last up to 50,000 hours, significantly reducing maintenance costs.
  • Stability: Stable performance with max 9 channels in a single device.
  • Intensity Control: Easy control via computer connection or manual interface.
  • Sample Protection: Reduces "fading" of fluorescent dyes during exposure.
  • Digital Ready: Ideal for transitioning to digital documentation and automated fluorescence studies.
05

Detailed Product Gallery

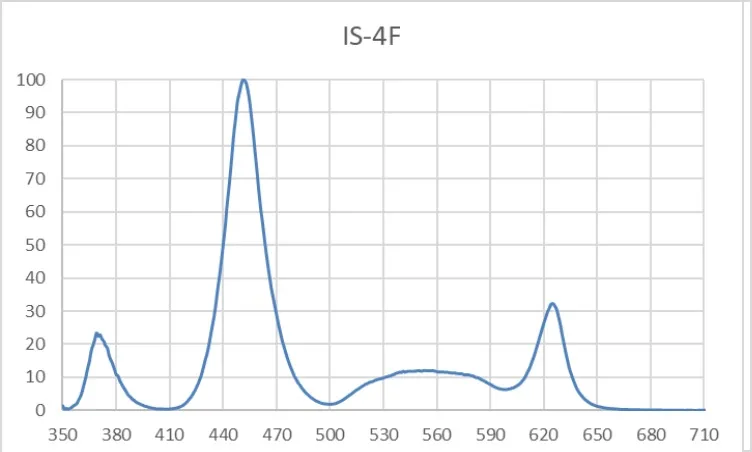

Component 1

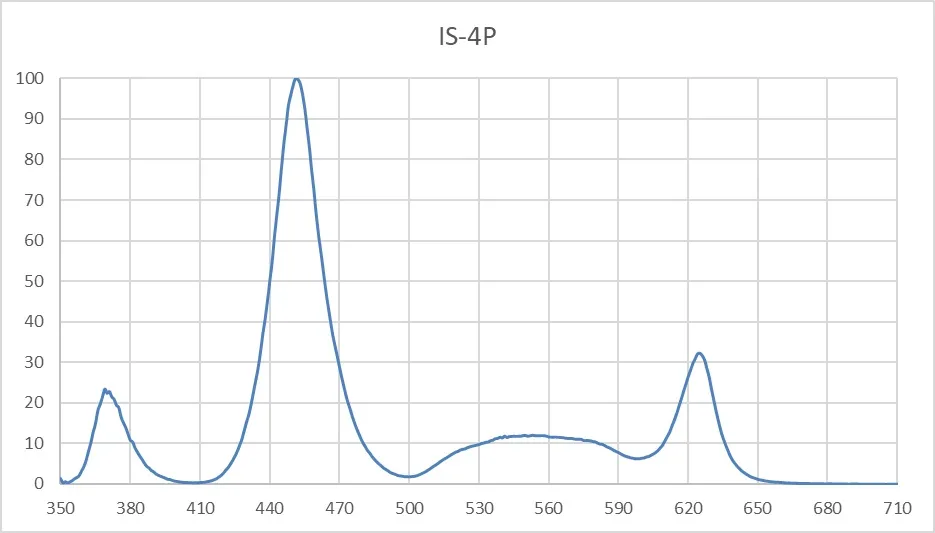

Component 2

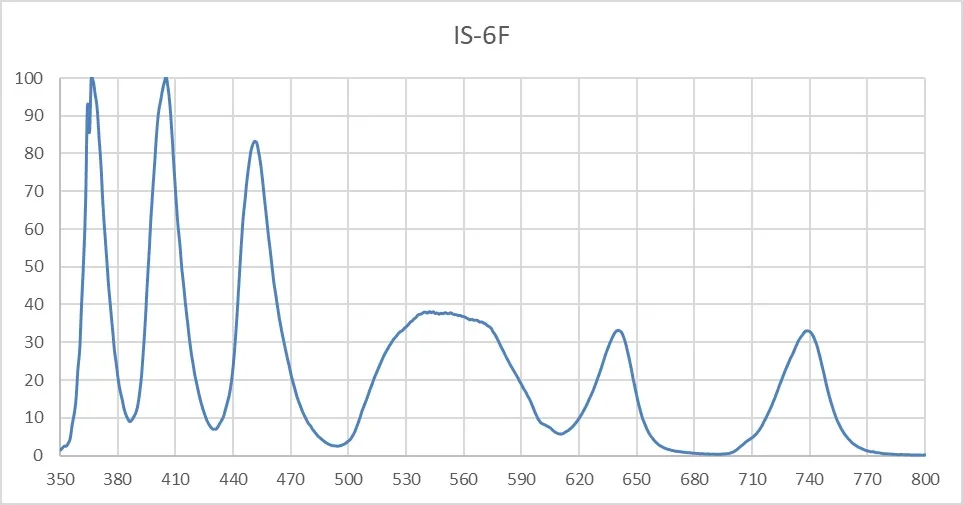

Component 3

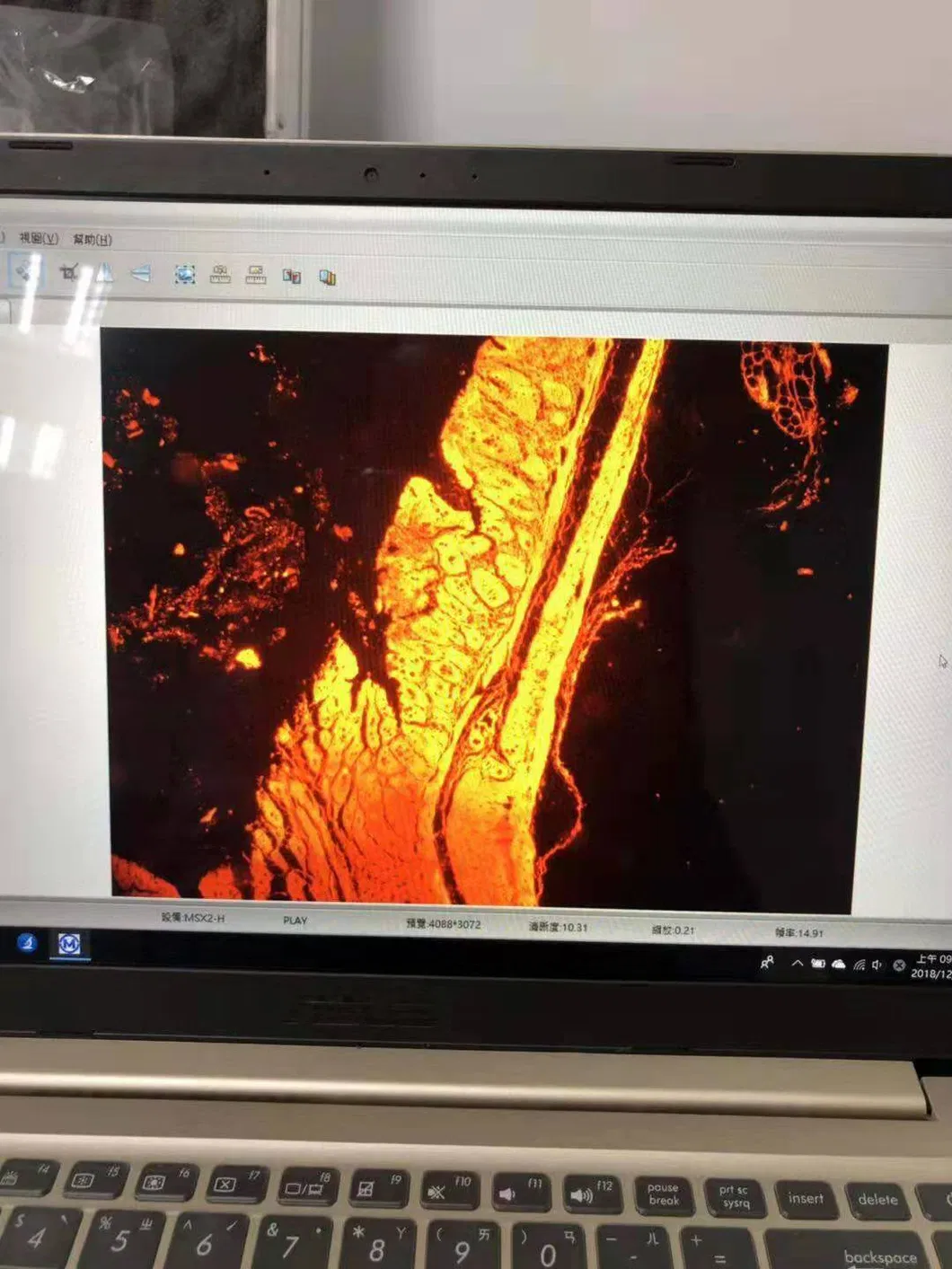

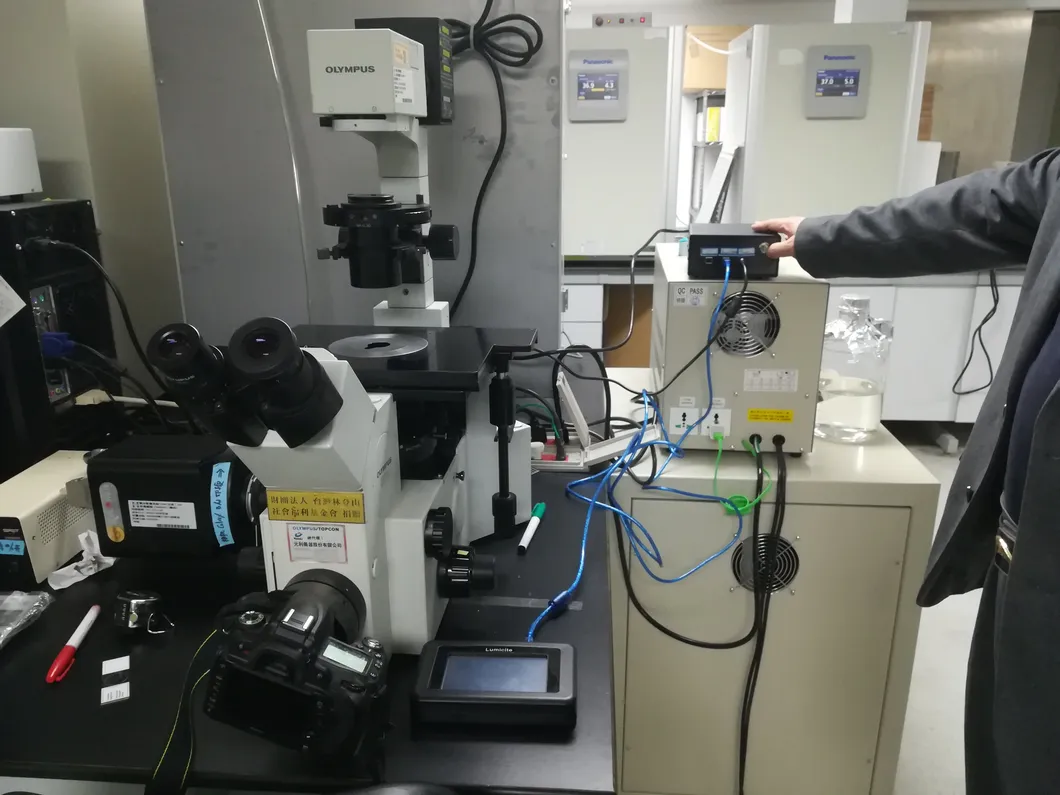

Usage view 1
Usage view 2
Usage view 3

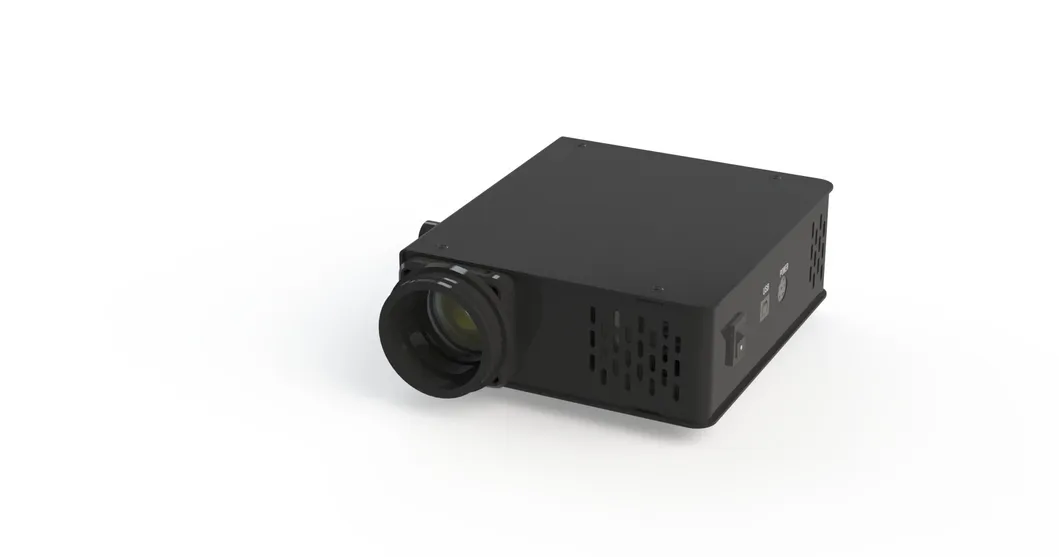

Interface view
Dimensions

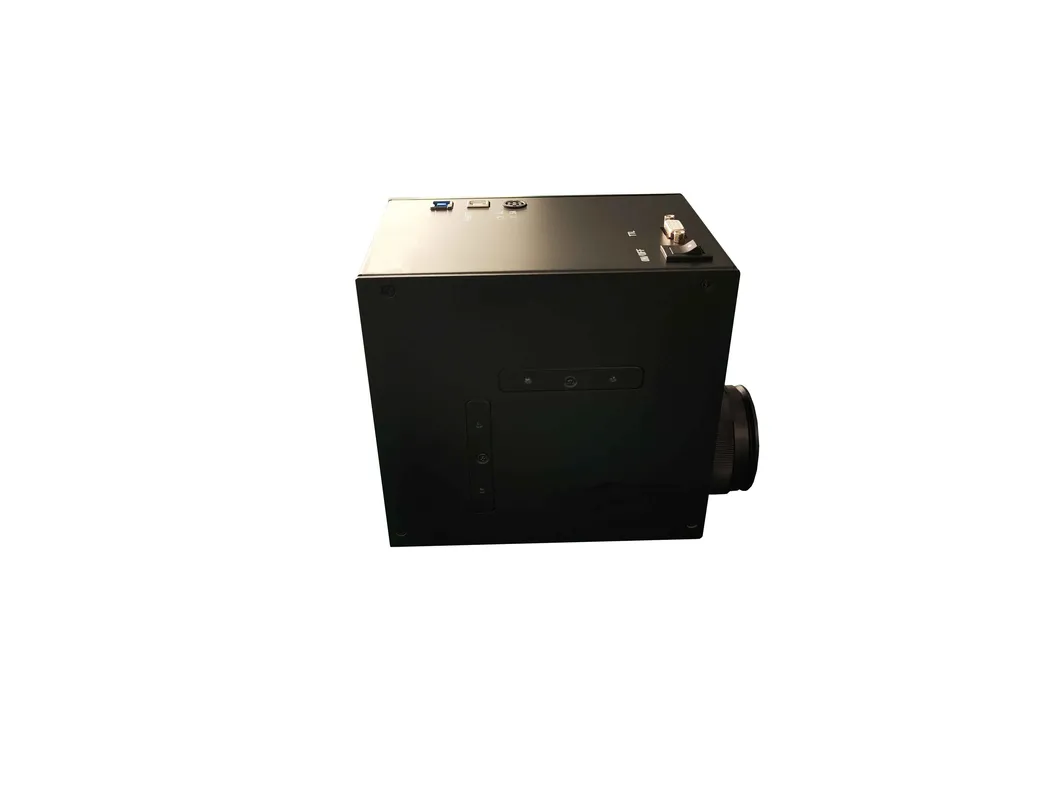

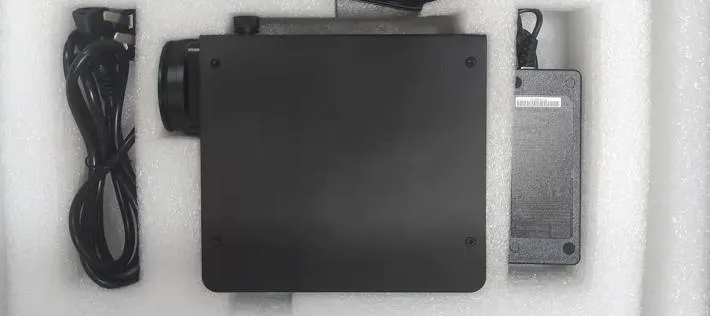

Package view
FAQ

Frequently Asked Questions

What is the lifespan of the LED illuminator?
The LED bulbs are designed for high durability, offering a lifespan between 30,000 and 50,000 hours, which is much longer than traditional mercury arc lamps.
Does the system require a warm-up period?
No, one of the primary advantages of this LED system is the instant ON/OFF capability. No warm-up or cool-down cycles are required.
Which fluorescence dyes are compatible with this system?
The system is optimized for common fluorescence bands including DAPI, FITC/GFP, Texas Red, and Cy3, covering a wavelength range of 350-780nm.
How is the light intensity controlled?
The light output is fully adjustable. It can be controlled manually via the touch pad or through a computer connection via RS-232 interface.
What are the power requirements?
The device features a universal external power supply compatible with 110-240V input at 50/60Hz, making it suitable for global use.
Is this system compatible with my current microscope?
The illuminator is designed for easy installation and is compatible with most standard biological fluorescence microscopes.
