Basic Specifications
Principle
Infinity Optical System
Light Source
3W LED / 5W LED Fluorescence
Mechanical Stage
145mmx140mm, Two Slide Holder
Objectives
4X/10X/40X(S)/100X(Oil)(S)
Product Description

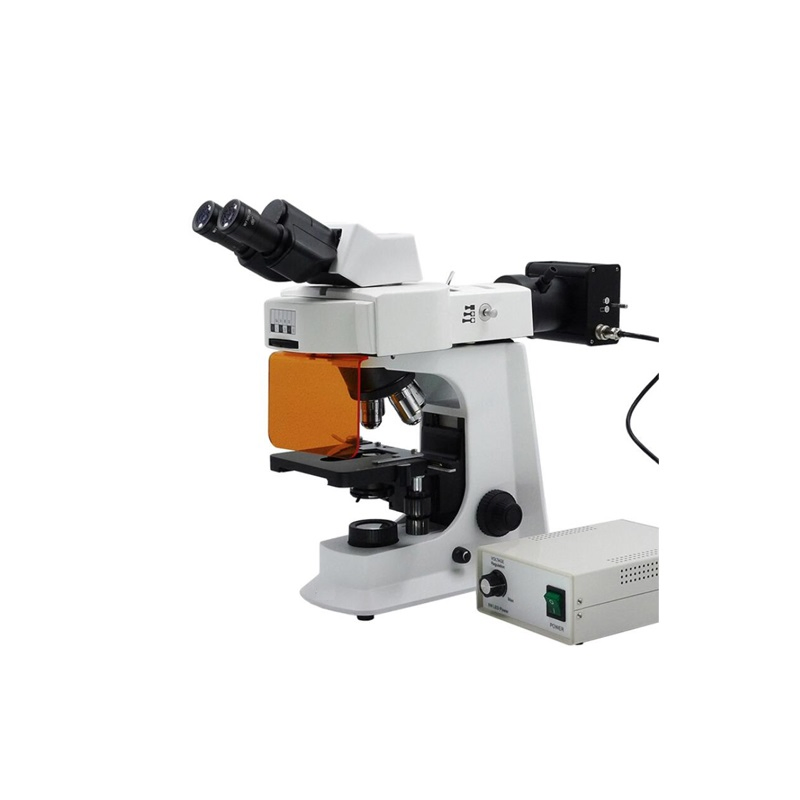

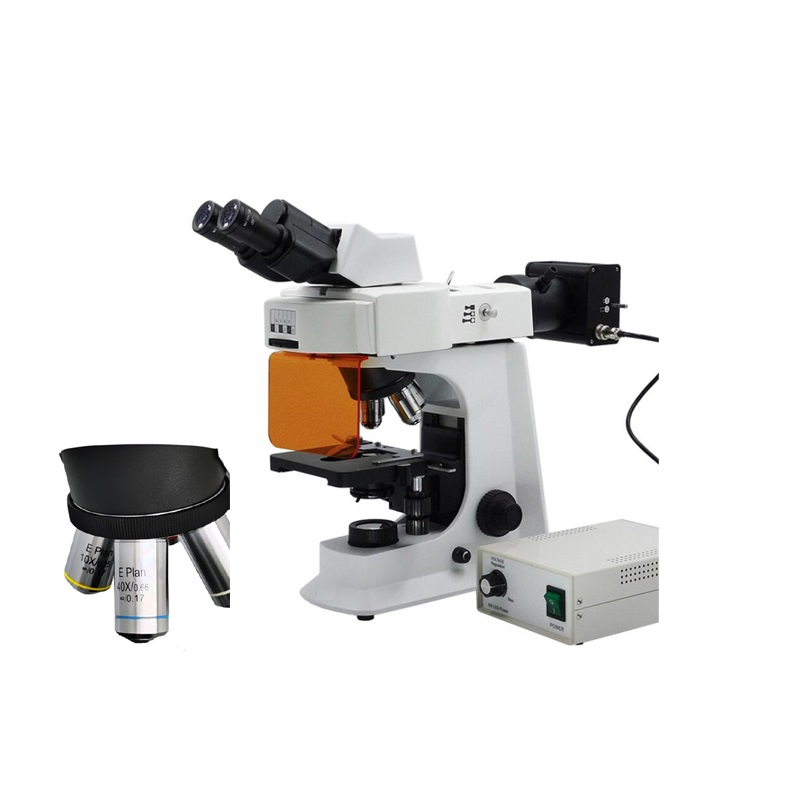

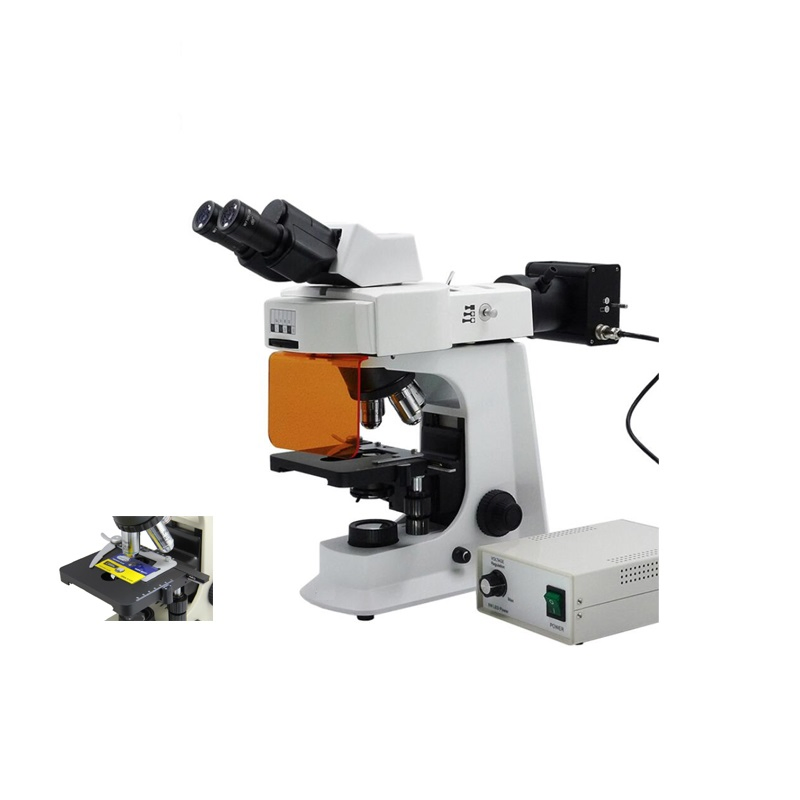

Smart-FL2LED Fluorescence Microscope
◈

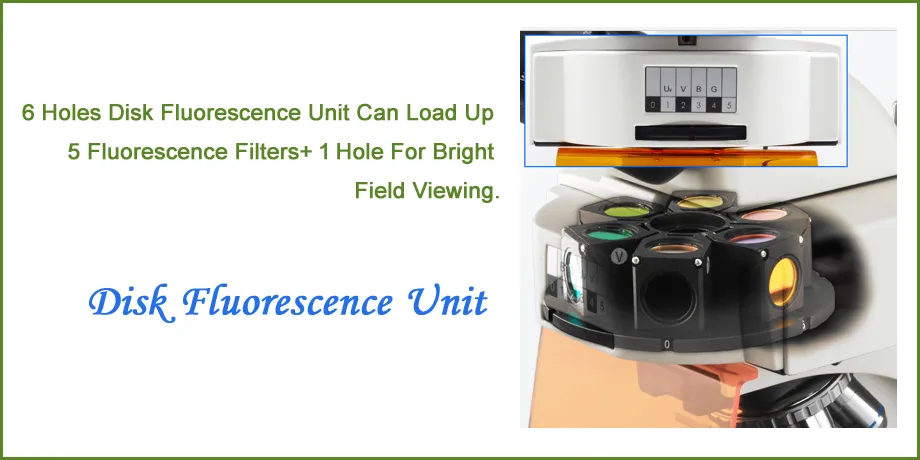

Six Holes Fluorescent Unit can hold up to 5 Fluorescent Filter + Bright Field View.
◈
5W LED Fluorescent Light Source for observations in Pathology and Clinical Lab use.
◈

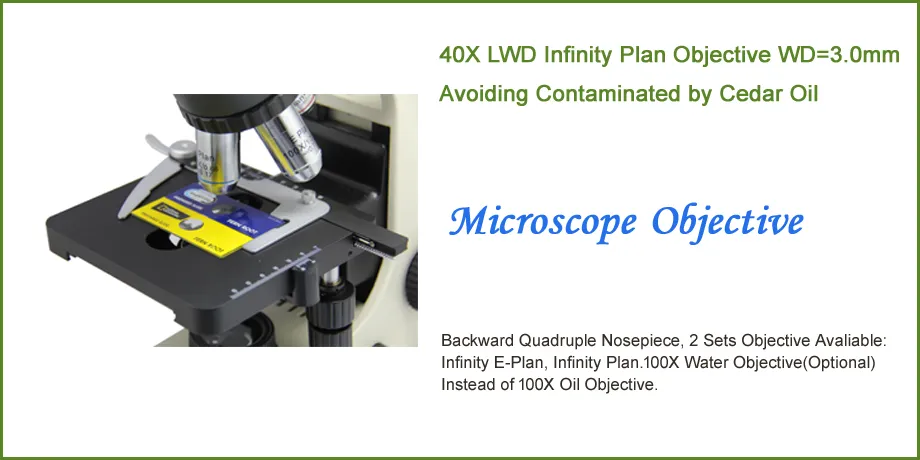

Creative 100x Water Objective instead of 100x Oil Objective for easy use without messy oils.
◈
High rigidity body structure design supplies high stability and easy handling.
Technical Specifications
| Items |
Smart-FLED Fluorescent Microscope Details |
-B2 / -T2 |
-B4 / -T4 |
| Head |
Seidentopf Head Inclined 30°, Rotatable 360°, Interpupillary 48-75mm |
Standard |
Standard |
| Eyepiece |
WF10X/20mm (High Eyepoint) |
Standard |
Standard |
| Nosepiece |
Quadruple, Backward |
Standard |
Standard |
| Objectives |
Infinity E-Plan 4x, 10x, 40x, 100x |
Standard |
Standard |
| Stage |
Mechanical Stage Size: 145mm×140mm, Travel: 76mmX52mm |
Standard |
Standard |
| Focusing |
Coaxial Coarse & Fine Focusing, 2µm/Division |
Standard |
Standard |
| Fluorescence |

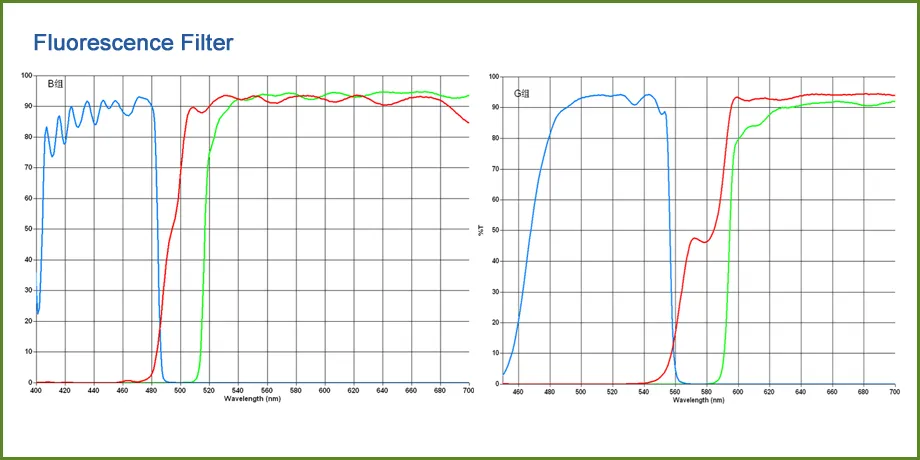

6 Holes Disc Unit, 5W LED Lamp, B/G Filters |
B,G Set |
B,G,U,UV Set |

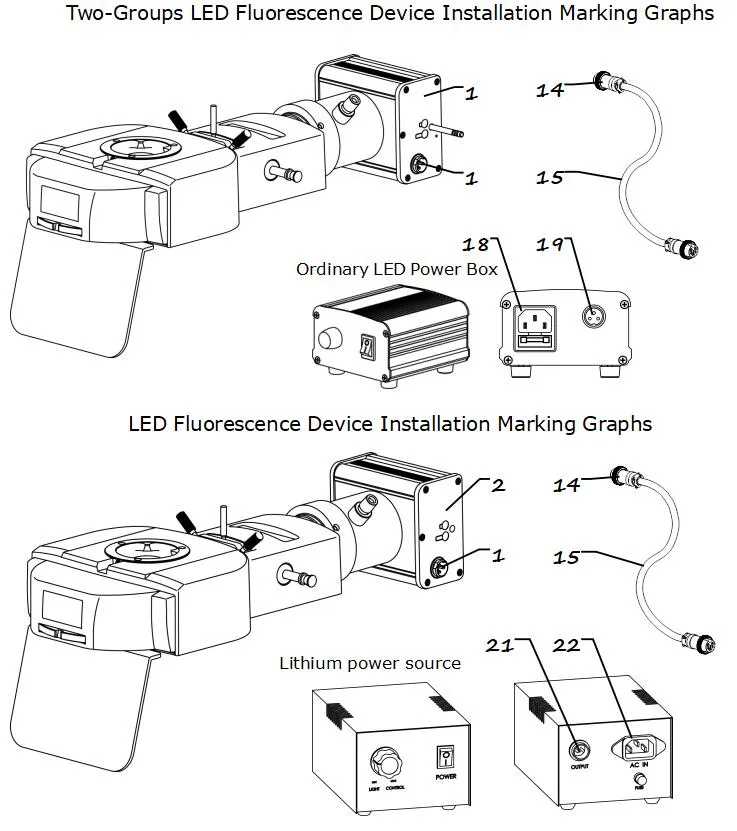

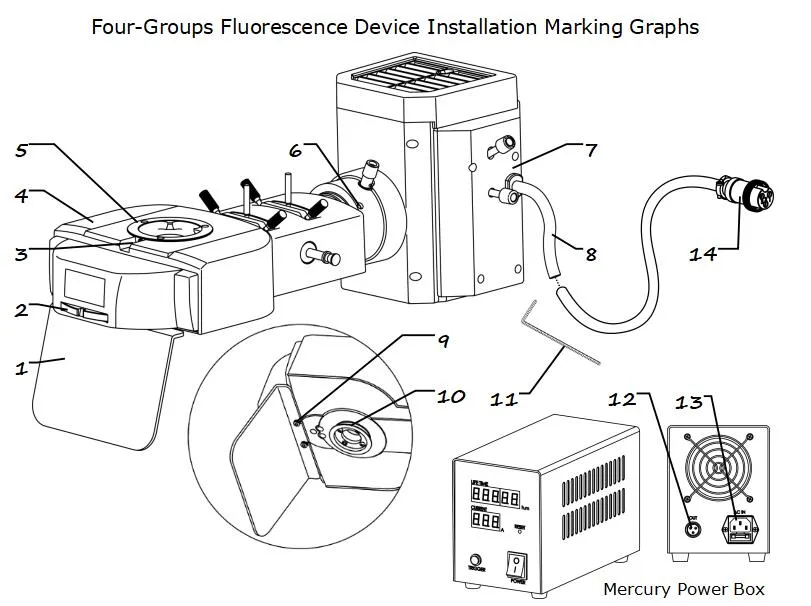

Installation Instructions
- Remove all parts from the package and place them on a clean, stable bench.
- Install the microscope main body according to the provided structural guidance.
- Connect the lamp power line to the appropriate power sockets.
- Joint the observing tube with the bayonet mount and lock it securely with the wrench.
- Connect the fluorescence power box tube connectors and fix with locking screws.
- Link the main body connector with the bayonet and fasten with screws.
- Install the protective plate for the fluorescence device and tighten using the wrench.
Maintenance & After-Sales
✔
Maintenance: Use a blow ball for dust. For oil/fingerprints, clean gently with absorbent cotton dipped in an ethanol-ether mixture (1:4).
✔
Warranty: 3-year warranty from delivery date with a 10-year expected service life.
✔
Defect Support: During the warranty, non-human damaged parts are replaced free of charge, including shipping.
✔
Technical Support: Lifelong online technical support via email or video call.
Frequently Asked Questions
Q1: How do I know which model is suitable for my application?
Please provide your specimen type, required specifications, and current production process. Our engineers can provide a proofing evaluation based on your needs.
Q2: What support is available if I don't know how to operate the microscope?
We provide comprehensive teaching videos for both installation and operation, along with a detailed English manual and online engineer support.
Q3: What is the warranty policy if something goes wrong?
We guarantee quality for 36 months. Non-man-made damaged parts are replaced and sent promptly. Lifelong online support is provided even after the warranty expires.
Q4: Can the product be customized?
Yes, we are dedicated to combining our current manufacturing abilities to offer customized applications for specific professional needs.
Q5: What is the typical lead time for an order?
For standard models, lead time is generally 2-7 days after order confirmation. Customized products may require additional time.
Q6: Is the packaging safe for international transportation?
Yes, our packaging is designed to withstand all damage factors. We use experienced shipping agents and have successfully exported to over 80 countries.
