Biobase Fully Automatic Chemiluminescence Imaging System Auto Gel Imaging System for Lab
Biobase Fully Automatic Chemiluminescence Imaging System Auto Gel Imaging System for Lab
Biobase Fully Automatic Chemiluminescence Imaging System Auto Gel Imaging System for Lab
Biobase Fully Automatic Chemiluminescence Imaging System Auto Gel Imaging System for Lab
Biobase Fully Automatic Chemiluminescence Imaging System Auto Gel Imaging System for Lab
1 / 5
Biobase Fully Automatic Chemiluminescence Imaging System Auto Gel Imaging System for Lab
Biobase Fully Automatic Chemiluminescence Imaging System Auto Gel Imaging System for Lab
Biobase Fully Automatic Chemiluminescence Imaging System Auto Gel Imaging System for Lab
Biobase Fully Automatic Chemiluminescence Imaging System Auto Gel Imaging System for Lab
Biobase Fully Automatic Chemiluminescence Imaging System Auto Gel Imaging System for Lab

Biobase Fully Automatic Chemiluminescence Imaging System Auto Gel Imaging System for Lab

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview
Model NO.
BK-ACG600
Product Name
Automatic Chemiluminescence Imaging System
Camera Resolution
6.0MP
Cooling Temperature
-65℃
Photosensitive Efficiency
75%
Pixel Size
4.54*4.54um
Exposure Time
1ms-120min
Pixel Density
16 Bits (0-65535)
OD
4.8od
UV Transmission
LED 312nm
Origin
China
Production Capacity
1000pieces/Year
Product Description

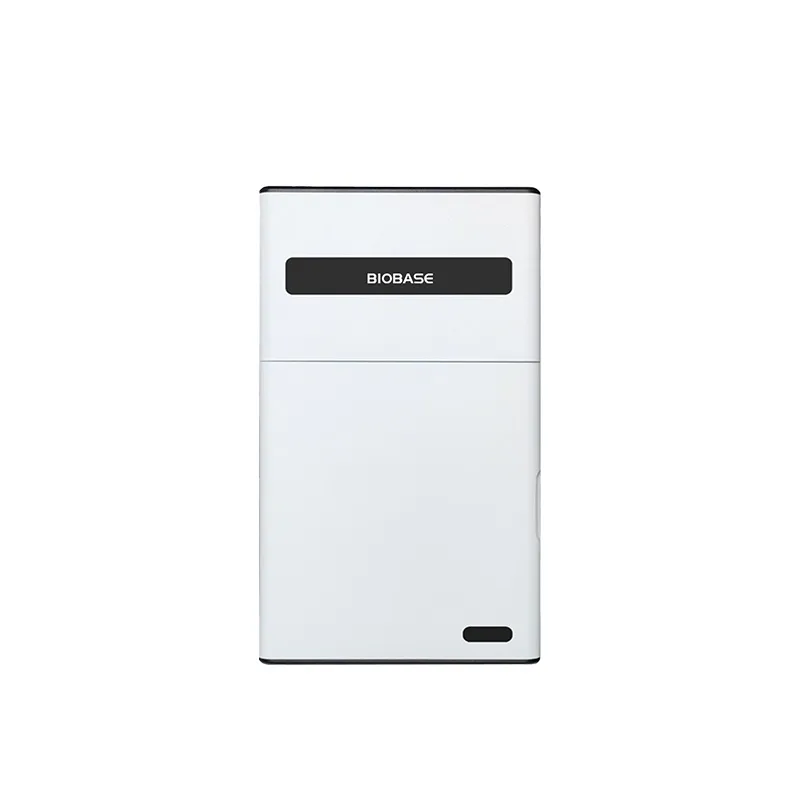

Automatic Chemiluminescence Imaging System

Automatic Chemiluminescence Imaging System
✓ Fully automatic control of the lens and light source
✓ Precise automatic exposure in calculate, no need to repeat calculation exposure time
✓ One button shooting, marker and chemiluminescence image automatic stacking
✓ Cryogenic scientific research ultrasensitive CCD camera, wide aperture Lens
Product Parameters
Model BK-ACG600 BK-ACG900
Camera Resolution6.0MP9.1MP
Cooling Temperature-65ºC
Photosensitive Efficiency>75%>79%
Pixel Size4.54*4.54um
Exposure Time1ms-120min
Pixel Density16 Bits (0-65535)
OD≥4.8OD
LensStandard: F=0.95, 25mm; optional: F=0.8, 25mm
UV TransmissionLED 312nm, optional 470nm transmitted blue light
White Light ReflectionLED reflection (cold light)
Shooting Area16×14cm
Packing Size490*515*845mm
Gross Weight40kg
Company Profile & Product Line
Company Overview
Product Line 1
Product Line 2
Service Support
Frequently Asked Questions
Q1: What is the primary use of the Chemiluminescence Imaging System? A1: It is designed for high-sensitivity detection and documentation of chemiluminescence and fluorescence in laboratory research, such as Western blotting and gel analysis.
Q2: How does the cooling temperature benefit my results? A2: The -65ºC cooling temperature significantly reduces dark current noise of the CCD camera, allowing for longer exposure times and detection of very weak signals.
Q3: Does the system support automatic exposure? A3: Yes, it features precise automatic exposure calculation, eliminating the need for manual trial and error to find the optimal exposure time.
Q4: Can I capture both marker and chemiluminescence images together? A4: Yes, the system supports one-button shooting with automatic stacking of the marker and chemiluminescence images for accurate alignment.
Q5: What are the available lens options? A5: The standard setup includes an F=0.95 25mm lens, with an optional ultra-wide aperture F=0.8 25mm lens for even higher sensitivity.
Q6: Is the system compatible with different power supplies? A6: The standard configuration is 220V 50Hz, but a 110V 60Hz version is available with an internal transformer for international use.
