Basic Specifications
Lamp Body Material
Aluminium + Tempered Glass
LED Chips
Lumileds 3030SMD
Light Efficiency
150LM/W±5%
Lifespan
100,000 hours (L80B10)
Product Description & Features

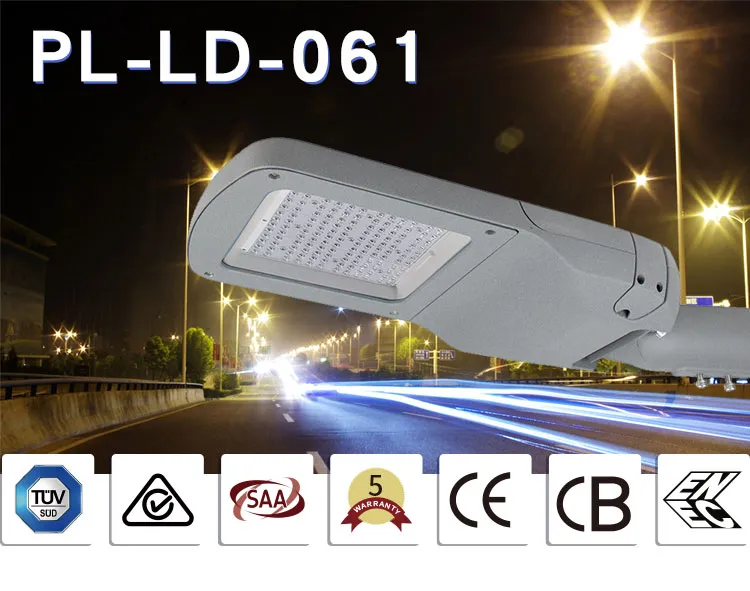

High-quality aluminum waterproof IP66 outdoor 60w LED street light designed for superior thermal management and durability.
- Adopting imported lumileds chips 3030smd as light source. Energy-saving and long life.
- 5mm toughened transparent glass, high temperature resisting, transmittance as high as 92%.
- Aluminium alloy radiator with high thermal coefficient and oxidation technology.
- Constant current supply for high stability and security.
- Energy saving up to 80% compared to traditional lighting.
- Die-cast aluminum housing with professional painting coating.
- Applicable for expressways, downtown roads, bridges, ports, and factories.

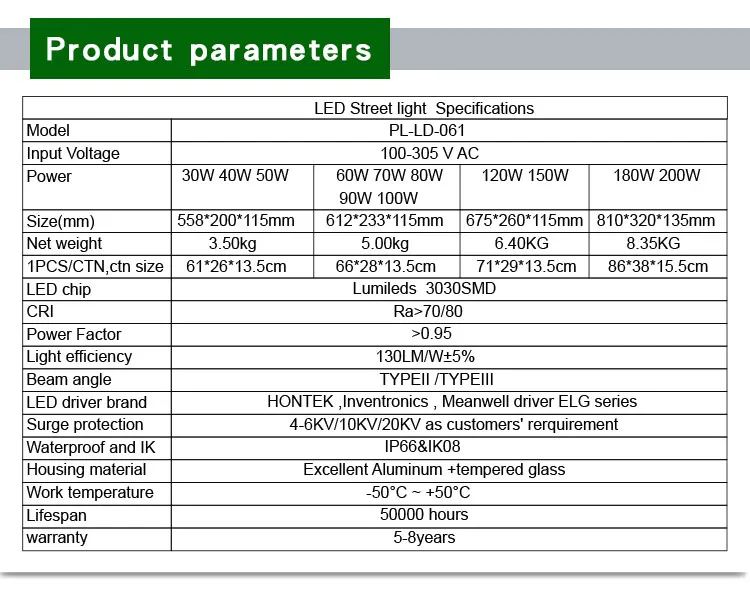

Technical Parameters
| Parameter | Details |
| Model | PL-LD-061 |
| Input Voltage | DC12V/24V, 100-305 V AC |
| Power Options | 30W / 40W / 50W / 60W / 70W / 80W / 90W / 100W / 120W / 150W / 180W / 200W |
| CRI | Ra > 70/80 |
| Power Factor | > 0.95 |
| Beam Angle | TYPE II / TYPE III / TYPE IV |
| Surge Protection | 4-6KV / 10KV / 20KV requirement |
| Pole Diameter | 48mm / 52mm / 60mm / 76mm |
| Protection | IP66 & IK09 |
| Warranty | 5 - 7 Years |

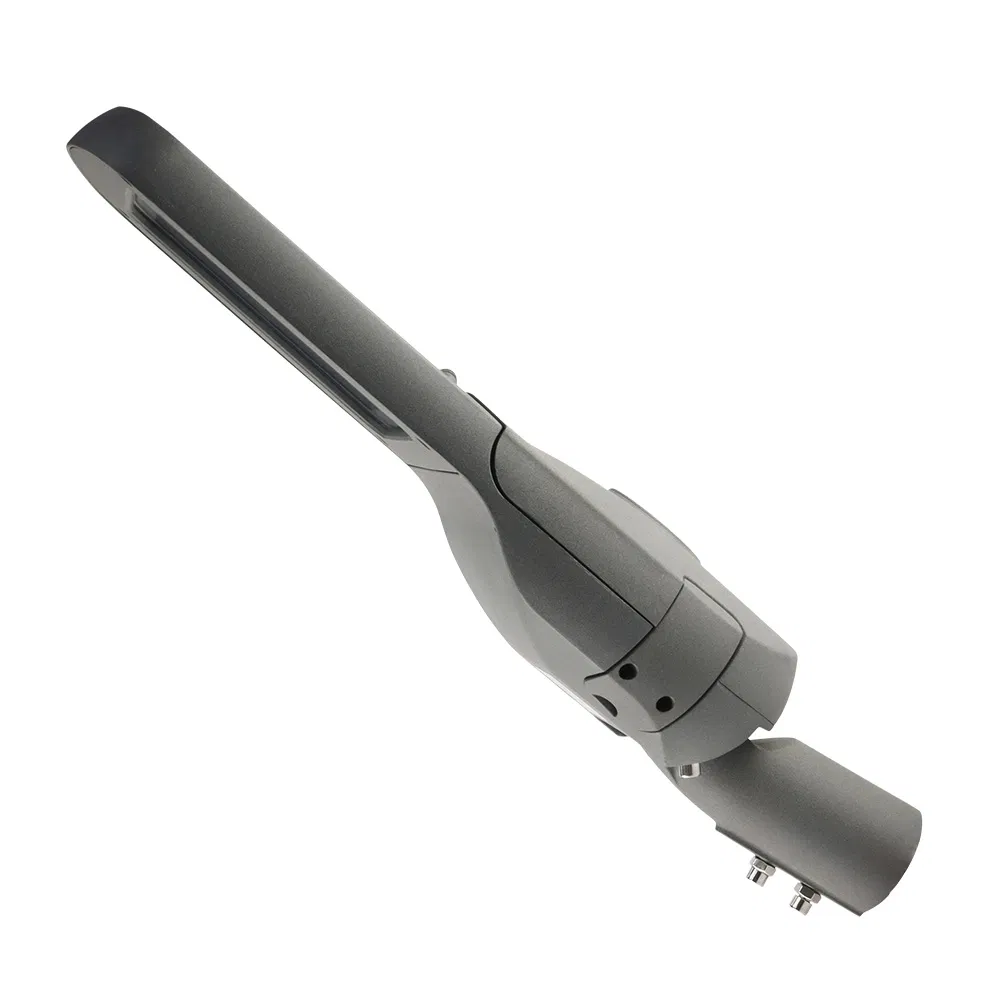

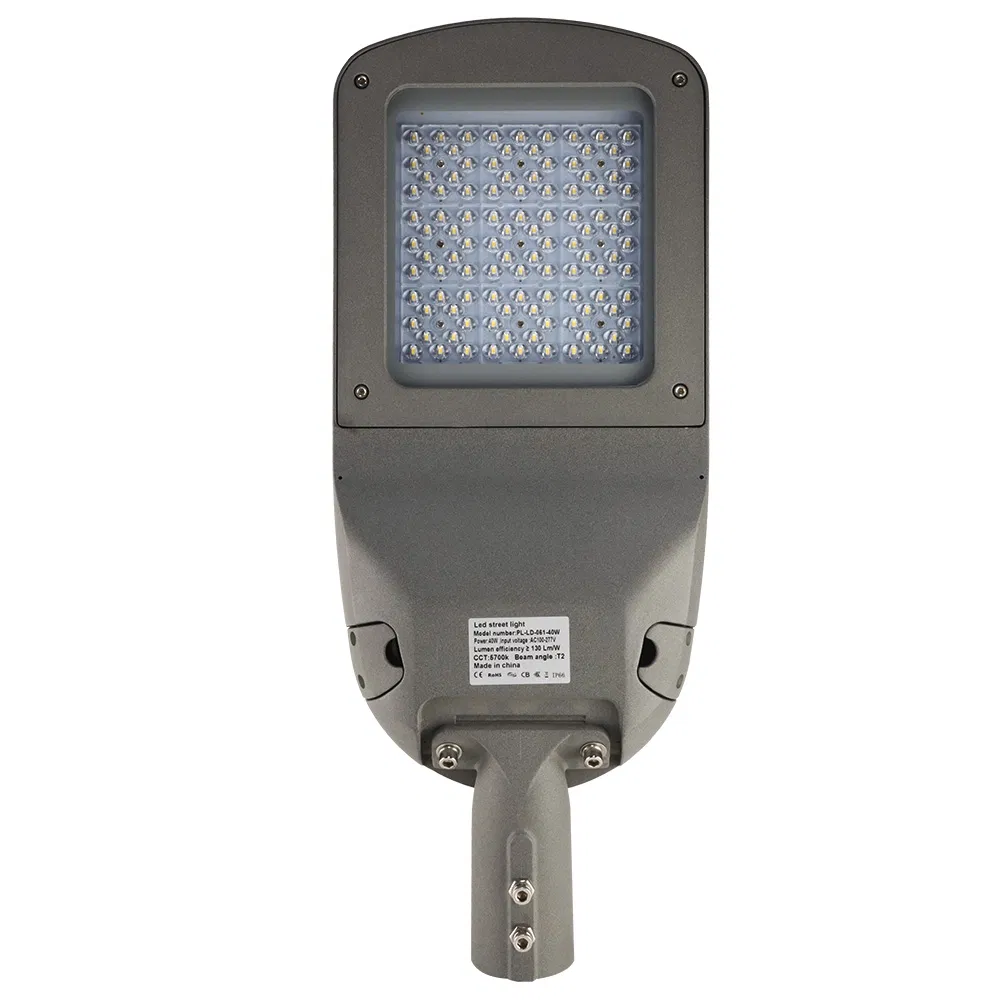

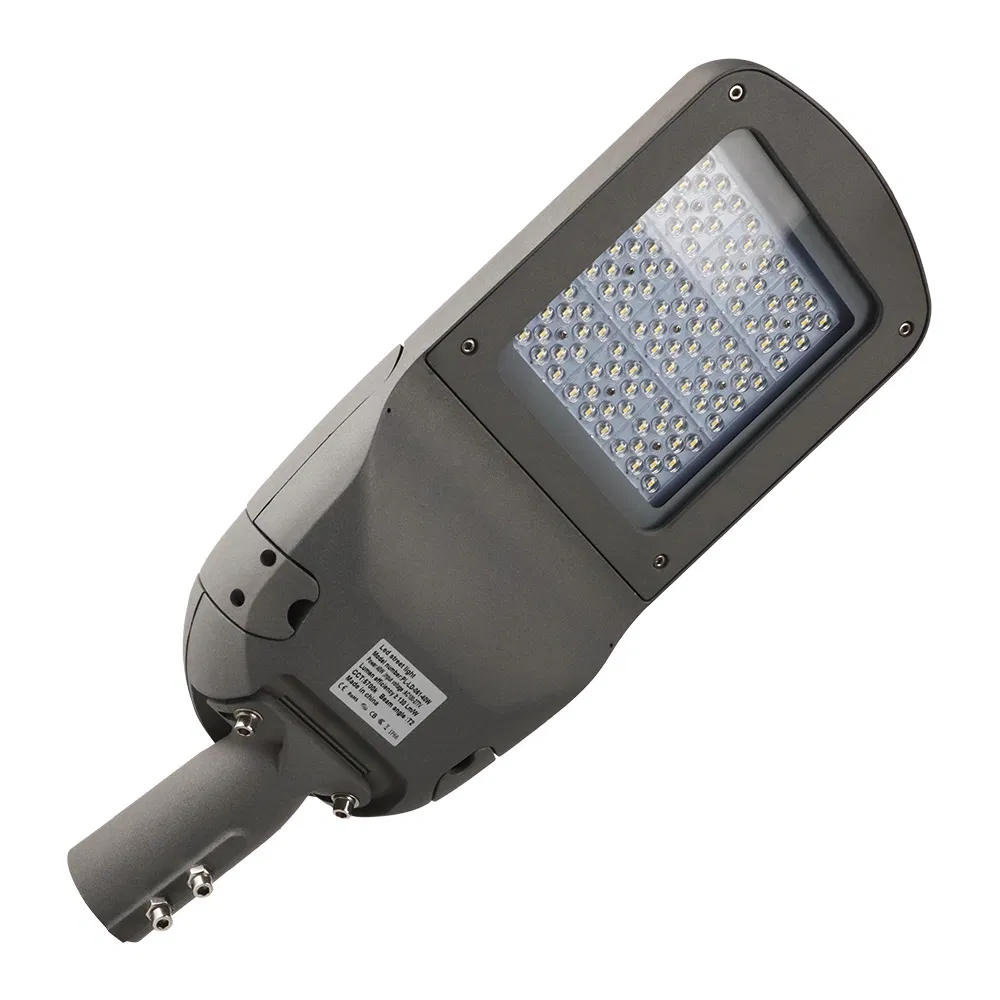

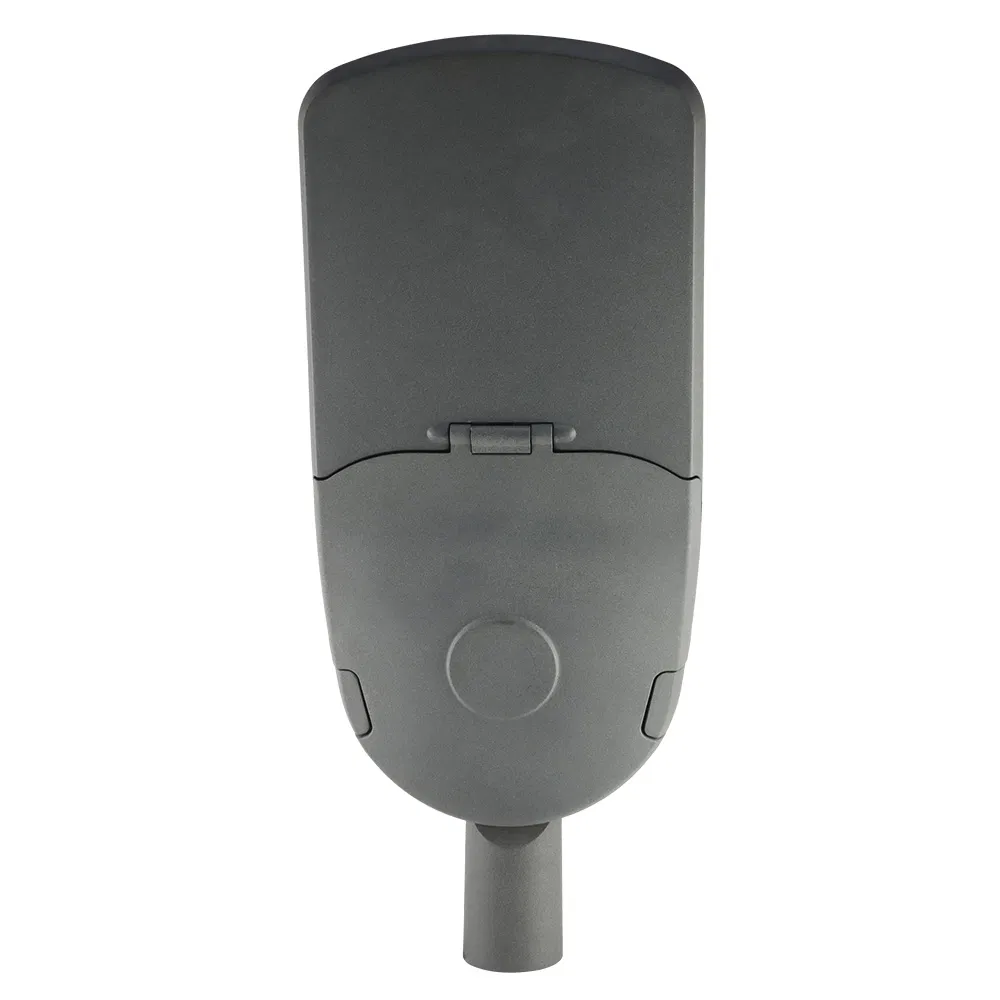

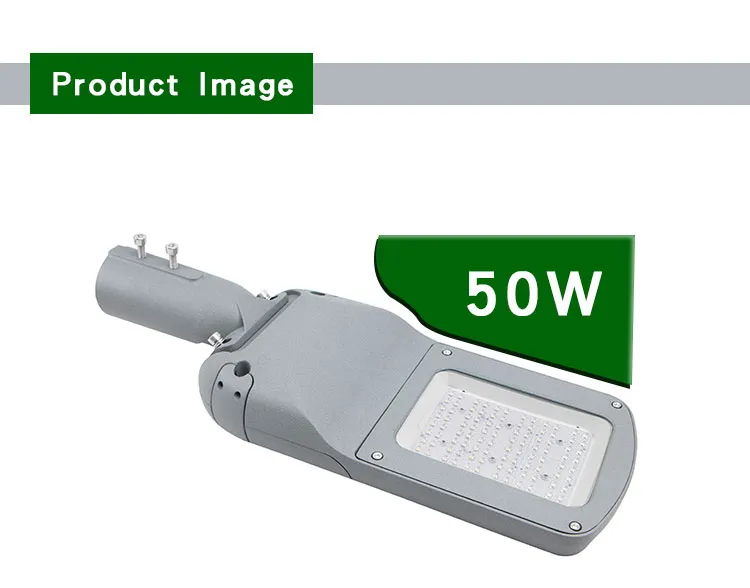

Product Gallery
Frequently Asked Questions
Do LED lights really have a 50,000-hour lifespan?
A 50,000-hour lifespan is a theoretical value from lab tests. In actual working environments, the lifespan is typically around 30,000 hours, though it can reach 50,000 hours with premium materials.
Why do different suppliers have different brightness for the same power?
Brightness depends on the chip quality and version. Even with the same chip, different brightness versions exist. It is also important to distinguish between raw LED brightness and the final fixture output.
What is color temperature (CCT)?
CCT is measured in Kelvin. Lower color temperatures (warm) are used for relaxation in public areas, while higher color temperatures (cool) enhance concentration in industrial or office settings.
What is CRI?
CRI (Color Rendering Index) measures how accurately a light source reveals the true colors of objects. A higher CRI typically involves higher manufacturing costs.
What is PF and efficiency?
PF (Power Factor) and efficiency represent the electrical performance of the LED driver. Higher PF and efficiency values indicate better quality and energy utilization.
Are these lights suitable for coastal areas?
Yes, with an IP66 rating and die-cast aluminum housing with oxidation technology, these lights are designed to resist corrosion and harsh outdoor weather conditions.
